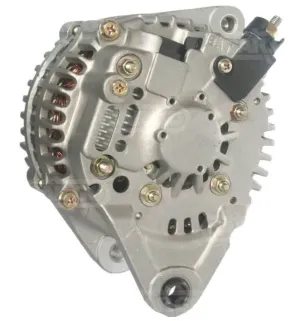

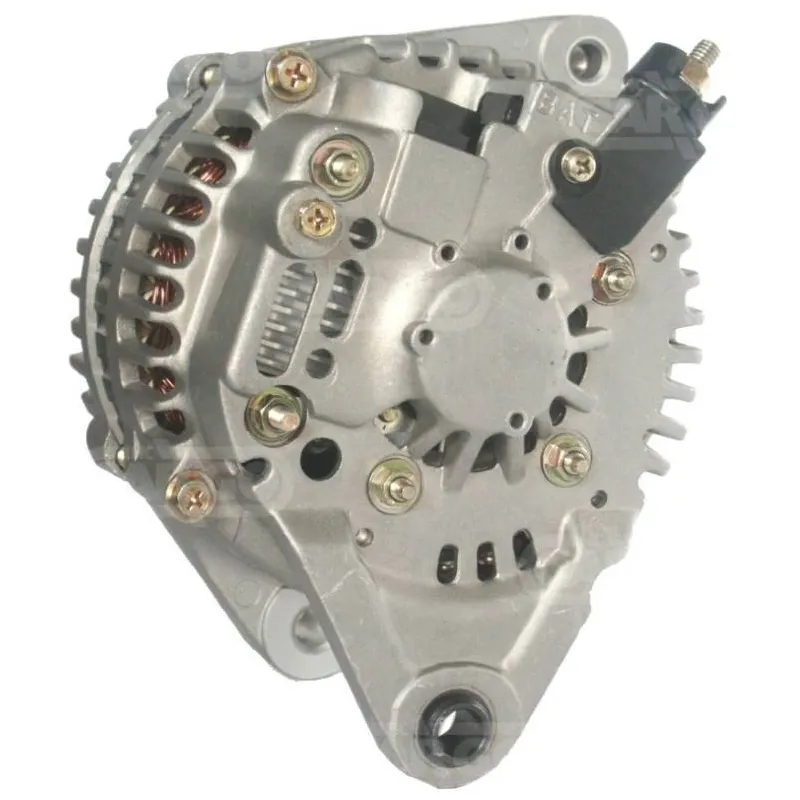

Alternator 14 Volts 80 A, Delco 10464158, Nissan 23100-01400, 23100-0Z400, Valeo 436527, Mitsubishi A002T13894

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     80

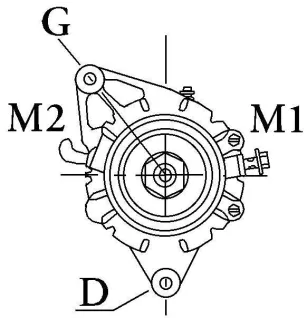

Physical Specifications
D     Hole Diameter     10.60
G     Lug Hole Diameter     6.75
B     Arm Width     25.45
E     Tensioner Angle     53
C     Bracket Distance     81.15
H     Pulley Dia. 65.00
A     Dist. pulley     37.85
i     Pulley grooves     6
j     Radius     80.35
j     Radius 2     89.90
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL07
R     Total length mm     159.00

More information
Fan     If
Pulley     Serpentine pulley
Regulator type     Ir
Vacuum pump   Without

REPLACES THE FOLLOWING PART NUMBERS:

Waiglobal: 1-1120-01HI, 1-1120-01MI, 1-1427-01, 1-1427-01HI, 1-1427-01MI, 1-2193-01HI, 1-2193-01HI-9, 1-2413-01HI.
Delco: 10464158, DRA3203, DRA3895.
Cargo: 111778, 113373.
Wps: 13327N, 13474N, 13760N.
Nissan: 23100-01400, 23100-0Z400, 23100-1E400, 23100-1E410, 23100-30R60, 23100-47R10, 23100-47R11, 23100-64J00, 23100-64J01, 23100-64J02, 23100-64J03, 23100-64J04, 23100-64J05, 23100-64J10, 23100-64J11, 23100-64J12, 23100-64J13, 23100-64J15, 23100-64J16, 23100-9E000, 2310047R10.
Valeo: 436527, 437784, VA331.
Mitsubishi: A002T13894, A002T34692A, A002T34692B, A002T35791, A002T35791A, A2T13894, A2T34692A, A2T34692B, A2T35791, A2T35791A, A2T35792A.
Krauf: ALH1292.
Motorherz: ALH1292WA.
HC-Parts: JA1292IR, JA762IR.
Lucas: LEA0221, LRA00957, LRA01686.
Hitachi: LR1100-709, LR1100-709B, LR1100-709C, LR1100709B, LR180-719, LR180-725, LR180-725B, LR180-725C,
LR180-725E, LR180-736, LR180-736B, LR180-736C, LR180-737B, LR180-737C, LR180-738, LR180-738B, LR180736B.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

NISSAN 100 NX (B13) 2.0 GTI (1991-1994)
NISSAN AXXESS (M11) 2.4 i (1992-1994)
NISSAN AXXESS (M11) 2.4 i 4x4 (1992-1994)
NISSAN PRAIRIE PRO (M11) 2.4 i (1992-1994)
NISSAN PRAIRIE PRO (M11) 2.4 i 4x4 (1992-1994)
NISSAN PRIMERA Estate (W10) 2.0 i (1990-1998)
NISSAN PRIMERA Traveler (W10) 2.0 i (1990-1998)
NISSAN PULSAR V (N14) 2.0 GTI 16V (1990-1995)
NISSAN PULSAR V (N14) 2.0 GTI-R 4x4 (1990-1995)
NISSAN SUNNY III (N14) 2.0 GTI 16V (1990-1995)
NISSAN SUNNY III (N14) 2.0 GTI-R 4x4 (1990-1995)
