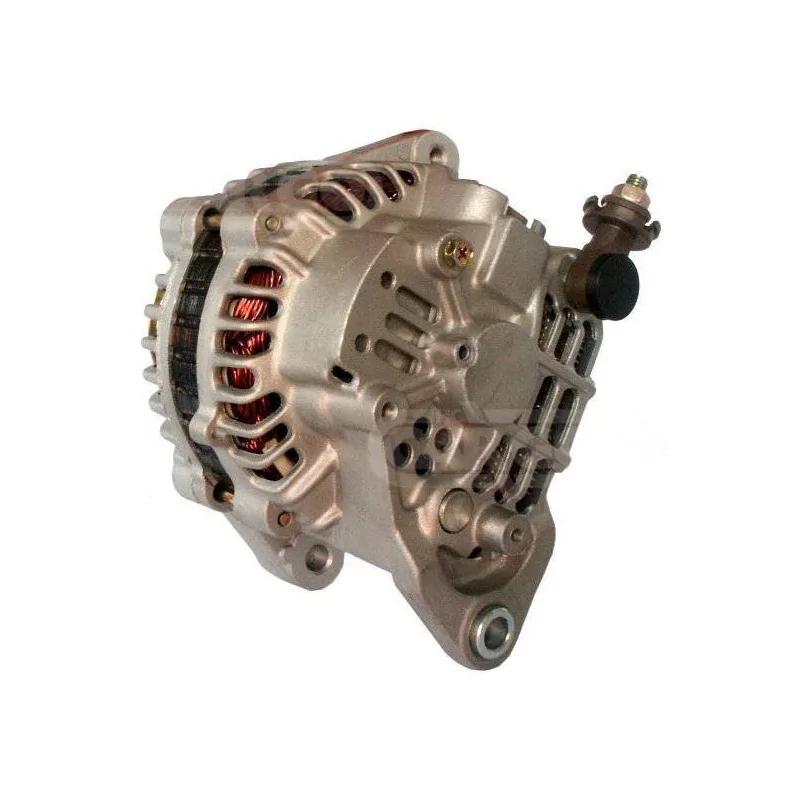

Alternator 14 Volts 80 A, Bosch 0986045641, Nissan 23100-0M800, Renault 5281051160, Delco DRA3896

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     80

Physical Specifications
D     Hole Diameter     10.50
G     Lug Hole Diameter     M8
B     Arm Width     25.00
C     Bracket Distance     80.00
H     Pulley Dia.     66.50
A     Pulley Distance pulley     38.50
i     Pulley grooves     6
j     Radius     84.00
j     Radius 2     93.00
k     Position B +     M8
n     Rotation     Cr
o     Regulator connector     PL07
R     Total length mm     166.00
Terminal type     S-L

More information
Fan     If
Pulley     Serpentine pulley
Regulator type   Ir
Vacuum Pump     Without

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0986045641, 0986JR0132.
Waiglobal: 1-2093-01HI, 1-2093-01MI.
Wps: 13723N.
Messmer: 210709.
Nissan: 23100-0M800, 23100-0M810, 23100-0M811, 23100-2J010, 23100-2J011, 23100-4B400, 23100-4M610, 23100-9F510.
Valeo: 437842, 600026.
Renault: 5281051160.
Magneti marelli: 944390511670.
Mando: A0002655197.
Mitsubishi: A002T82491, A002T82491A, A002T82491B, A002TA0491, A002TA4091, A002TA4091A, A002TA4092A, A002TA4092B, A002TB2491A, A002TB3691, A002TB3691KD, A2T82491, A2T82491A, A2T82491B, A2TA0491, A2TA4091, A2TA4091A, A2TA4092, A2TA4092A, A2TA4092B, A2TB2491A, A2TB3691, A2TB3691KD.
Krauf: ALH1287, ALM1287.
Motorherz: ALH1287RB, ALM1287RB, ALM1287WA.
Delco: DRA3896.
HC-Parts: JA1287IR.
Hitachi: LR180-741, LR180-741B, LR180-741C, LR180-741H.
Lucas: LRA01677.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

NISSAN ALMERA I Hatchback (N15) 2.0 GTi (1996-2000)
NISSAN PRIMERA (P11) 2.0 16V (1996-2001)
NISSAN PRIMERA (P11) 2.0 16V (1999-2001)
NISSAN PRIMERA Estate (W10) 2.0 i (1990-1998)
NISSAN PRIMERA Estate (WP11) 2.0 16V (1996-1999)
NISSAN PRIMERA Estate (WP11) 2.0 16V (1996-2001)
NISSAN PRIMERA Estate (WP11) 2.0 16V (1998-2001)
NISSAN PRIMERA Estate (WP11) 2.0 16V (1999-2001)
NISSAN PRIMERA Hatchback (P11) 2.0 16V (1996-2002)
NISSAN PRIMERA Hatchback (P11) 2.0 16V (1999-2002)
NISSAN PRIMERA Traveler (W10) 2.0 i (1990-1998)
NISSAN PRIMERA Traveler (WP11) 2.0 16V (1996-2001)
NISSAN PRIMERA Traveler (WP11) 2.0 16V (1998-2001)
NISSAN PRIMERA Traveler (WP11) 2.0 16V (1999-2001)
