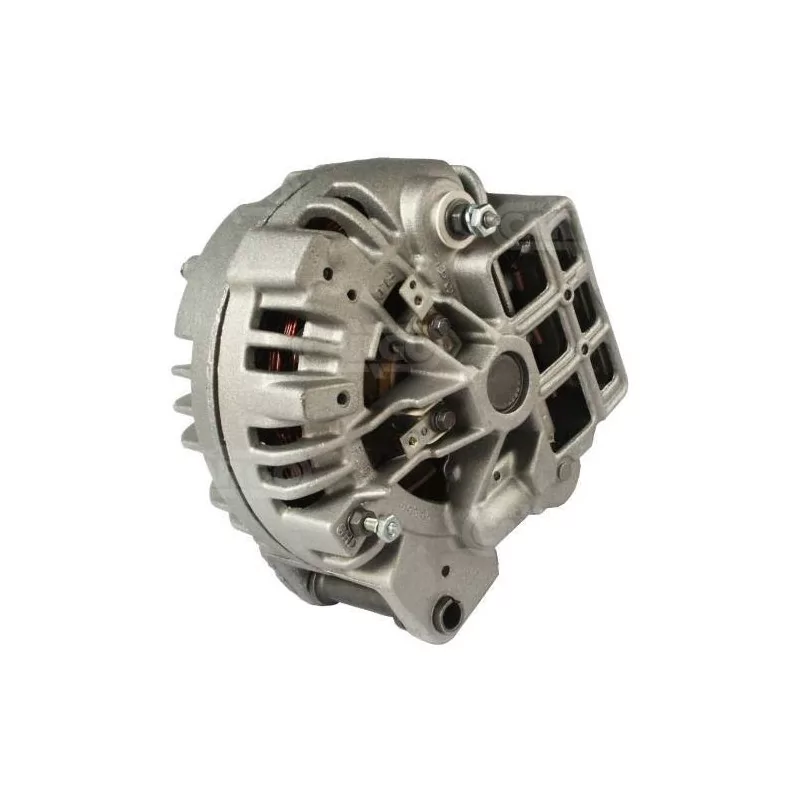

Alternator 14 Volts 78 A, Delco 10463292, Chrysler 5206971

SPECIFICATIONS:

Electrical Specifications

Voltage     14
Amp     78

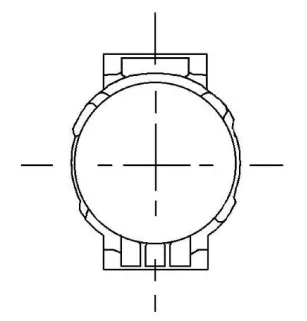

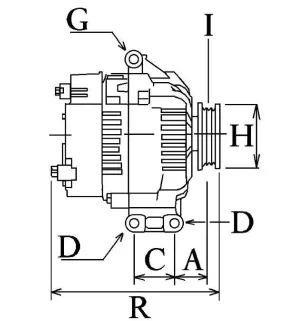

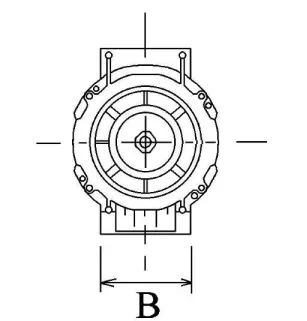

Physical Specifications

D     Hole Diameter     10.50
B     Arm Width     13.00
C     Bracket Distance     61.50
H     Pulley Dia.     70.00
A     Bracket Dist. pulley     32.00
i     Pulley grooves     1
j     Radius     95.00
k     Position B +     M6
o     Regulator connector     PL_NA
R     Total length mm     156.00

More information

Fan     If
Pulley     Pulley
Remarks     Place cover. Regulator: HC-131280.

REPLACES THE FOLLOWING PART NUMBERS:

Waiglobal: 1-1820-01CH, 1-1820-02CH, 1-1821-01CH, 1-1825-01CH, 1-1826-01CH, 1-1826-02CH, 1-2028-01CH.
Delco: 10463292, DRZ0135.
Cargo: 110513.
Chrysler: 5206971, 5206981, 5213053, 5213079, 5213540, 5213541, 5213762, 5213763, 5226135.
Wps: 7546R.
Krauf: ALF1005.
HC-Parts: UA949, UA956.
