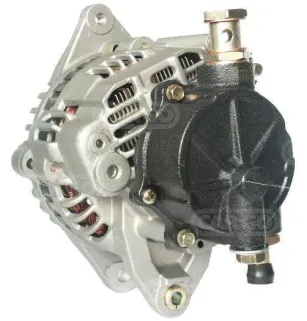

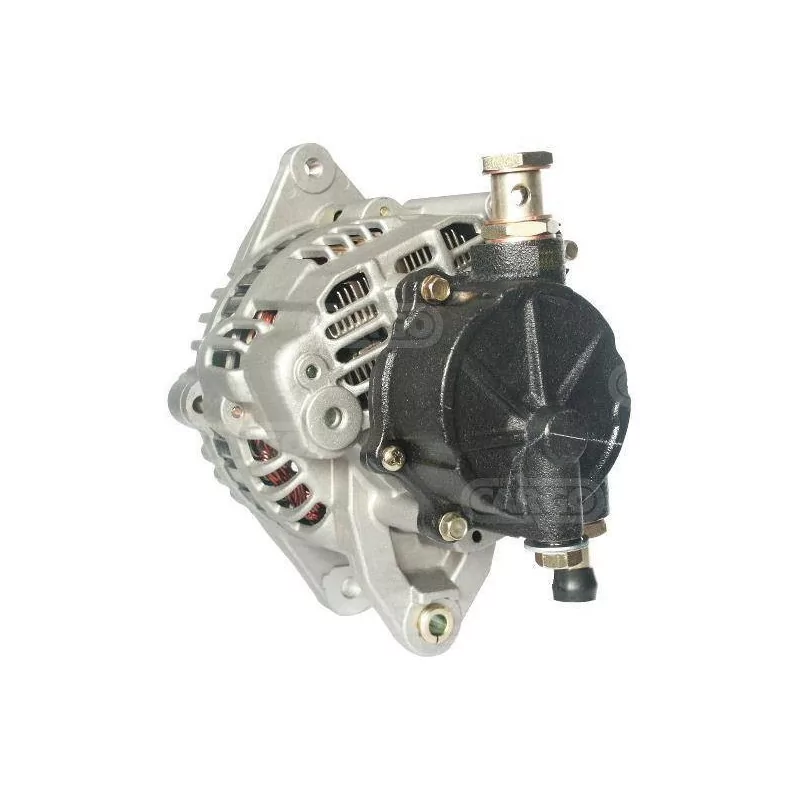

Alternator 14 Volts 75 A, Valeo 437781, Mitsubishi A002T38676, Krauf ALM1133, Lucas LRA01545

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     75

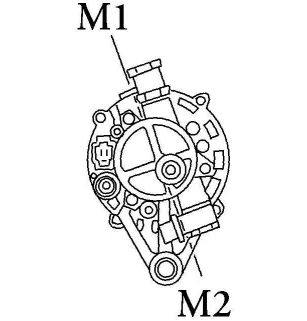

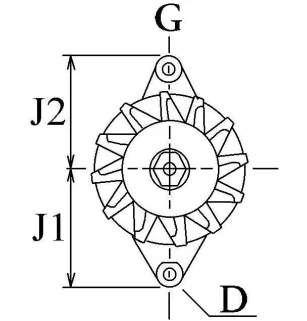

Physical Specifications
D     Hole Diameter     8.55
G     Lug Hole Diameter     M8
B     Arm Width     13.00
E     Tensioner Angle     2
C     Dist. Between Brackets     55.00
H     Pulley Dia.     79.00
A     Dist. pulley     51.00
i     Pulley grooves     1
j     Radius     90.00
j     Radius 2     92.00
k     Position B +     M8
n     Rotation     Cr
o     Regulator connector     PL07
R     Total length mm     217.00

More information
Fan     If
Pulley     Pulley
Regulator type     Ir
Vacuum pump     VP

REPLACES THE FOLLOWING PART NUMBERS:

Valeo: 437781.
Mitsubishi: A002T38676, A002TN0076, A002TN0076A, A002TN2476, A002TN2476A, A003T11278, A003T11278A, A2T38676, A2TN0076, A2TN0076A, A2TN2476, A2TN2476A, A3T11278, A3T11278A, MD192134, MD192136, MD309843, MD309844, MD344963.
Krauf: ALM1133.
Delco: DRA3375, DRA3375N.
HC-Parts: JA1133IR.
Lucas: LRA01545, LRA01614, LRA01706.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

MITSUBISHI CHARIOT (N3_W, N4_W) 2.0 TD (N38W) (1992-1998)
MITSUBISHI LANCER Mk V (CB/D_A) 2.0 Diesel (CB8A) (1992-1996)
MITSUBISHI LANCER V (CB/D_A) 2.0 Diesel (CB8A) (1992-1996)
MITSUBISHI RVR (N1_W, N2_W) 2.0 TD (N18W) (1992-1999)
MITSUBISHI SPACE RUNNER (N1_W, N2_W) 2.0 TD (N18W) (1992-1999)
MITSUBISHI SPACE WAGON (N3_W, N4_W) 2.0 TD (N38W) (1992-1998)
