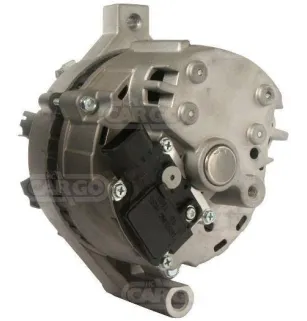

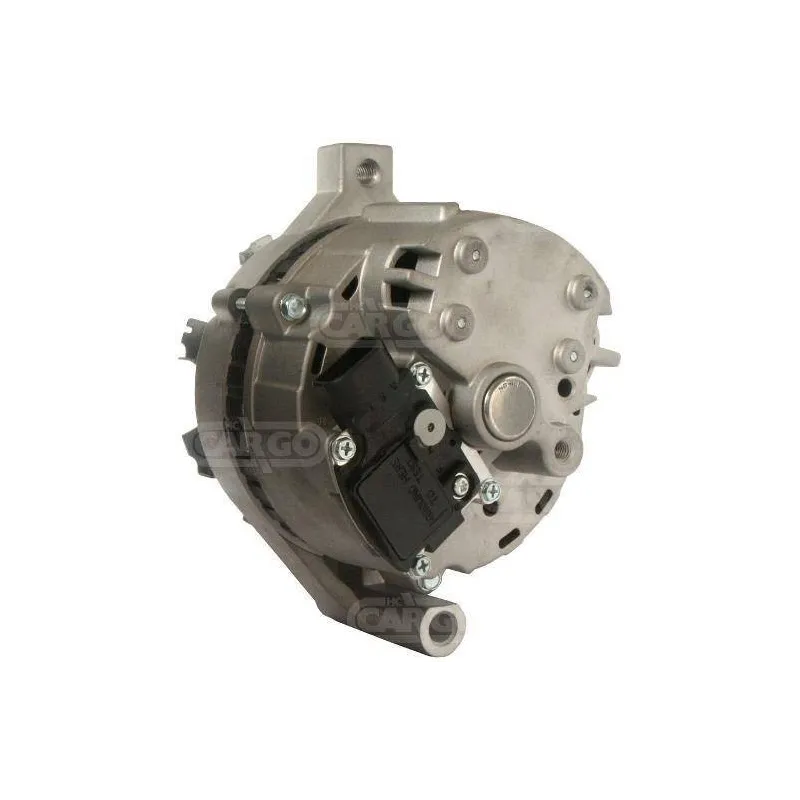

Alternator 14 Volts 75 A, Delco 23630, 23631, Lucas A1924-10, Krauf ALF1210, Ford E57F10300AA

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     75

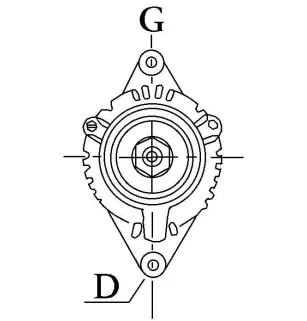

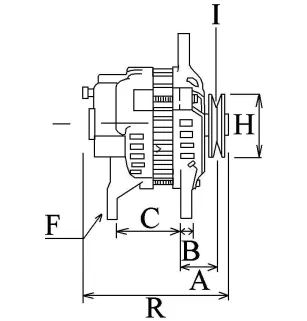

Physical Specifications
D     Hole Diameter     11.55
G     Lug Hole Diameter     M10
B     Arm Width     76.10
E     Tensioner Angle     60
H     Pulley Dia.     57.00
A     Dist. pulley     95.40
i     Pulley grooves     6
j     Radius     88.68
j     Radius 2     85.90
k     Position B +     Plug
n     Rotation     Cr
o     Regulator connector     PL49
R     Total length mm     157.00

More information
Fan     If
Pulley     Serpentine pulley
Regulator type     Ir
Vacuum pump   Without
Remarks Replaces: 2G series.

REPLACES THE FOLLOWING PART NUMBERS:

Waiglobal: 1-1787-30FD, 1-1787-31FD, 1-1787-32FD, 1-1787-33FD, 1-1787-34FD, 1-1787-36FD, 1-1787-37FD, 1-1789-11FD, 1-1789-30FD, 1-1789-31FD, 1-1789-32FD, 20-206-30, 20-208-10, 20-216-10, 20-216-30.
Cargo: 112835.
Delco: 23630, 23631, 23632, 23633, DRZ0173, DRZ0176.
Wps: 7745-10N, 7745-2N.
Lucas: A1924-10, LRA01787.
Krauf: ALF1210.
Ford: E57F10300AA, E57F10300BA, E57F10346BA, E5TZ10346A, E62F10300CA, E67F-10300CA, E67F10300CA, E67F10300DA, E67F10346AA, E67F10346CA, E6AF10300AA, E6AF10300AF, E6AF10300BA, E6SF10300BA, E6TF-10300BA, E6TF10300BA, E6TF10300CA, E6TF10300DA, E6TF10346AA, E6TZ-10346C, E6TZ10346A, E6TZ10346B, E6TZ10346C, E6UF10300AA, E6ZF10300CA, E6ZF10346BA, E6ZZ-10346B, E6ZZ10346B, E72F10300DA, E79F10300BA, E7AF-10300CA, E7AF10300AD, E7AF10300BA, E7AF10300CA, E7AF10300DA, E7PF-10346DA, E7PF-10346UA, E7PF10346AA, E7PF10346CA, E7PF10346DA, E7PF10346GA, E7PF10346LA, E7PF10346MA, E7PF10346UA, E7PF10346ZA, E7PZ-10346E, E7PZ10346C, E7PZ10346E, E7PZ10346H, E7PZ10346K, E7PZ10346L, E7PZ10346M, E7SF10300FA, E7SF10300HA, E7SF10300KA, E7SF10300MA, E7TF-10300LA, E7TF10300BA, E7TF10300LA, E7ZF10300BA, E7ZF10300DA, E7ZF10300EA, E7ZF10300FA, E8HT10300HA, E8PF-10346AA, E8PF10346AA, E8PZ10346A, E8SF0300BA, E8TF10300BA, E97F10300BA, E99F10300AB, E99F10300BA, E9PF10300AB, E9PF10346AA, E9PF10346AB, E9PF10346BA, E9PZ10346B, E9SF10300BA, E9UF10300BA, E9UF10300DA, EDE57F10300AA, EDE57F10300BA, EDE7AF10300BA, F0PZ10346E, F0TU10300EA, F0TU10300FA, F7PZ10346K, GL237, GL241, GL241A, GL246, GL248, GL252, GL253, GL263.
HC-Parts: UA1210IR.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

FORD USA AEROSTAR 3.0 i V6 (1985-1997)
