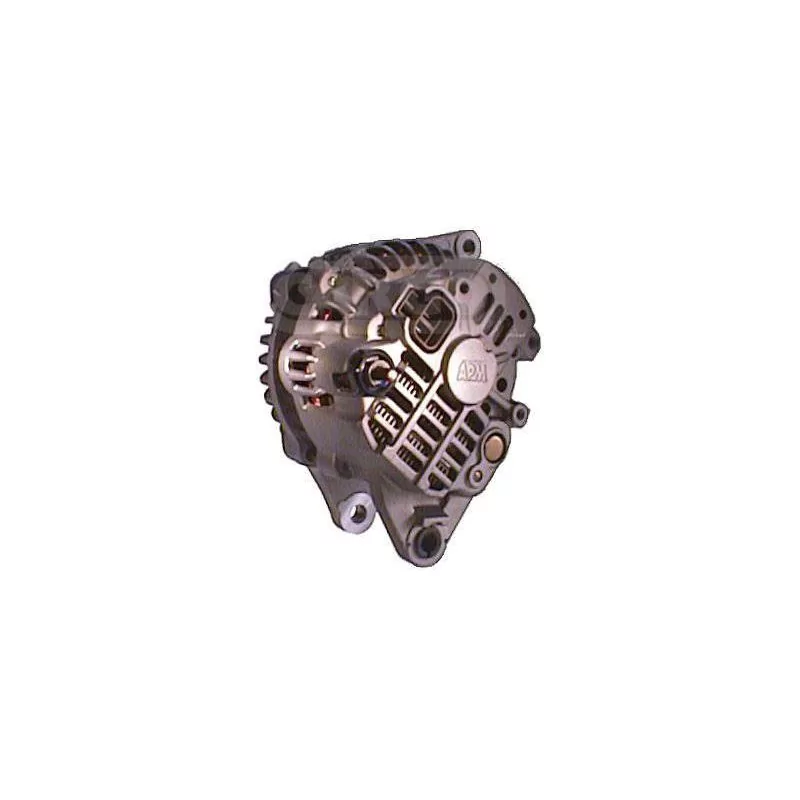

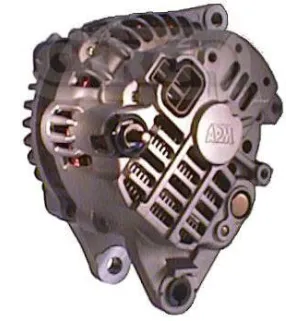

Alternator 14 Volts 75 A, Bosch 0986045941, Valeo 437617, Mitsubishi A002T38491, A002T38891, Delco DRA3465

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     75

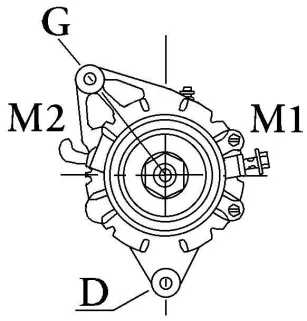

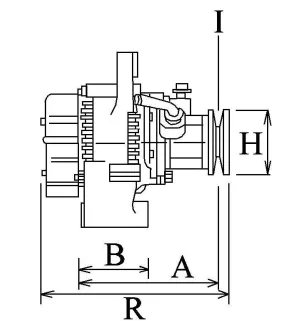

Physical Specifications
D     Hole Diameter     10.50
G     Lug Hole Diameter     M8
B     Arm Width     13.00
E     Tensioner Angle     54
C     Dist. Between Brackets     55.30
H     Pulley Dia.     69.50
A     Dist. pulley     36.85
i     Pulley grooves     4
j     Radius     89.80
j     Radius 2     96.00
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL07
R     Total length mm     164.00

More information
Fan     If
Pulley     Serpentine pulley
Regulator type     Ir
Vacuum pump   Without

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0986045941, 0986040521.
Waiglobal: 1-1833-01MI.
Wps: 13450, 13450R.
Messmer: 210837, 210837B.
Valeo: 437617.
Mitsubishi: A002T38491, A002T38891, A002T38892, A002T38892A, A002T40092, A002T40092A, A002TA0091, A002TA3491, A005T06591, A2T38491, A2T38891, A2T38892, A2T38892A, A2T40091, A2T40092, A2T40092A, A2TA0091, A2TA3491, A5T06591, MD177244, MD189658, MD189659, MD191402, MD193323, MD309845, MD317401, MD354797, MD361621, MD618927.
Krauf: ALM1126.
Motorherz: ALM1126RB, ALM1126WA, JA1126IRCN.
Delco: DRA3465, DRA3465N.
HC-Parts: JA1126IR.
Lucas: LRA01588, LRA02750, LRB00490.
Mazda: PN2618300A, PN2618300B, PN4018300BES.
China: RNLA2T38891.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

HYUNDAI ACCENT I (X-3) 1.3 i 12V (1994-2000)
HYUNDAI ACCENT (X-3) 1.3 i 12V (1994-2000)
HYUNDAI S COUPE (SLC) 1.5 i (1992-1996)
MITSUBISHI COLT IV (CA_A) 1.6 GLXi 16V (CA4A) (1992-1996)
MITSUBISHI COLT IV (CA_A) 1.8 GTi 16V (CA5A) (1992-1996)
MITSUBISHI GALANT Mk V (E5_A, E7_A, E8_A) 1.8 GLSI (E52A) (1992-1996)
MITSUBISHI GALANT Mk V (E5_A, E7_A, E8_A) 1.8 (E52A) (1994-1996)
MITSUBISHI GALANT Mk V (E5_A, E7_A, E8_A) 1.8 GLSI (E52A) (1992-1996)
MITSUBISHI GALANT Mk V (E5_A, E7_A, E8_A) 1.8 (E52A) (1994-1996)
MITSUBISHI GALANT V (E5_A, E7_A, E8_A) 1.8 GLSI (E52A) (1992-1996)
MITSUBISHI GALANT V (E5_A, E7_A, E8_A) 1.8 (E52A) (1994-1996)
MITSUBISHI GALANT V (E5_A, E7_A, E8_A) 1.8 GLSI (E52A) (1992-1996)
MITSUBISHI GALANT V (E5_A, E7_A, E8_A) 1.8 (E52A) (1994-1996)
MITSUBISHI LANCER IV (C6_A, C7_A) 1.6 16V (C76A, C66A) (1992-1994)
MITSUBISHI LANCER Mk V (CB/D_A) 1.6 16V (CB4A) (1992-1996)
MITSUBISHI LANCER Mk V (CB/D_A) 1.6 16V 4WD (CD4A) (1992-1996)
MITSUBISHI LANCER Mk V (CB/D_A) 1.6 (CB4A) (1994-1996)
MITSUBISHI LANCER Mk V (CB_W, CD_W) 1.6 16V (CB4W) ) (1992-2003)
MITSUBISHI LANCER Mk V (CB_W, CD_W) 1.6 16V 4WD (CD4W) (1992-2003)
MITSUBISHI LANCER V (CB/D_A) 1.6 16V (CB4A) (1992-1996)
MITSUBISHI LANCER V (CB/D_A) ) 1.6 16V 4WD (CD4A) (1992-1996)
MITSUBISHI LANCER V (CB/D_A) 1.6 (CB4A) (1994-1996)
MITSUBISHI LANCER V Station Wagon (CB_W, CD_W) 1.6 16V (CB4W) (1992-2003)
MITSUBISHI LANCER V Station Wagon (CB_W, CD_W) 1.6 16V 4WD (CD4W) (1992-2003)
MITSUBISHI RVR (N1_W, N2_W) 1.8 (N11W) (1991-1999)
MITSUBISHI RVR (N1_W, N2_W) 1.8 4WD (N21W) (1991-1999)
MITSUBISHI RVR (N1_W, N2_W) 1.8 (N11W) (1996-1999)
MITSUBISHI RVR (N1_W, N2_W) 1.8 4WD (N21W) (1996-1999)
MITSUBISHI SPACE RUNNER (N1_W, N2_W) 1.8 (N11W) ) (1991-1999)
MITSUBISHI SPACE RUNNER (N1_W, N2_W) 1.8 4WD (N21W) (1991-1999)
MITSUBISHI SPACE RUNNER (N1_W, N2_W) 1.8 (N11W) (1996-1999)
MITSUBISHI SPACE RUNNER (N1_W) , N2_W) 1.8 4WD (N21W) (1996-1999)
PROTON COMPACT (C9_M) 1.5 (2000-...)
PROTON PERSONA (C9_M) 1.3 (1996-...)
PROTON PERSONA (C9_M) 1.8 16V GTI (1996-...)
PROTON PERSONA 300 (C9_M) 313i (1996-...)
PROTON PERSONA 300 (C9_M) 318 16V GTI (1996-...)
PROTON PERSONA 400 (C9_S) 1.6 (1994-...) )
PROTON PERSONA 400 (C9_S) 416 GLXi (1994-...)
PROTON PERSONA 400 (C9_S) 2.0 D (1996-...)
PROTON PERSONA 400 (C9_S) 420 GLS D (1996-...)
PROTON PERSONA 400 (C9_S) 1.8 (1996-...)
PROTON PERSONA 400 (C9_S) 418 (1996-...)
PROTON PERSONA 400 (C9_C, C9_S) 1.6 (1994-...)
PROTON PERSONA 400 (C9_C, C9_S) 416 GLXi (1994-...)
PROTON PERSONA 400 (C9_C, C9_S) 1.6 (1995-...)
PROTON PERSONA 400 (C9_C, C9_S) 416 i (1995-...)
PROTON PERSONA 400 (C9_C, C9_S) 1.8 (1996-...)
PROTON PERSONA 400 (C9_C, C9_S) 418 GLXi (1996-...)
PROTON PERSONA 400 (C9_C, C9_S) 2.0 D (1996-...)
PROTON PERSONA 400 (C9_C, C9_S) 420 GLS D (1996-...)
PROTON SATRIA (C9_M) 1.5 (2000 -...)
PROTON WIRA 1.5 (2000-...)
PROTON WIRA 1.3 (2000-...)
PROTON WIRA 1.3 (2000-...)
PROTON WIRA 1.5 (2000-...)
