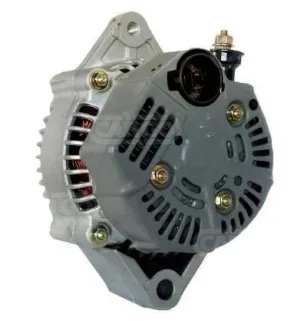

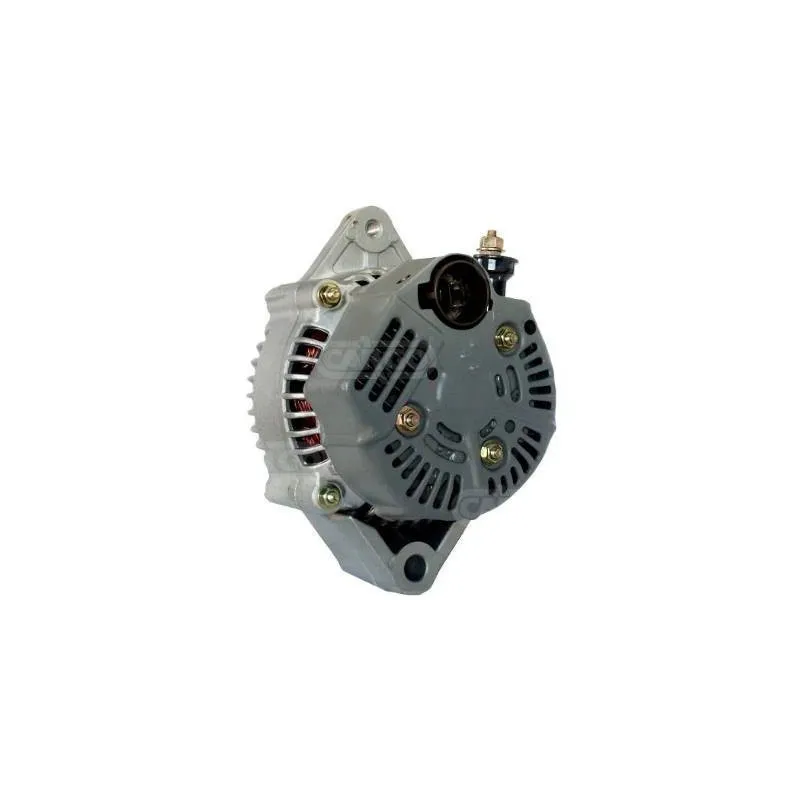

Alternator 14 Volts 75 A, Bosch 0986036301, Isuzu 8941313572

SPECIFICATIONS:

Electrical Specifications

Voltage     14
Amp     75

Physical Specifications

D     Hole Diameter     10.50
G     Lug Hole Diameter     M8
B     Arm Width     57.90
E     Tensioner Angle     60
H     Pulley Dia.     60.00
A     Dist. pulley     89.85
i     Pulley grooves     5

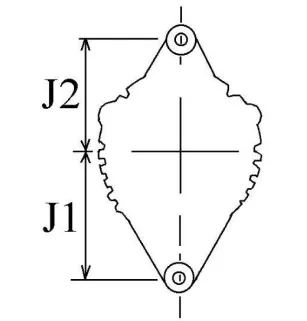

j     Radius     80.50
j     Radius 2     82.50
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL12

More information

Fan     If
Pulley     Serpentine pulley

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0986036301, 0986037581.
Waiglobal: 1-1019-01ND, 1-1062-01ND, 1-1062-02ND, 1-1090-01ND, 1-1242-01ND.
Denso: 100211-1050, 100211-1051, 100211-1180, 100211-1260, 100211-2100, 100211-250, 100211-2501, 100211-326, 100211-3261, 100211-706, 100211-745, 100211-7580, 100211-7590, 100211105, 1002111050, 100211109, 1002111090, 1002111091, 1002111150, 100211118, 1002111180, 1002111260, 1002111500, 1002112000, 1002112001, 100211205, 1002112050, 100211206, 1002112060, 1002112061, 1002112080, 100211210, 1002112102, 1002112110, 1002112250, 1002112410, 1002112450, 100211250, 1002112500, 1002112501, 1002113030, 100211311, 1002113110, 1002113111, 1002113170, 100211326, 1002113260,
Cargo: 111428.
Wps: 14679N.
Toyota: 27060-43060, 27060-43110, 27060-72010, 27060-72160, 27060-72170, 27060-72171, 27060-75050, 27060-75090, 2706043060, 2706043061, 2706043062, 2706043090, 2706043110, 2706043111, 2706043120, 270604312084, 2706043990, 2706072010, 2706072050, 2706072060, 270607206084, 2706072061, 2706072070, 2706072071, 270607207184, 2706072090, 2706072100, 2706072101, 270607210184, 2706072120, 2706072121, 2706072150, 2706072170,2706072171, 2706075080, 270607508084. Daihatsu: 2706072062.
Honda: 31100-PE0-921, 31100-PE1-661, 31100-PE1-662, 31100-PE1-663.
Valeo: 437856.
Isuzu: 8941313572, 8941725860, 8944086740, 8970425852, 8971671572.
Lucas: A8313, LRA01562.
Krauf: ALN0546, ALN0657, ALN1354, ALN9657.
Engine herz: ALN0546WA, ALN0657WA, ALN1354WA.
HC-Parts: JA1354IR, JA546IR, JA657IR.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

ISUZU IMPULSE (JR_) 2.0 Turbo (1985-1990)
ISUZU PIAZZA (JR_) 2.0 Turbo (1985-1990)
