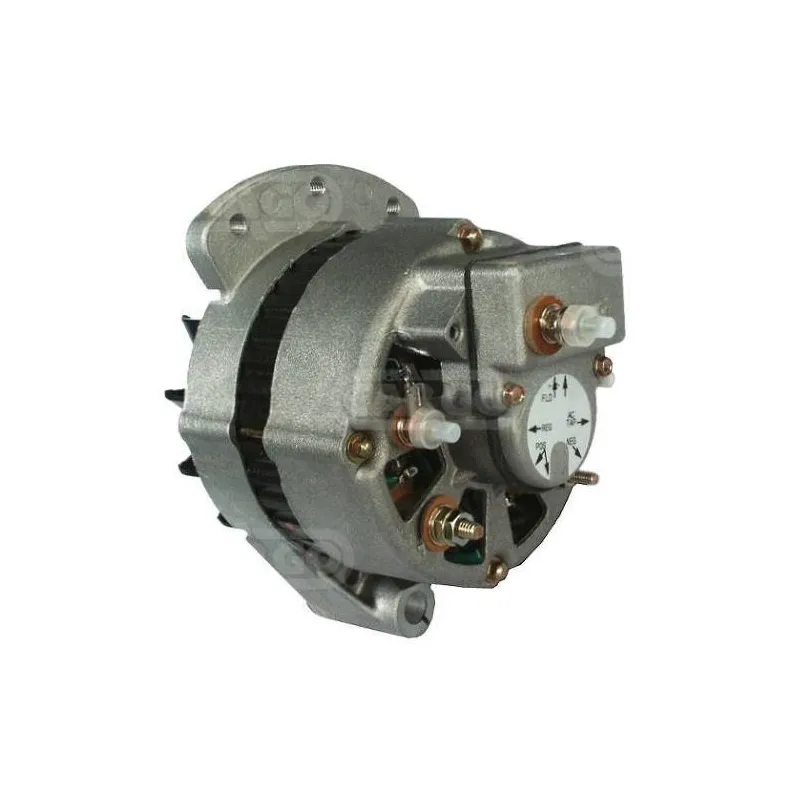

Alternator 14 Volts 72 A, Prestolite 8MA2014P, Delco DRZ0104
  • Alternator 14 Volts 72 A, Prestolite 8MA2014P, Delco DRZ0104
  • Alternator 14 Volts 72 A, Prestolite 8MA2014P, Delco DRZ0104
  • Alternator 14 Volts 72 A, Prestolite 8MA2014P, Delco DRZ0104
  • Alternator 14 Volts 72 A, Prestolite 8MA2014P, Delco DRZ0104

Alternator 14 Volts 72 A, Prestolite 8MA2014P, Delco DRZ0104

110170
€355.25
VAT included
€296.04 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

FEATURES:

Electrical Specifications

Voltage     14
Amp     72

Physical Specifications

D     Hole Diameter     13.00
G     Lug Hole Diameter     M8
B     Arm Width     51.25
E     Tensioner Angle     55
E     Adjustable Support Belt/Pos. 2     60
H     Pulley Dia.     75.75
A     Dist. pulley     74.75
i     Pulley grooves     1
j     Radius     82.00
j     Radius 2     82.75
j     Radius 3     81.25
j     Radius 4     83.75
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL_NA
G     Holes for Adjustable support belt 2     M8
R     Total length mm   206.00
E     Angle tensioner paste 3     5
G     Diameter of the leg hole 3     M8

More information

Fan     Ef
Pulley     Pulley
Remarks     Regulator: HC-131175.

REPLACES THE FOLLOWING PART NUMBERS:

Motorola: 8MA2010P, 8MA2010PA, 8MA2014P, 8MA2014PA.
Motorola USA: 8MA2010P, 8MA2010PA, 8MA2014P, 8MA2014PA.
Prestolite: 8MA2014P.
Krauf: ALP0918.
Ford: D7NN10300B.
Delco: DRZ0104.
Lucas: LRA01058.
HC-Parts: UA918.

Product Details
110170
New

Data sheet

Tension
14 Volts
Ampérage
72A

Specific References

UPC
400000041421
EAN13
4000000041368
