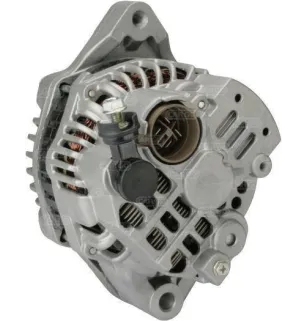

Alternator 14 Volts 70 A, Bosch 0986038581, Denso 100211-7340, Honda 31100-P04-G01, Mitsubishi A005T04092

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     70

Physical Specifications
D     Hole Diameter     10.50
G     Lug Hole Diameter     M8
B     Arm Width     57.80
E     Tensioner Angle     60
H     Pulley Dia.     60.00
A     Dist. pulley     90.00
i     Pulley grooves     4
j     Radius     80.00
j     Radius 2     83.60
k     Position B +     M6
n     Rotation     Counterclockwise
o     Regulator connector     PL33
R     Total length mm     150.00

More information
Fan     If
Pulley     Serpentine pulley
Regulator type     Ir
Vacuum pump   Without

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0986038581, 0986042341.
Waiglobal: 1-1831-01, 1-1831-01MI, 1-1831-01ND, 1-1831-01ND-2, 1-1876-01MI.
Denso: 100211-7340, 100211-9760, 100211-9770, 101211-0240, 101211-0250.
Delco: 10464174, DRA3436.
Wps: 13509N, 13700N.
Honda: 31100-P04-G01, 31100-P04-G03, 31100-P04-G034, 31100-P04-G05, 31100-P05-C04, 31100-P08-003, 31100-P08-004, 31100-P08-013, 31100-P08-014, 31100-P08-024, 31100-PR5-0030, 31100P04G034, 31100P08003, 31100P08003ES, 31100P08004, 31100P08013, 31100P08013ES, 31100P08014, 31100P76003, AHGA17, AHGA18, AHGA19, CJN42, CJQ20, CJQ21, CLQ21.
Valeo: 437671.
Magneti marelli: 944390514230.
Mitsubishi: A005T04092, A005T04292, A005T04292ZC, A005T06291, A005T06391, A005T06391ZC, A005T06491, A005T06491ZC, A007T04072, A5T04072, A5T04092, A5T04292, A5T04292ZC, A5T06291, A5T06391, A5T06391ZC, A5T06491, A5T06491ZC, A7T04072.
Krauf: ALM0980.
HC-Parts: JA980IR.
Concepts: JBA980IR.
Lucas: LRA01747, LRB00274.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

HONDA Ballade VI седан (EJ, EK) 1.6 i Vtec (1995-2001)
HONDA CIVIC IV (EG) 1.5 i 16V (EG4) (1991-1995)
HONDA CIVIC IV (EG) 1.6 16V Vtec (EG5) (1991-1995)
HONDA CIVIC IV (EG) 1.5 i 16V (EG4) (1991-1995)
HONDA CIVIC Mk IV (EJ) 1.5i LSi (EJ2) (1993-1995)
HONDA CIVIC Mk IV (EJ) 1.6 i (EJ6) (1994-1995)
HONDA CIVIC Mk IV (EJ) 1.6 i Vtec (EJ1) (1994-1996)
HONDA CIVIC Mk IV (EG, EH) 1.5 i 16V (EG8) (1991-1995)
HONDA CIVIC Mk IV (EG, EH) 1.6 16V Vtec (EH9) (1991-1995)
HONDA CIVIC V (EG) 1.5 i 16V (EG4) (1991-1995)
HONDA CIVIC V (EG) 1.6 16V Vtec (EG5) (1991-1995)
HONDA CIVIC V (EG) 1.5 i 16V (EG4) (1991-1995)
HONDA CIVIC V (EJ) 1.5 i LSi (EJ2) (1993-1995)
HONDA CIVIC V (EJ) 1.6 i (EJ6) (1994-1995)
HONDA CIVIC V (EJ) 1.6 i Vtec (EJ1) (1994-1996)
HONDA CIVIC V (EG, EH) 1.5 i 16V (EG8) (1991-1995)
HONDA CIVIC V (EG, EH) 1.6 16V Vtec (EH9) (1991-1995)
HONDA CIVIC VI (EJ, EM1) 1.6 i Vtec (1996-2000)
HONDA CIVIC VI (EJ, EM1) 1.6 i (1996-2000)
HONDA CIVIC VI (EJ, EK) 1.6 i Vtec (1995-2001)
HONDA CRX III (EH, EG) 1.6 ESi (EH6) (1992-1998)
