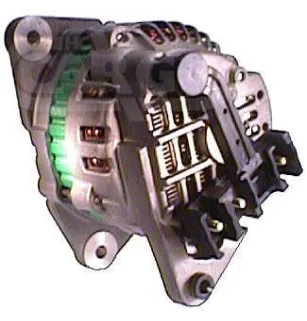

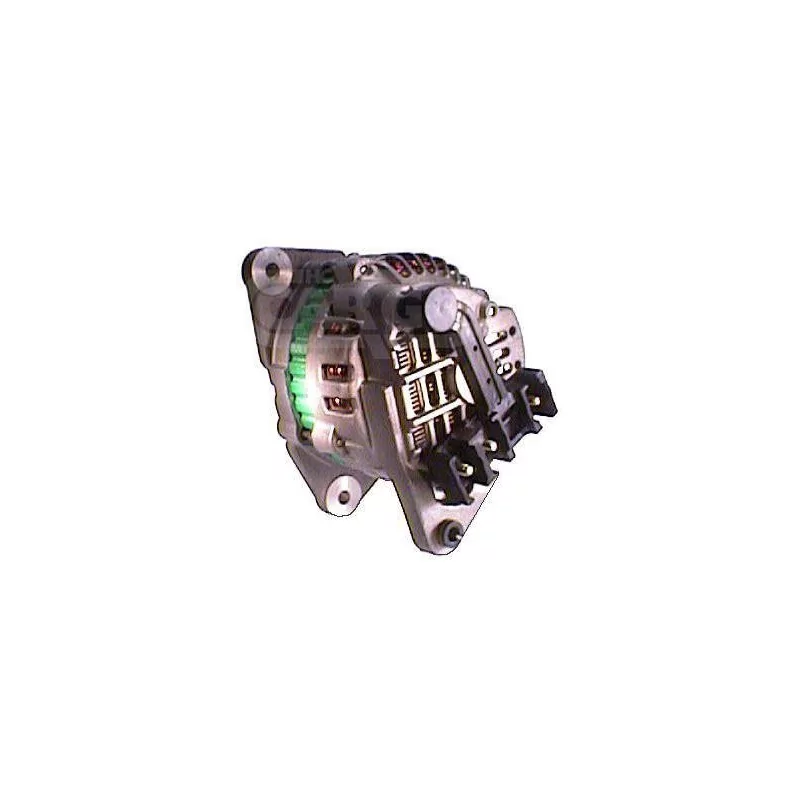

Alternator 14 Volts 70 A, Bosch 0986036690, Ford 1406064, 1406065 Valeo 437391, Mitsubishi A002T14591

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     70

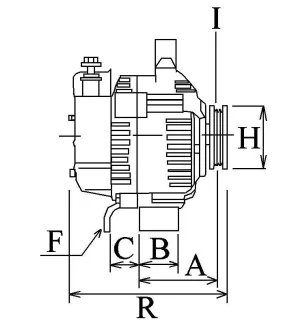

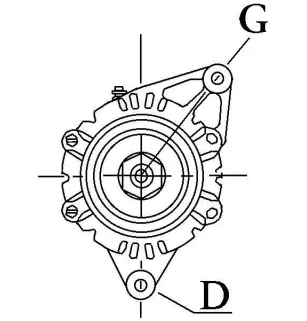

Physical Specifications
D     Hole Diameter     8.50
G     Lug Hole Diameter     M8
B     Arm Width     14.00
E     Tensioner Angle     10
C     Dist. Between Brackets     80.00
H     Pulley Dia.     55.00
A     Dist. pulley     33.00
i     Pulley grooves     6
j     Radius     86.20
j     Radius 2     86.90
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL_NA
Q     Plug type W     M5
R     Total length mm     172.00

More information
Fan     If
Pulley     Serpentine pulley
Regulator type    Ir

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0986036690, 0120485029, 0123310014.
Iskra: 11.201.993, AAK5302, IA0992, IA0993, IA1187.
Ford: 1406064, 1406065, 5026142, 5026711, 5029628, 6189556, 6199409, 7163508, 7275999, 91AB-10300-SA, 91AB10300SA, 92AB-10300-DD, 92AB-10300-EB, 92AB-10300-FA, 92AB-10300-FB, 92AB10300DC, 92AB10300DD, 92AB10300EB, 92AB10300FA, 92AB10300FB, 92FB10300FB, R92A-B10300-DC, R92A-B10300-DD, R92AB10300DC, R92AB10300DD, R92AB10300DD1, V89A-B10300-AA.
Messmer: 210090, 210090R.
Wps: 21173N, 21183N.
Valeo: 437391, 439458, 600953, VA310.
Magneti marelli: 943346147010, 944390366900.
Mitsubishi: A002T14591, A002T28792, A002TA2392, A2T14591, A2T28792, A2TA2392.
Krauf: ALB0738.
HC-Parts: CA738IR.
Delco: DRA3834, DRA6690.
Lucas: LEA0209, LRB00126, LRB00172, LRB126.
Mando: TA000A56301.

COMPATIBLE WITH THE FOLLOWING ALTERNATORS:

FORD ESCORT Mk V (GAL) 1.4 (1990-1992)
FORD ESCORT Mk V (GAL) 1.6 (1990-1992)
FORD ESCORT Mk V (GAL) 1.8 16V XR3i (1992-1992)
FORD ESCORT Mk V (ALL) 1.4 (1990-1992)
FORD ESCORT Mk V (ALL) 1.6 (1990-1992)
FORD ESCORT Mk V (ALL) 1.8 16V XR3i (1992-1992)
FORD ESCORT Mk V (GAL, AVL) 1.4 (1990-1992)
FORD ESCORT Mk V (GAL, AVL) 1.6 (1990-1992)
FORD ESCORT Mk V (GAL, AVL) 1.8 16V (1992-1992)
FORD ESCORT Mk VI (GAL) 1.4 (1992-1995)
FORD ESCORT Mk VI (GAL) 1.6 i 16V (1992-1995)
FORD ESCORT Mk VI (GAL) 1.8 i 16V (1992-1995)
FORD ESCORT Mk VI (GAL) 1.8 16V XR3i (1992-1995)
FORD ESCORT Mk VI (GAL) 1.8 XR3i 16V 4x4 (1993-1995)
FORD ESCORT Mk VI (GAL) 1.6 i 16V (1994-1995)
FORD ESCORT Mk VI (ALL) 1.6 16V XR3i (1992-1995)
FORD ESCORT Mk VI (ALL) 1.8 16V XR3i (1992 -1995)
FORD ESCORT Mk VI (ALL) 1.6 i 16V (1994-1995)
FORD ESCORT Mk VI (GAL) 1.6 i 16V (1993-1995)
FORD ESCORT Mk VI (GAL) 1.8 i 16V (1993-1995)< br />FORD ESCORT Mk VI (GAL) 1.6 i 16V (1994-1995)
FORD ESCORT Mk VI (GAL) 1.6 i 16V (1992-1995)
FORD ESCORT Mk VI (GAL) 1.8 i 16V (1993-1995)
FORD ESCORT Mk VI (GAL) 1.6 i 16V (1994-1995)
FORD ESCORT Mk VII (GAL, AAL, ABL) 1.8 16V (1995-1995)
FORD ESCORT Mk VII (GAL, AAL, ABL) 1.6 16V 4x4 (1995-1998)
FORD ESCORT Mk VII (GAL, AAL, ABL) 1.8 16V (1995-1998)
FORD ESCORT Mk VII (GAL, AAL, ABL) 1.6 16V (1995-1998)
FORD ESCORT Mk VII (ALL) 1.6 16V XR3i (1995-1996)
FORD ESCORT Mk VII (ALL) 1.8 16V Mk VII (GER) 1.6 16V XR3i (1995-1999)
FORD ESCORT Mk VII (GAL, AFL) 1.8 16V (1995-1995)
FORD ESCORT Mk VII (GAL, AFL) 1.8 16V (1995-1999)
FORD ESCORT Mk VII (GAL, AFL) 1.6 i 16V (1995-1999)
FORD ESCORT Mk VII (GAL, ANL) 1.8 16V (1995-1995)
FORD ESCORT Mk VII (GAL, ANL) 1.8 16V (1995-1999)
FORD ESCORT Mk VII (GAL, ANL) 1.6 16V (1995-1999)
br />FORD ESCORT V (GAL) 1.4 (1990-1992)
FORD ESCORT V (GAL) 1.6 (1990-1992)
FORD ESCORT V (GAL) 1.8 16V XR3i (1992-1992)
FORD ESCORT V (ALL) 1.4 (1990-1992)
FORD ESCORT V (ALL) 1.6 (1990-1992)
FORD ESCORT V (ALL) 1.8 16V >FORD ESCORT V (GAL, AVL) 1.8 16V (1992-1992)
FORD ESCORT VI (GAL) 1.4 (1992-1995)
FORD ESCORT VI (GAL) 1.6 i 16V (1992-1995)
FORD ESCORT VI (GAL) 1.8 i 16V (1992-1995)
FORD ESCORT VI (GAL) 1.8 16V XR3i (1992-1995)
FORD ESCORT VI (GAL) 1.8 -1995)
FORD ESCORT VI (ALL) 1.8 16V >FORD ESCORT VI (GAL) 1.8 i 16V (1993-1995)
FORD ESCORT VI (GAL) 1.6 i 16V (1994-1995)
FORD ESCORT VI (GAL) 1.6 i 16V (1992-1995)
FORD ESCORT VI (GAL) 1.8 i 16V (1993-1995)
FORD ESCORT VI (GAL) 1.6 i 16V (1994-1995)
FORD ESCORT VII (GAL, AAL, ABL) 1.8 16V (1995-1995)
FORD ESCORT VII (GAL, AAL, ABL) 1.6 16V 4x4 (1995-1998)
FORD ESCORT VII (GAL, AAL, ABL) 1.8 16V ( 1995-1998)
FORD ESCORT VII (GAL, AAL, ABL) 1.6 16V (1995-1998)
FORD ESCORT VII (ALL) 1.6 16V XR3i (1995-1996)
FORD ESCORT VII (ALL) 1.8 16V -1998)
FORD ESCORT VII (ALL) 1.6 16V XR3i (1995-1999)
FORD ESCORT VII (GAL, AFL) 1.8 16V (1995-1995)
FORD ESCORT VII (GAL, AFL) 1.8 16V (1995-1999)
FORD ESCORT VII (GAL, AFL) 1.6 i 16V (1995-1999)
FORD ESCORT VII (GAL, ANL) 1.8 16V (1995-1995)
FORD ESCORT VII (GAL, ANL) 1.8 16V (1995-1999)
FORD ESCORT VII (GAL, ANL) 1.6 16V (1995-1999)
FORD ESCORT `91 Courier (AVL) 1.4 (1990-1994)
FORD ESCORT `91 Express (AVL) 1.4 (1990-1994)
FORD FIESTA III (GFJ) 1.8 16V (1992-1995)
FORD FIESTA III (GFJ) 1.8 XR2i 16V (1992-1995)
FORD FIESTA III (GFJ) 1.6 i 16V (1994-1995)
FORD ORION III (GAL) 1.6 i (1990-1992)
FORD ORION III (GAL) 1.6 (1990-1992)
FORD ORION III (GAL) 1.4 (1990-1993)
FORD ORION III (GAL) 1.6 i 16V (1992-1993)
FORD ORION III (GAL) 1.8 i 16V (1992-1993)
