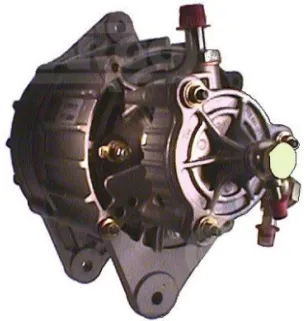

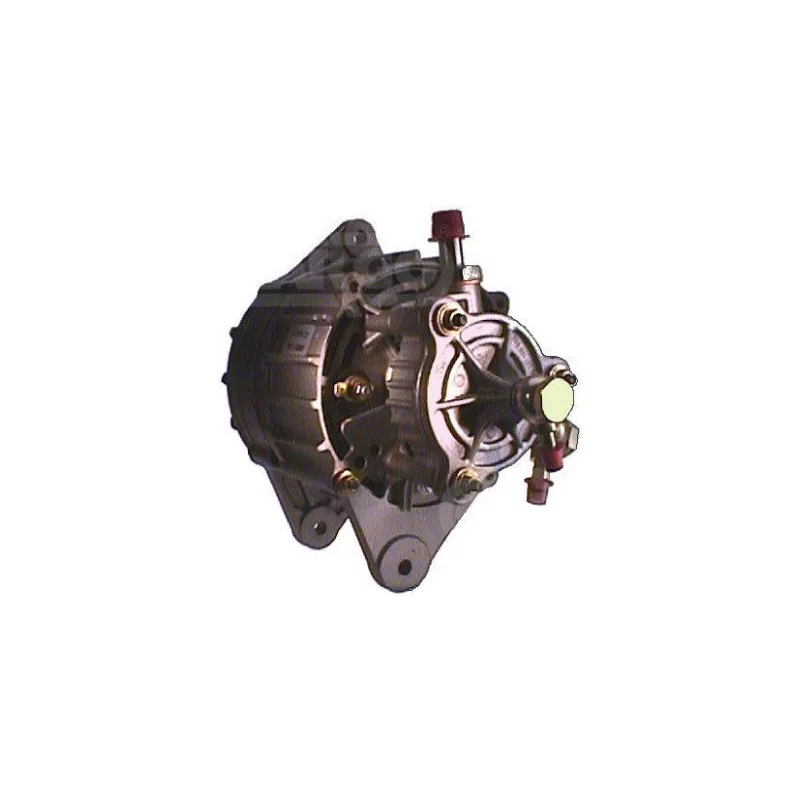

Alternator 14 Volts 70 A, Bosch 0120488004, 0120488005, Krauf ALB9382, Lucas LRA02692

FEATURES:

Electrical Specifications
Voltage     14
Amp     70
Terminal     W

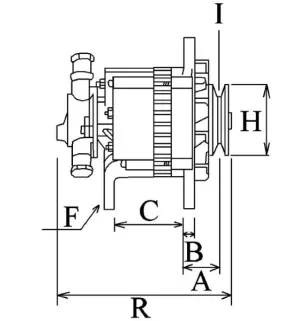

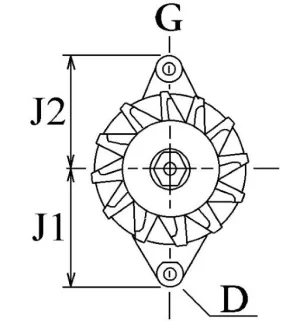

Physical Specifications
D     Hole Diameter     8.60
G     Lug Hole Diameter     8.50
B     Arm Width     13.50
E     Tensioner Angle     60
C     Bracket Distance     80.00
H     Pulley Dia.     69.00
A     Dist. pulley     39.20
i     Pulley grooves     1
j     Radius     88.00
j     Radius 2     85.00
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL_NA
Q     Plug type W     M5-6.3
R     Total length mm     224.00

More information
Fan     Ef
Pulley     Pulley
Regulator type     Ir
Vacuum pump     VP

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0120488004, 0120488005.
Magneti marelli: 943356212.
Krauf: ALB9382.
HC-Parts: CA382IR.
Lucas: LRA02692.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

OPEL FRONTERA A (5_MWL4) 2.3 TD (5JMWL4) (1992-1998)
OPEL OMEGA A (16_, 17_, 19_) 2.3 TD (1986-1988)
OPEL OMEGA A (16_, 17_, 19_) 2.3 D (1986-1994)
OPEL OMEGA A (16_, 17_, 19_) 2.3 TD Interc. (1988-1994)
OPEL OMEGA A (66_, 67_) 2.3 TD (1986-1988)
OPEL OMEGA A (66_, 67_) 2.3 D (1986-1994)
OPEL OMEGA A (66_, 67_) 2.3 TD Interc. (1988-1994)
OPEL REKORD E (17_-19_, 11_, 14_, 16_) 2.2 D (1982-1986)
OPEL REKORD E (17_-19_, 11_, 14_, 16_) 2.2 TD (1984-1986)
OPEL REKORD E (61_, 66_, 67_) 2.3 D (1982-1986)
OPEL REKORD E (61_, 66_, 67_) 2.2 TD (1984-1986)
OPEL SENATOR A (29_) 2.2 TD (1984-1987)
VAUXHALL CARLTON Mk III 2.2 TD (1986-1988)
VAUXHALL CARLTON Mk III 2.3 D (1986-1994)
VAUXHALL CARLTON Mk III 2.2 TD (1986-1988)
VAUXHALL CARLTON Mk III 2.3 D (1986-1994)
VAUXHALL FRONTERA Mk I (A) 2.3 TD (1991-1998)
