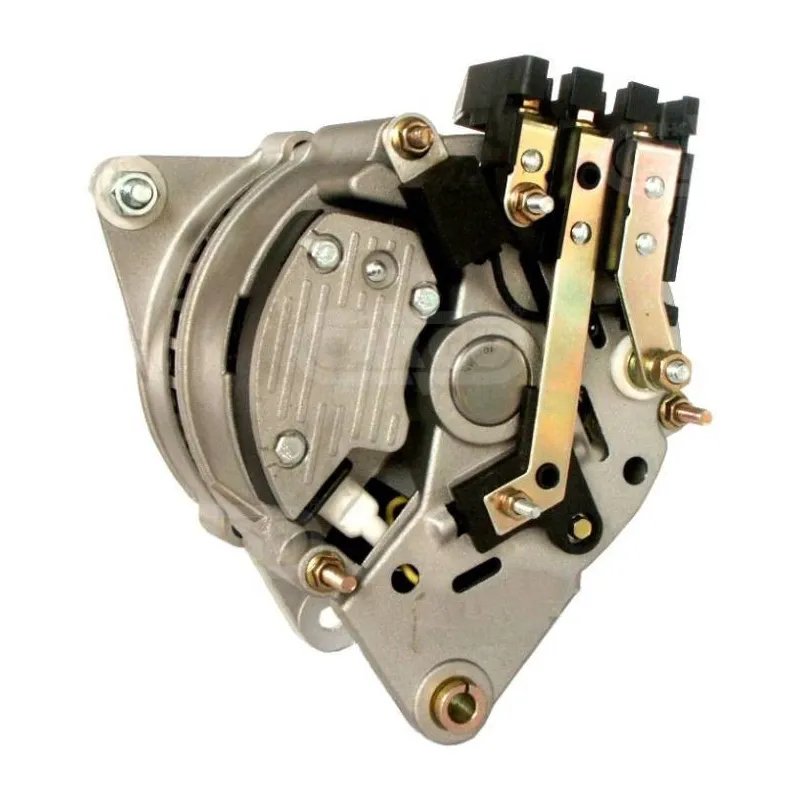

Alternator 14 Volts 70 A, Bosch 0120448178, Ford 1005386, 1406055, Lucas 24207, Delco DRA3777

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     70
Terminal     W

Physical Specifications
D     Hole Diameter     8.10
G     Lug Hole Diameter     8.20
B     Arm Width     11.50
E     Tensioner Angle     10
C     Dist. between support     81.00
j     Radius     85.00
j     Radius 2     85.00
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL31
Q     Plug type W     M5
R     Total length mm     170.00

More information
Fan     Without
Pulley     Without
Regulator type     Ir
Vacuum pump     Without

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0120448178, 0120488149, 0120488178, 0120488179, 0120488180, 0986036041, 0986036048, 0986036150, 0986036150090.
Magneti marelli: 054022474, 054022474010, 054022584, 054022585, 054022600, 054022650, 063324308, 063324348, 54022323, 943322584, 943322584010, 944390360410.
Ford: 1005386, 1406055, 1659058, 5021188, 5023524, 5023525, 5024361, 5026097, 5026718, 5027845, 6196163, 85GB10300GA, 86AB10300AAA, 89BB10300FB, 89BB10300HA, 89BB10300HB, 89BB10300JA, 89BB10300JB, 89BB10300JD, 89BB10300KA, 89BB10300KB, 89BB10300KC, 89BB10300LA, 89BB10300LB, 89BB10300MA, 89BX10300HB, 92FF10300BB, 99UB10300BB, R86AX10300AAA, R89BX10300HB, V89AB10300AA.
Cargo: 111176, 111177, 111570.
Prestolite: 20100517, 20100518, 35214310, 66021550, 66021555, 66021595.
Wps: 20520N.
Messmer: 210099.
Lucas: 24207, 24207A, 24217, 24217A, 24217E, 24221, 24221A, 24257, 24259, 24308, 24334, 24334A, 24403, 54022060, 54022159, 54022162, 54022187, 54022192, 54022198, 54022251, 54022275, 54022281, 54022287, 54022309, 54022312, 54022317, 54022322, 54022346, 54022474, 54022584, 54022600, 54022601, 54022614, 54022652, 54022716, LEA0048, LEA0049, LEA0050, LEA0051, LEA0052, LEA0056, LEA0130, LEA0138, LEA0434, LEA0579, LRA00496, LRA00517, LRA00518, LRA518, LRA520, LRB00128.
Valeo: 437051, 437380, VA231, VA232, VA233, VA323.
Motorola: 9AR2512, 9AR2512P.
Krauf: ALL0562.
Motorherz: ALL0562WA.
HC-Parts: CA560IR, CA562IR.
Delco: DRA3777, DRA3967, DRA6041.
Iskra: IA0481, IA0891, IA0893.
Rover group: YLE10105, YLE102200.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

FORD GRANADA I (GAE, GGE) 2.0 (1985-1989)
FORD GRANADA I (GAE, GGE) 2.0 (1988-1992)
FORD GRANADA I (GAE, GGE) 2.0 i (1989-1994)
FORD GRANADA I (GAE, GGE) 2.0 i (1992- 1994)
FORD GRANADA I (GGE) 2.0 i (1991-1994)
FORD GRANADA Mk III (GGE) 2.0 i (1989-1994)
FORD GRANADA Mk III (GGE) 2.0 i (1992-1994)
FORD SCORPIO I (GAE , GGE) 2.0 (1985-1989)
FORD SCORPIO I (GAE, GGE) 2.0 i (1989-1994)
FORD SCORPIO I (GAE, GGE) 2.0 i (1992-1994)
FORD SCORPIO I (GGE) 2.0 i (1989-1994)
FORD SCORPIO I ( GGE) 2.0 i (1992-1994)
FORD SCORPIO I (GGE) 2.0 i (1991-1994)
FORD SIERRA (GBG, GB4) 2.0 (1987-1993)
FORD SIERRA (GBG, GB4) 2.0 4x4 (1990-1993)
FORD SIERRA (GBG, GB4) 2.0 i (1990-1993)
FORD SIERRA (GBG, GB4) 2.0 4x4 (1990-1993)
FORD SIERRA (GBG, GB4) 2.0 i (1990-1993)
FORD SIERRA (GBG, GB4) 2.0 i DOHC (1991-1993)< br />FORD SIERRA (BNG) 2.0 (1987-1993)
FORD SIERRA (BNG) 2.0 i (1989-1993)
FORD SIERRA (BNG) 2.0 4x4 (1989-1993)
FORD SIERRA (BNG) 2.0 4x4 (1990) -1993)
FORD SIERRA (BNG) 2.0 i DOHC (1991-1993)
FORD TRANSIT Van (E_ _) 2.0 i (EAL, EAS) (1991-1994)
FORD TRANSIT Van (E_ _) 2.0 (1991-1994)
FORD TRANSIT c (E_ _) 2.0 (EME/L/S, ENE/L/S) (1991-1994)
FORD TRANSIT (E_ _) 2.0 i (EBL, EDL, EGL, ESS, EUS) (1991-1994)
FORD TRANSIT (E_ _) 2.0 (1991-1994)
FORD TRANSIT (E_ _) 2.0 i (EAL, EAS) (1991-1994)
FORD TRANSIT (E_ _) 2.0 (1991-1994)
