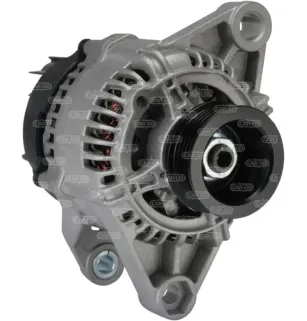

Alternator 14 Volts 65 A, Bosch 0986040651, Valeo 437669, Fiat 462123705, Delco DRA3397
    • Alternator 14 Volts 65 A, Bosch 0986040651, Valeo 437669, Fiat 462123705, Delco DRA3397
    • Alternator 14 Volts 65 A, Bosch 0986040651, Valeo 437669, Fiat 462123705, Delco DRA3397
    • Alternator 14 Volts 65 A, Bosch 0986040651, Valeo 437669, Fiat 462123705, Delco DRA3397
    • Alternator 14 Volts 65 A, Bosch 0986040651, Valeo 437669, Fiat 462123705, Delco DRA3397

    Alternator 14 Volts 65 A, Bosch 0986040651, Valeo 437669, Fiat 462123705, Delco DRA3397

    111689

    14 Volts - 65 Amp - FIAT BRAVA PALIO - LANCIA DELTA

    €161.37
    VAT included
    €134.48 VAT excluded
    LIVRAISON 24/48H
    Quantity
    EN STOCK - LIVRAISON 24/48H



      Delivery policy

    (edit with the Customer Reassurance module)

      Security policy

    (edit with the Customer Reassurance module)

      Return policy

    (edit with the Customer Reassurance module)



    Description

    SPECIFICATIONS:

    Electrical Specifications
    Voltage     14
    Amp     65

    Physical Specifications
    D     Hole Diameter     12.40
    G     Lug Hole Diameter     16.50
    B     Arm Width     25.00
    E     Tensioner Angle     6
    C     Bracket Distance     71.00
    H     Pulley Dia.     60.00
    A     Dist. pulley     59.00
    i     Pulley grooves     5
    j     Radius     92.00
    j     Radius 2     92.00
    k     Position B +     M8
    n     Rotation     Cr
    o     Regulator connector     PL_NA
    R     Total length mm     199.00

    More information
    Fan     If
    Pulley     Serpentine pulley
    Regulator type     Ir
    Vacuum pump   Without

    REPLACES THE FOLLOWING PART NUMBERS:

    Bosch: 0986040651.
    Magneti marelli: 063321295010, 063321606, 063321606010, 063321607, 063321607010, 063321625, 63320261, 63321295, 63321396, 63321606, 63321607, 943321606, 943321607, 943321609, 944390406510, MAN799, MAN800, MAR799.
    Messmer: 210177, 210177R, 210741.
    Valeo: 437669, 440005.
    Fiat: 462123705, 46231705, 46420962, 46428733, 46428733ES.
    Denso: 63321607, DAN525, DAN626.
    Krauf: ALE1220.
    HC-Parts: CA1220IR.
    Motorherz: CA1220IRCN.
    Delco: DRA3397.
    Lucas: LRB00329.

    COMPATIBLE WITH THE FOLLOWING VEHICLES:

    FIAT ALBEA (178_) 1.2 (1998-...)
    FIAT ALBEA (178_) 1.6 16V (1998-...)
    FIAT BRAVA (182) 1.6 16V (182.BH) (1995-2001)
    FIAT BRAVA (182) 1.6 16V (182.BB) (1996-2001)
    FIAT BRAVO I (182) 1.6 16V (182.AH) (1995-2001)
    FIAT BRAVO I (182) 1.6 16V (182.AB) (1996-2001)
    FIAT MAREA (185) 1.6 16V (1997-1999)
    FIAT MAREA (185) 1.6 100 16V (1996-2002)
    FIAT MAREA Weekend (185) 1.6 100 16V (1996-2002)
    FIAT PALIO (178BX) 1.6 16V (1996-...)
    FIAT PALIO (178BX) 1.4 (1996-...)
    FIAT PALIO (178BX) 1.4 LANCIA DEDRA (835) 1.6 16V (835EI) (1996-1999)
    LANCIA DEDRA SW (835) 1.6 16V (835EI) (1996-1999)
    LANCIA DELTA II (836) 1.6 i.e. (836AP) (1996-1999)
    LANCIA DELTA II (836) 1.6 i.e. 16V (836AO) (1996-1999)

    Product Details
    111689
    New

    Data sheet

    Tension
    14 Volts
    Ampérage
    65A

    Specific References

    UPC
    400000052175
    EAN13
    4000000052111
