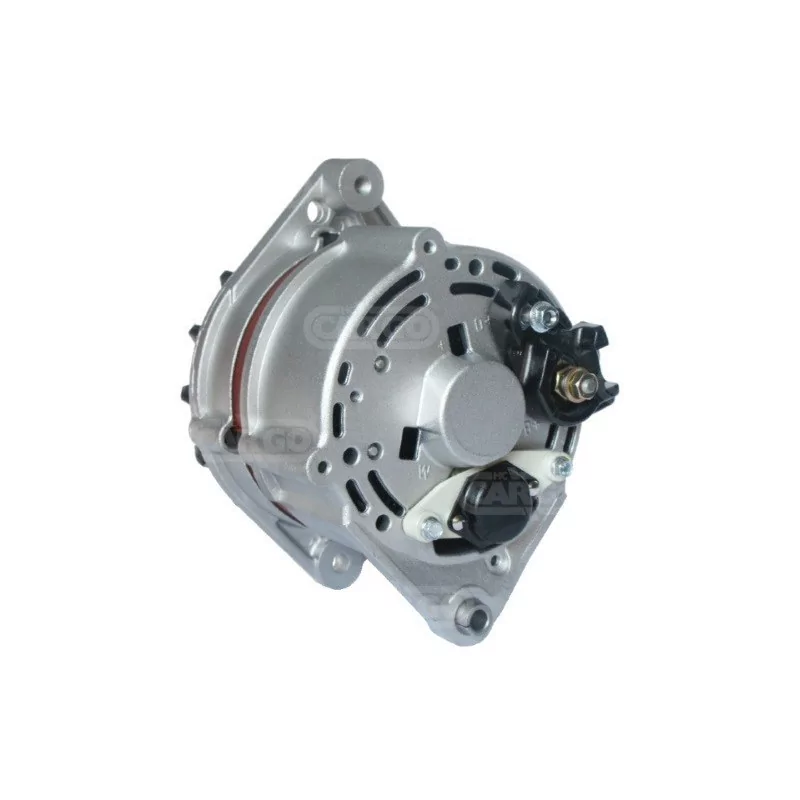

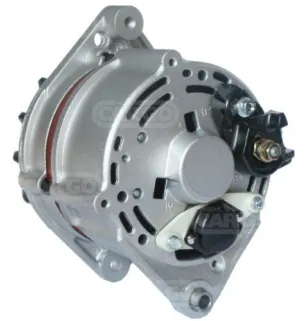

Alternator 14 Volts 65 A, Bosch 0120488123, Opel 1204059, Lucas LRA00569, LRA01243

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     65

Physical Specifications
D     Hole Diameter     8.20
G     Lug Hole Diameter     M8
B     Arm Width     10.80
E     Tensioner Angle     60
C     Dist. Between Brackets     81.00
H     Pulley Dia.     70.55
A     Dist. pulley     34.85
i     Pulley grooves     1
j     Radius     79.90
j     Radius 2     86.80
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL_NA
R     Total length mm     171.55

More information
Fan     Ef
Pulley     Pulley
Regulator type     Ir
Vacuum pump     Without

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0120488123, 0120488124, 0120488166, 0120488200, 0120488201, 0986036540.
Waiglobal: 1-1522-01BO, 1-1523-01BO.
Iskra: 11.201.749, AAK4582.
Opel: 1204059, 1204092, 1204208, 1204213, 1204344, 3472106, 90244664, 90247987, 90337037, 90349851, 9119715.
General motors: 90349324.
Magneti marelli: 943356407, 943356407010, 943356662.
Magneton: 9515050, 9515051.
Krauf: ALB0519.
HC-Parts: CA519IR.
Delco: DRA6532, DRA6540.
Lucas: LRA00569, LRA01243, LRA01284, LRA569.
Valeo: VA376.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

OPEL ASTRA F (56_, 57_) 1.4 (1991-1993)
OPEL ASTRA F (56_, 57_) 1.6 Si (1992-1994)
OPEL ASTRA F (56_, 57_) 1.6 i (1993-1996)
OPEL ASTRA F (56_, 57_) 1.4 i (1991-1998)
OPEL ASTRA F (56_, 57_) 1.4 Si (1992-1998)
OPEL ASTRA F (56_, 57_) 1.6 i (1992-1998)
OPEL ASTRA F (56_, 57_) 1.6 (1995-1998)
OPEL ASTRA F Van (55_) 1.6 i (1991-1993)
OPEL ASTRA F Van (55_) 1.4 i (1991-1999)
OPEL ASTRA F (53_, 54_, 58_, 59_) 1.6 Si (1992-1994)
OPEL ASTRA F (53_, 54_, 58_, 59_) 1.6 i (1993-1996)
OPEL ASTRA F (53_, 54_, 58_, 59_) 1.6 i (1991-1998)
OPEL ASTRA F (53_, 54_, 58_, 59_) 1.4 i (1992-1998)
OPEL ASTRA F (53_, 54_, 58_, 59_) 1.4 Si (1992-1998)
OPEL ASTRA F (53_, 54_, 58_, 59_) 1.6 (1995-1998)
OPEL ASTRA F (51_, 52_) 1.6 Si (1992-1994)
OPEL ASTRA F (51_, 52_) 1.6 i (1993-1996)
OPEL ASTRA F (51_, 52_) 1.4 i (1991-1998)
OPEL ASTRA F (51_, 52_) 1.4 Si (1992-1998)
OPEL ASTRA F (51_, 52_) 1.6 (1995-1998)
OPEL KADETT E (39_,49_) 1.6 i (1986-1991)
OPEL KADETT E (39_, 49_) 1.6 i KAT (1986-1991)
OPEL KADETT E Combo (38_, 48_) 1.6 i (1991-1994)< br />OPEL KADETT E (33_, 34_, 43_, 44_) 1.6 i (1986-1991)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.6 i KAT (1986-1991)
OPEL KADETT E (43B_) 1.6 i (1986- 1993)
OPEL KADETT E (43B_) 1.6 i KAT (1987-1993)
OPEL KADETT E (43B_) 1.6 i (1989-1993)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.6 i (1986-1991)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.6 i KAT (1986-1991)
OPEL KADETT E (37_, 47_) 1.6 i (1989-1993)
OPEL OMEGA A (16_, 17_, 19_) 1.8 N (1986-1987)
OPEL OMEGA A (16_, 17_, 19_) 1.8S (1986-1994)
OPEL OMEGA A (16_, 17_, 19_) 1.8 (1986-1994)
OPEL OMEGA A (16_, 17_, 19_) 1.8 (1987-1994)
OPEL OMEGA A (66_, 67_) 1.8 N (1986-1987)
OPEL OMEGA A (66_, 67_) 1.8 S (1986-1994)
OPEL OMEGA A (66_, 67_) 1.8 (1986-1994)
OPEL OMEGA A ( 66_, 67_) 1.8 (1987-1994)
OPEL VECTRA A (86_, 87_) 1.6 (1988-1993)
OPEL VECTRA A (86_, 87_) 1.6 i (1988-1995)
OPEL VECTRA A (88_, 89_) 1.4 S (1988-1992)< br />OPEL VECTRA A (88_, 89_) 1.6 S (1988-1993)
OPEL VECTRA A (88_, 89_) 1.6 i KAT (1988-1995)
VAUXHALL ASTRA Mk II 1.4 i (1990-1991)
VAUXHALL ASTRA Mk II 1.6 i (1991-1993)
VAUXHALL ASTRA Mk III (F) 1.6 i (1992-1994)
VAUXHALL ASTRA Mk III (F) 1.4 i (1992-1998)
VAUXHALL ASTRA Mk III (F) 1.6 i (1992-1998)
VAUXHALL ASTRA Mk III (F) 1.4 i (1991-1998)
VAUXHALL ASTRA Mk III (F) 1.6 i (1991-1998)
VAUXHALL ASTRA Mk III (F) 1.4 i (1992-1998)
VAUXHALL ASTRA Mk III (F) 1.6 i (1992-1998)
br />VAUXHALL ASTRA Mk III (F) 1.4 i (1993-1998)
VAUXHALL ASTRA Mk III (F) 1.6 i (1996-2001)
VAUXHALL ASTRA Mk III (F) 1.6 Si (1991-1994)
VAUXHALL ASTRA Mk III (F) 1.4 i (1991- 1998)
VAUXHALL ASTRA Mk III (F) 1.6 i (1991-1998)
VAUXHALL ASTRA Mk III (F) 1.4 i (1991-1998)
VAUXHALL ASTRAMAX 1.6 i (1991-1994)
VAUXHALL ASTRAVAN Mk III (F) 1.4 i ( 1991-1994)
VAUXHALL ASTRAVAN Mk III (F) 1.6 i (1991-1998)
VAUXHALL CAVALIER Mk III (87) 1.6 (1988-1993)
VAUXHALL CAVALIER Mk III (87) 1.6 i (1988-1995)
VAUXHALL CAVALIER Mk III 1.6 ( 1988-1993)
VAUXHALL CAVALIER Mk III 1.6 i (1988-1995)
