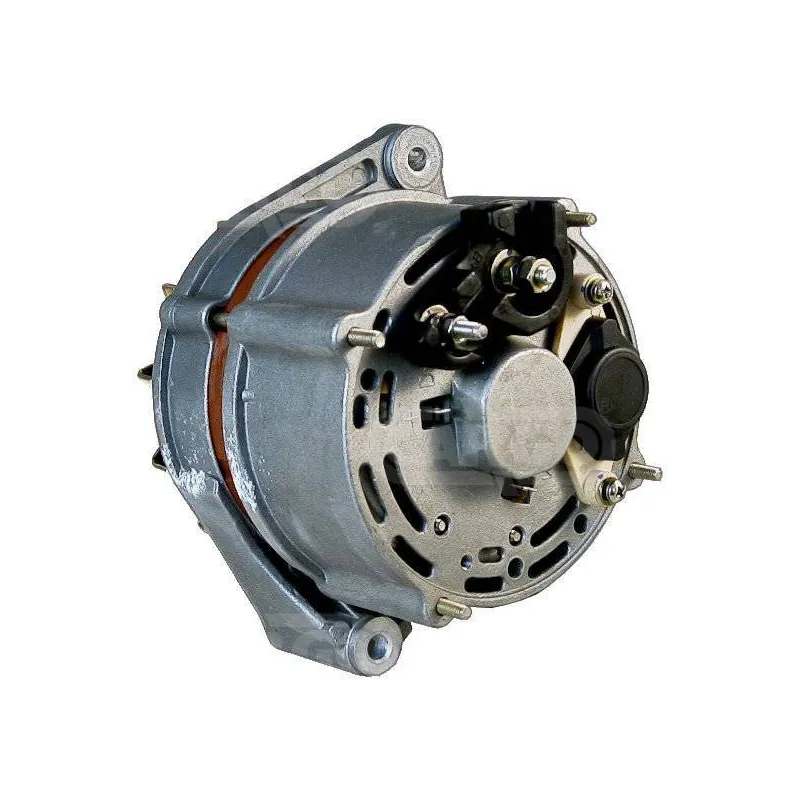

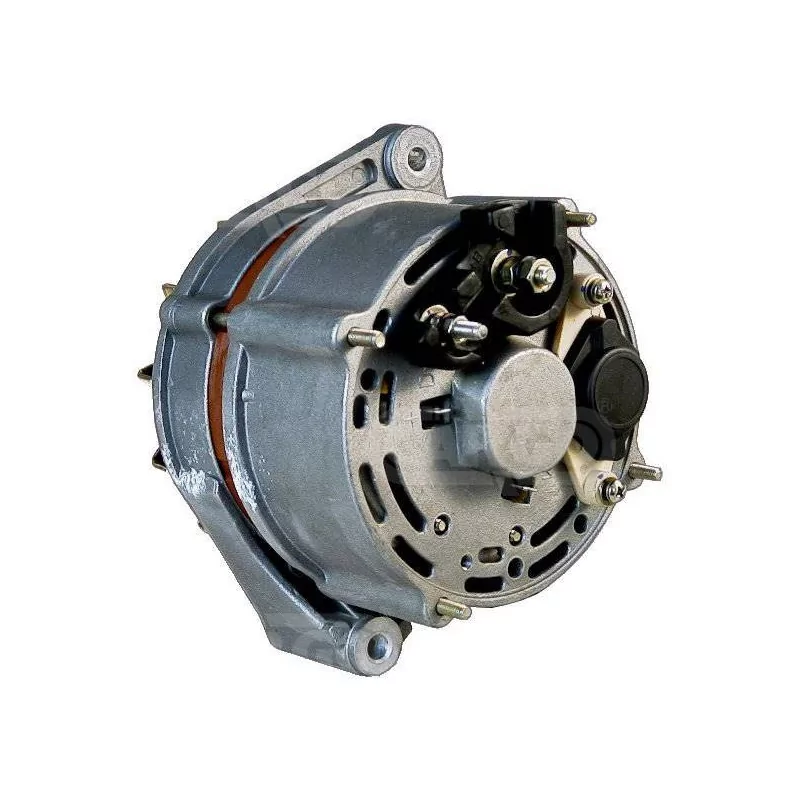

Alternator 14 Volts 65 A, Bosch 0120488101, Opel 1204004, 1204005, Valeo 2541341, Lucas 60021054

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     65
Terminal     W

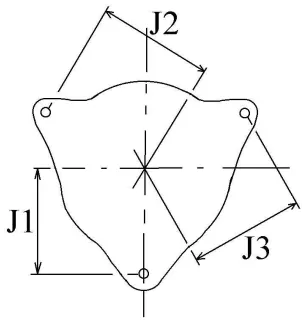

Physical Specifications
D     Hole Diameter     8.50
G     Lug Hole Diameter     8.50
B     Arm Width     56.00
E     Tensioner Angle     57
H     Pulley Dia.     68.00
A     Dist. pulley     85.00
i     Pulley grooves     1
j     Radius     86.00
j     Radius 2     86.00
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL_NA
Q     Plug type W     6.3
R     Total length mm     171.00
Manufactured     Mahle Letrika

More information
Fan     Ef
Pulley     Pulley
Regulator type     Ir
Vacuum pump     Without

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0120488101, 0120488203, 0120489123, 0120489125, 0120489341, 0120489343, 0120489950, 0120489951, 0120489952, 0986030920, 0986030928, 0986030938, 0986034461, 0986034468, 0986041620.
Delco: 050, 051, 052, 066, 067, 068, 070, 1101199, 188, 208, 3472051, 3472066, 3472070, 3472188, 3472208, 3493619, 3493620, 3493719, 619, 620, 719, DRA0930, DRA4460.
Iskra: 11.201.297, 11.201.299, 11201297, A0297, AAK4131, AAK4133, IA0297.
Cargo: 110972, 111168.
Opel: 1204004, 1204005, 1204013, 1204043, 1204044, 1204222, 1204316, 1204321, 1204327, 1204333, 1204335, 1204340, 1776346, 90337045, 90337046, 90349207, 90349208, 90488053.
Valeo: 2541341, 2940347, 2940349, 433055, 436161, 436722, A13N214, NA225, NA226, VA159.
Waiglobal: 28-2858.
Motorola: 2940347, 2940349.
Magneton: 443113516761, 9516716, 9516760, 9516761.
Lucas: 60021054, 60021055, 60021056, 66021101, 66021149, LEA0087, LEA0101, LEA0102, LRA00444, LRA00506, LRA00880, LRA02599, LRA784.
Prestolite: 66021149, 66021413, 66021416, 66021436, 66021459, 66021579, PBNA0110.
General motors: 90337046, 90349208, 90488053.
Magneti marelli: 943356211, 943356657, 943356660010, 943356671010, 943356732, 943356732010.
Krauf: ALB0352.
Motorherz: ALB0352WA.
HC-Parts: CA1466IR, CA264IR, CA352IR.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

OPEL ASCONA C (81_, 86_, 87_, 88_) 1.6 S (1981-1986)
OPEL ASCONA C (81_, 86_, 86_, 87_, 88_) 1.8 i (1982-1986)
OPEL ASCONA C (81_, 86_, 87_, 88_) 1.8 E (1985-1986)
OPEL ASCONA C (81_, 86_, 87_,88_) 1.6 (1981-1987)
OPEL ASCONA C (81_, 86_, 87_, 88_) 2.0 i (1986-1988)
OPEL ASCONA C (81_, 86_, 87_, 88_) 2.0 i KAT (1986-1988)
OPEL ASCONA C (81_, 86_, 87_, 88_) 1.8 (1987-1988)
OPEL ASCONA C (81_, 86_, 87_, 88_) 2.0 i (1987-1988)
OPEL ASCONA C (81_, 86_, 87_, 88_) 2.0 i GT (1987-1988)
OPEL ASCONA C (84_, 89_) 1.6 S (1981-1986)
OPEL ASCONA C (84_, 89_) 1.8 i (1982-1986)
OPEL ASCONA C (84_, 89_) 1.8 E (1985-1986)
OPEL ASCONA C (84_, 89_) 1.6 (1981-1988)
OPEL ASCONA C (84_, 89_) 2.0 i (1986-1988)
OPEL ASCONA C ( 84_, 89_) 2.0 i KAT (1986-1988)
OPEL ASCONA C (84_, 89_) 1.8 (1987-1988)
OPEL ASCONA C (84_, 89_) 2.0 i GT (1987-1988)
OPEL KADETT E (39_, 49_) 1.6 S (1984-1986)
OPEL KADETT E (39_, 49_) 1.8 i (1984-1986)
OPEL KADETT E (39_, 49_) 1.8 i (1985-1986)
OPEL KADETT E (39_, 49_) 1.8 S (1987-1991)
OPEL KADETT E (39_, 49_) 2.0 i (1987-1991)
OPEL KADETT E (39_, 49_) 2.0 i KAT (1987-1991)
OPEL KADETT E Combo (38_, 48_) 1.6 (1986-1993)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.6 S (1984-1986)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.8 GSI (1984-1986)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.8 E (1985-1986)
OPEL KADETT E (33_ , 34_, 43_, 44_) 1.8 i (1985-1991)
OPEL KADETT E (33_, 34_, 43_, 44_) 2.0 GSI (1986-1991)
OPEL KADETT E (33_, 34_, 43_, 44_) 2.0 GSI KAT (1986- 1991)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.8 S (1987-1991)
OPEL KADETT E (43B_) 2.0 i (1986-1993)
OPEL KADETT E (43B_) 2.0 i KAT (1986-1993) )
OPEL KADETT E (35_, 36_, 45_, 46_) 1.6 S (1984-1986)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.8 i (1984-1986)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.8 E (1985-1986)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.8 i (1985-1991)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.8 S (1987-1991)
OPEL KADETT E (35_ , 36_, 45_, 46_) 2.0 i (1987-1991)
OPEL KADETT E (35_, 36_, 45_, 46_) 2.0 i KAT (1987-1991)
OPEL KADETT E (37_, 47_) 1.8 i (1984-1992)
OPEL MANTA B (58_, 59_) 1.8 S (1982-1987)
OPEL MANTA B CC (53_, 55_) 1.8 S (1982-1987)
OPEL OMEGA A (16_, 17_, 19_) 1.8 N (1986-1987)
OPEL OMEGA A (16_, 17_, 19_) 1.8 N (1986-1988)
OPEL OMEGA A (16_, 17_, 19_) 1.8 S (1986-1994)
OPEL OMEGA A (16_, 17_, 19_) 1.8 (1986-1994)
OPEL OMEGA A (16_, 17_, 19_) 2.0 (1986-1994)
OPEL OMEGA A (16_, 17_, 19_) 2.0 i (1986-1994)
OPEL OMEGA A (16_, 17_, 19_) 1.8 (1987-1994)
OPEL OMEGA A (66_, 67_) 1.8 N (1986-1987)
OPEL OMEGA A (66_, 67_) 1.8 S (1986-1994)
OPEL OMEGA A (66_, 67_) 1.8 (1986-1994)
OPEL OMEGA A (66_, 67_) 2.0 (1986-1994)
OPEL OMEGA A (66_, 67_) 2.0 i (1986-1994)
OPEL OMEGA A (66_, 67_) 1.8 (1987-1994)
OPEL REKORD E (17_-19_, 11_, 14_, 16_) 1.8 (1982-1986)
OPEL REKORD E (17_-19_, 11_, 14_, 16_) 1.8 S (1982-1986)
OPEL REKORD E (17_-19_, 11_, 14_, 16_) 1.8 E (1985-1986)
OPEL REKORD E (61_, 66_, 67_) 1.8 (1982-1986)
OPEL REKORD E (61_, 66_, 67_) 1.8 S (1982-1986)
OPEL REKORD E (61_, 66_, 67_) 1.8 E (1985-1986)
VAUXHALL ASTRA Mk II Belmont 1.8 i (1985-1991)
VAUXHALL ASTRA Mk II 1.8 GTE (1984-1991)
VAUXHALL ASTRA Mk II 2.0 GTE (1986-1991)
VAUXHALL CARLTON Mk III 1.8 N (1986-1987)
VAUXHALL CARLTON Mk III 2.0 (1986-1994)
VAUXHALL CARLTON Mk III 2.0 (1990-1994)
VAUXHALL CARLTON Mk III 1.8 N (1986-1987)
VAUXHALL CARLTON Mk III 1.8 S (1986-1994)
VAUXHALL CARLTON MK III 2.0 (1986-1994)
VAUXHALL CARLTON Mk III 2.0 i (1990-1994)
VAUXHALL CARLTON Mk III 2.0 (1990-1994)
