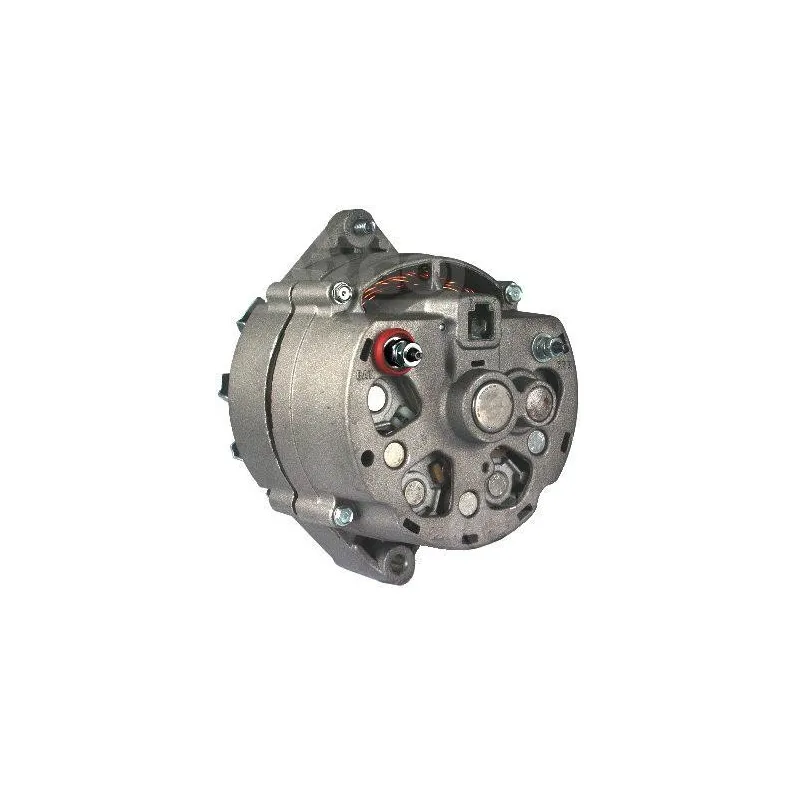

Alternator 14 Volts 60 A, Delco 10456414, Caterpillar 86385
  • Alternator 14 Volts 60 A, Delco 10456414, Caterpillar 86385
  • Alternator 14 Volts 60 A, Delco 10456414, Caterpillar 86385
  • Alternator 14 Volts 60 A, Delco 10456414, Caterpillar 86385
  • Alternator 14 Volts 60 A, Delco 10456414, Caterpillar 86385

Alternator 14 Volts 60 A, Delco 10456414, Caterpillar 86385

110075
€89.60
VAT included
€74.67 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)





  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

SPECIFICATIONS:

Electrical Specifications

Voltage     14
Amp     60

Physical Specifications

D     Hole Diameter     M10
G     Lug Hole Diameter     M8
B     Arm Width     51.00
E     Tensioner Angle     60
H     Pulley Dia.     67.75
A     Dist. pulley     75.00
i     Pulley grooves     1
j     Radius     82.50
j     Radius     81.50
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL35
R     Total length mm     176.00

More information

Fan     Ef
Pulley     Pulley
Notes     Regulator: 130505.

REPLACES THE FOLLOWING PART NUMBERS:

Delco: 10456414, 10456415, 1100533, 1100553, 1100557, 1100558, 1100566, 1100567, 1100568, 1100569, 1100570, 1100571, 1100572, 1100590, 1100591, 1100600, 1100601, 1100605, 1100613, 1100616, 1100617, 1100618, 1100620, 1100621, 1100622, 1100623, 1100624, 1100625, 1100627, 1100628, 1100629, 1100630, 1100631, 1100632, 33, 1100634, 1100636, 1100637, 1100638, 1100639, 1100640, 1100642, 1100646, 1100647, 1100648, 1100649, 1100651, 1100655, 1100656, 1100657, 1100658, 1100659, 1100661, 1100662, 1100663, 1100664, 1100665, 1100668, 1100669, 1100670, 1100671, 72, 1100674, 1100675, 1100676, 1100677, 1100678, 1100679, 1100680, 1100681, 1100682, 1100683, 1100684, 1100686, 1100687, 1100688, 1100689, 1100690, 1100691, 1100692, 1100693, 1100694, 1100695, 1100696, 1100697, 1100698, 1100699, 1100700, 01, 1100702, 1100703, 1100704, 1100705, 1100706, 1100707, 1100708, 1100709, 1100710, 1100711, 1100713, 1100714, 1100719, 1100720, 1100724, 1100725, 1100726, 1100727, 1100728, 1100729, 1100730, 1100731, 1100733, 1100734, 1100736, 1100737, 38, 1100739, 1100740, 1100741, 1100742, 1100744, 1100745, 1100750, 1100752, 1100755, 1100758, 1100759, 1100760, 1100761, 1100762, 1100763, 1100764, 1100765, 1100767, 1100768, 1100769, 1100770, 1100771, 1100772, 1100774, 1100775, 1100777, 78, 1100779, 1100780, 1100781, 1100782, 1100784, 1100787, 1100788, 1100789, 1100790, 1100791, 1100793, 1100794, 1100795, 1100796, 1100797, 1100802, 1100803, 1100804, 1100805, 1100807, 1100808, 1100809, 1100810, 1100811, 1100813, 1100814, 15, 1100816, 1100817, 1100818, 1100819, 1100820, 1100828, 1100834, 1100836, 1100837, 1100838, 1100839, 1100841, 1100842, 1100843, 1100845, 1100846,1100847, 1100849, 1100851, 1100856, 1100857, 1100860, 1100866, 1100870, 1100871, 1100875, 1100878, 1100879, 1100883, 1100885, 1100886, 1100888, 1100889, 1100891, 1100892, 1100893, 1100895, 1100896, 1100905, 1100906, 1100907, 1100908, 1100909, 1100910, 1100916, 1100917, 1100921, 1100931, 1100932, 1100933, 1100939, 1100943, 1100944, 1100945, 1100951, 1102370, 1102943, 1102944, 1102945, DRZ0102, DRZ0206.
Cargo: 110075.
Box: 130101Z.
Hyster: 1323659, 138077, 138576, 138724, 13874, 139196, 169292, 187458, 3000970, 3000974.
Clark: 1537217, 567252.
Waiglobal: 20-101-9.
Caterpillar: 2S945, 3L5278, 86385.
International harv.: 393820R91, 532176R91.
Wps: 48982, 7122N, 7122R.
Krauf: ALD0916.
Motorherz: ALD0916WA.
Lucas: LRA01068, LRA01214, LRA01219.
HC- Shares: UA916.








Product Details
110075
New

Data sheet

Tension
14 Volts
Ampérage
60A

Specific References

UPC
400000041315
EAN13
4000000041252
