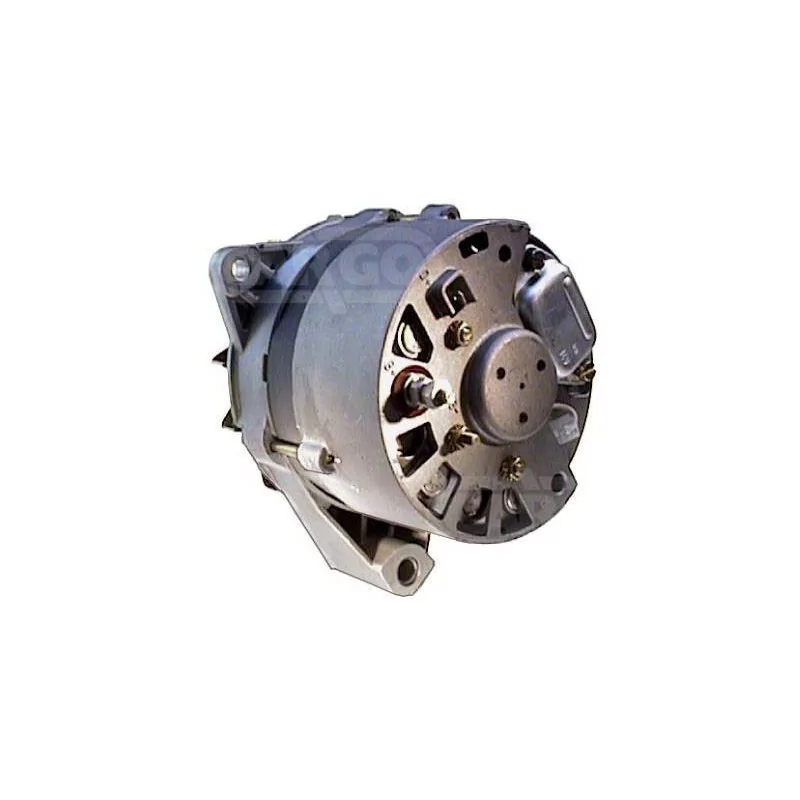

Alternator 14 Volts 55 A, Volkswagen 114901010, Delco DRA0164
  • Alternator 14 Volts 55 A, Volkswagen 114901010, Delco DRA0164
  • Alternator 14 Volts 55 A, Volkswagen 114901010, Delco DRA0164
  • Alternator 14 Volts 55 A, Volkswagen 114901010, Delco DRA0164
  • Alternator 14 Volts 55 A, Volkswagen 114901010, Delco DRA0164

Alternator 14 Volts 55 A, Volkswagen 114901010, Delco DRA0164

110542

14 Volts - 55 Amp - Volkswagen - Krauf - Delco - Lucas

€193.08
VAT included
€160.90 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)





  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

FEATURES:

Electrical Specifications

Voltage     14
Amp     55

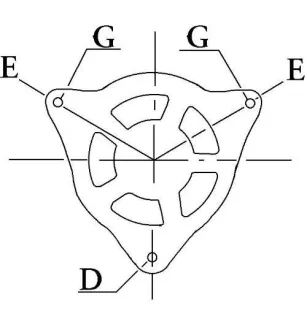

Physical Specifications

D     Hole Diameter     10.00
G     Lug Hole Diameter     8.00
B     Arm Width     50.00
E     Tensioner Angle     10
E     Adjustable Support Belt/Pos. 2     50
H     Pulley Dia. 73.00
A     Dist. pulley     79.00
i     Pulley grooves     1

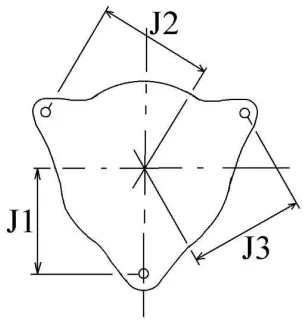

j     Radius     85.00
j     Radius 2     79.50
j     Radius 3     79.50
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL_NA
G     Holes for Adjustable support belt 2     8.00
R     Total length mm     165.00
Made     Magneton

More information

Fan     Ef
Pulley     Pulley

REPLACES THE FOLLOWING PART NUMBERS:

Volkswagen: 114901010, 443113516120, 443113516121, 443113516180, 443113516181, 9516061.
Magneton: 114901010, 443113516051, 443113516120, 443113516121, 443113516180, 443113516181, 443113516184, 9516050, 9516051, 9516060, 9516061.
Krauf: ALG0292.
Motorherz: ALG0292WA.
HC-Parts: CA292.
Delco: DRA0164.
Lucas: LRA01087, LRA240.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

SKODA 105,120 (742) 1.0 105 S,L,GL (1976-1983)
SKODA 105,120 (742) 1.0 105 S,L (1976-1990)
SKODA 105,120 (742) 1.2 120 L (1976-1990)
SKODA 105,120 (742) 1.2 120 LS (1976-1990)
SKODA 105,120 (744) 1.0 105 S,L,LS (1983-1990)
SKODA 105,120 (744) 1.2 120 L (1983-1990)
SKODA 105,120 (744) 1.2 120 GLS (1983-1990)
105,120 (744) 1.2 120 L (1987-1990)
SKODA 105,120 (744) 1.0 105 S,L (1988-1990)
SKODA 110 1.1 L (1969-1982)
SKODA 110 1.1 LS (1970-1982)
SKODA 110 1.1 R (1970-1982)
SKODA 130 L,GL (1985-1991)
SKODA 130 GL (1987-1991)
SKODA 130 G,GL ​​(S136) 991)
SKODA 130 GL (S135) (1988-1991)

Product Details
110542
New

Data sheet

Tension
14 Volts
Ampérage
55A

Specific References

UPC
400000042015
EAN13
4000000041955
