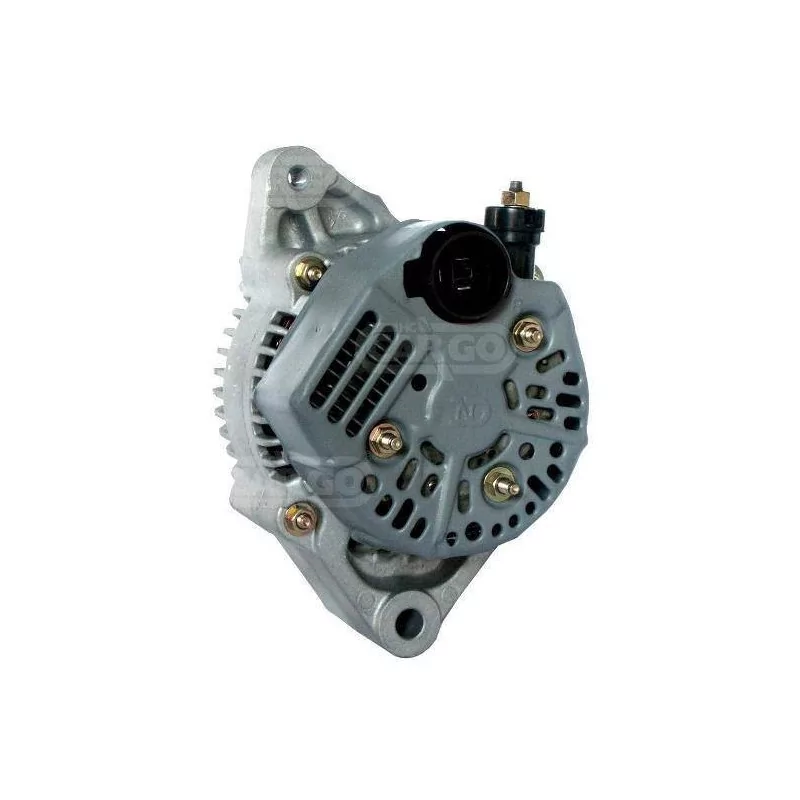

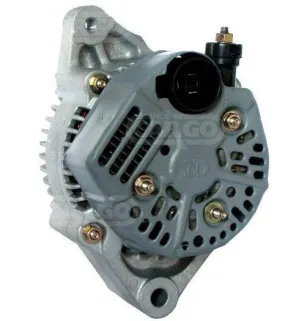

Alternator 14 Volts 55 A, Bosch 0986035111, Honda 31100-PE0-003, Valeo 436515

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     55

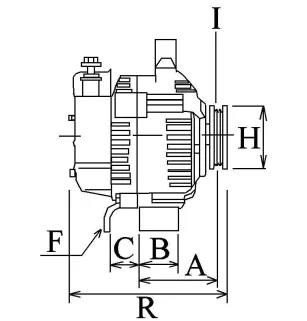

Physical Specifications

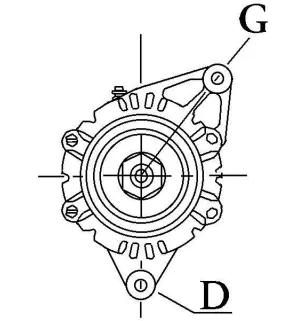

D     Hole Diameter     10.25
G     Lug Hole Diameter     M8
B     Arm Width     57.90
E     Tensioner Angle     4
H     Pulley Dia.     61.50
A     Dist. pulley     90.45
i     Pulley grooves     3

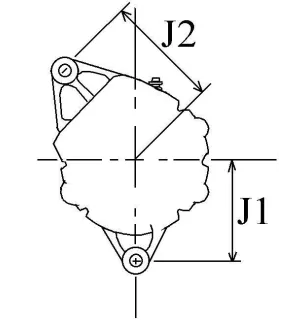

j     Radius     77.55
j     Radius 2     83.60
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL11
R     Total length mm     153.00

More information
Fan     If
Pulley     Serpentine pulley
Regulator type     Ir

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0986035111.
Waiglobal: 1-1015-01, 1-1894-01MI.
Denso: 100211-1261, 100211-1270, 100211-1271, 100211-1278, 100211-1381, 100211-2210, 100211-2211, 100211126, 1002111261, 100211127, 1002111270, 1002111271, 1002111278, 1002111381, 100211221.
Wps: 14757, 14757N, 14757R.
Honda: 31100-PE0-003, 31100-PE0-004, 31100-PE0-013, 31100-PE0-014, 31100-PE0-020, 31100-PE0-023, 31100-PE0-024, 31100-PE0-034, 31100-PE0-044, 31100-PE0-924, 31100PE0003, 31100PE0004, 31100PE0013, 31100PE0014, 31100PE0020, 31100PE0023, 31100PE0023ES, 31100PE0024, 31100PE003, 31100PE0033, 31100PE0034, 31100PE0044, 31100PE0920, 31100PE0924, CHA08, CHA19, CHA33, PEO014, PEO034.
Valeo: 436515, VA250.
Mitsubishi: A001T01591, A001T40191, A001T41291, A1T01591, A1T23479, A1T23579, A1T40191, A1T41291.
Krauf: ALN0113.
Motorherz: ALN0113WA.
Delco: DRA3023.
HC-Parts: JA113IR.
Lucas: LRA00588, LRA588.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

HONDA CIVIC I (AF, AS) 1.5 i (AF) (1983-1986)
HONDA CIVIC I (AF, AS) 1.6 i 16V (AS) (1986-1987)
HONDA CIVIC I Shuttle (AN, AR) 1.5 (AN) (1983-1987)
HONDA CIVIC I Shuttle (AN, AR) 1.5 4WD (AR) (1985-1987)
HONDA CIVIC III Hatchback (AL, AJ, AG, AH) 1.3 (AG) (1983-1987)
HONDA CIVIC III Hatchback (AL, AJ, AG, AH) 1.5 GL (AH) (1983-1987)
HONDA CIVIC III Hatchback (AL, AJ, AG, AH) 1.2 (AL) (1984-1987)
HONDA CIVIC III Hatchback (AL, AJ, AG, AH) 1.5 GT (AH) (1985-1987)
HONDA CIVIC III Hatchback (AL, AJ, AG, AH) 1.5 GTI (AH) (1986-1987)
HONDA CIVIC III (AM, AK, AU) 1.3 (1983-1987)
HONDA CIVIC III (AM, AK, AU) 1.5 GL (1983-1987)
HONDA CIVIC III (AM, AK, AU) 1.2 (1985-1987)
HONDA CIVIC III (AM, AK, AU) 1.5 GT (1985-1987)
HONDA CIVIC III (AM, AK, AU) ) 1.5 GTI (1986-1987)
HONDA CRX I (AF, AS) 1.5 i (AF) (1983-1986)
HONDA CRX I (AF, AS) 1.6 i 16V (AS) (1986-1987)
HONDA INTEGRA (DA) 1.5 (1985-1989)
ROVER 200 (XH) 213 S (1985-1989)
