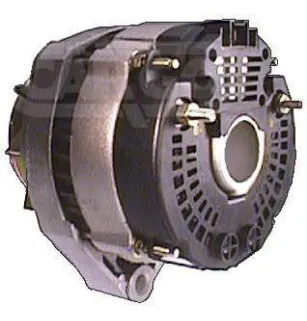

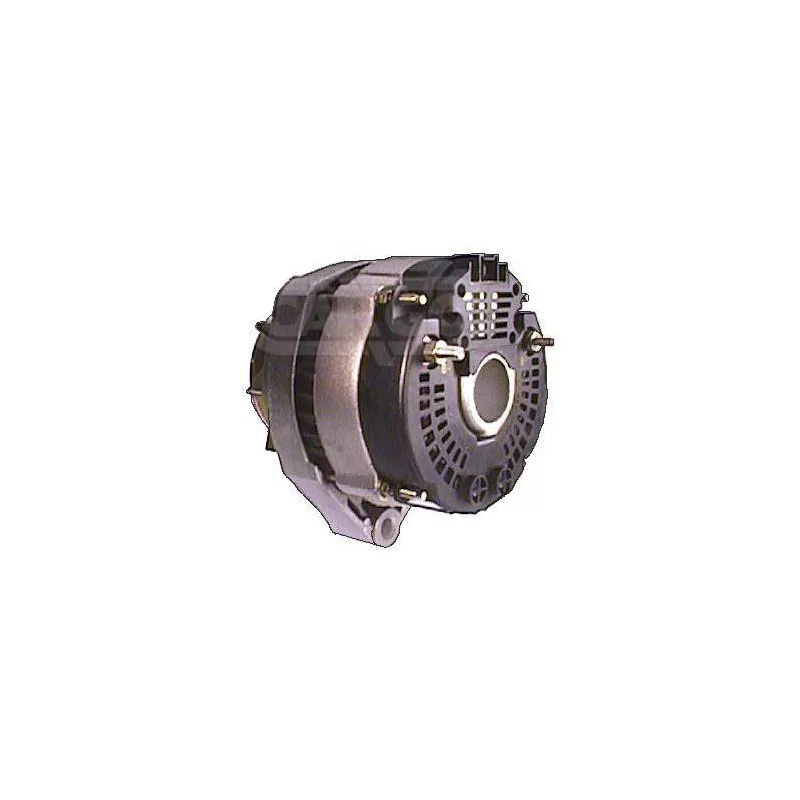

Alternator 14 Volts 50 A, Valeo 2541477, 436373, Lucas LRA02328

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     50

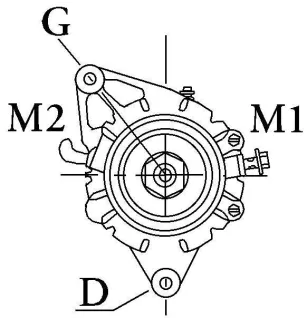

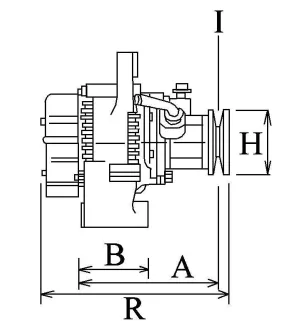

Physical Specifications
D     Hole Diameter     10.00
G     Lug Hole Diameter     7.40
B     Arm Width     40.00
E     Tensioner Angle     52
H     Pulley Dia.     86.80
A     Dist. pulley     59.45
i     Pulley grooves     1
j     Radius     82.70
j     Radius 2     86.00
k     Position B +     M6
n     Rotation     Counterclockwise
o     Regulator connector     PL26
R     Total length mm     164.50
Manufactured     Valeo

More information
Fan     Ef
Pulley     Pulley
Regulator type   Ir
Vacuum Pump     Without

REPLACES THE FOLLOWING PART NUMBERS:

Valeo: 2541477, 436373, 439186, A13N237.
Krauf: ALV3402.
Lucas: LRA02328.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

CITROEN BX (XB-_) 14 E (1982-1988)
CITROEN BX (XB-_) 14 E (1983-1993)
CITROEN BX (XB-_) 14 E (1985-1993)
PEUGEOT 205 I (741A/C) 1.0 (1983-1987)
PEUGEOT 205 I (741A/C) 1.1 (1983-1987)
PEUGEOT 205 I (741A/C) 1.4 (1983-1987)
PEUGEOT 205 I (741A/C) 1.4 (1985-1987)
PEUGEOT 205 I (741B, 20D) 1.4 CT (1986-1988)
PEUGEOT 205 II (20A/C) 1.4 (1987-1989)
PEUGEOT 205 II (20A/C) 1.4 (1988-1989)
