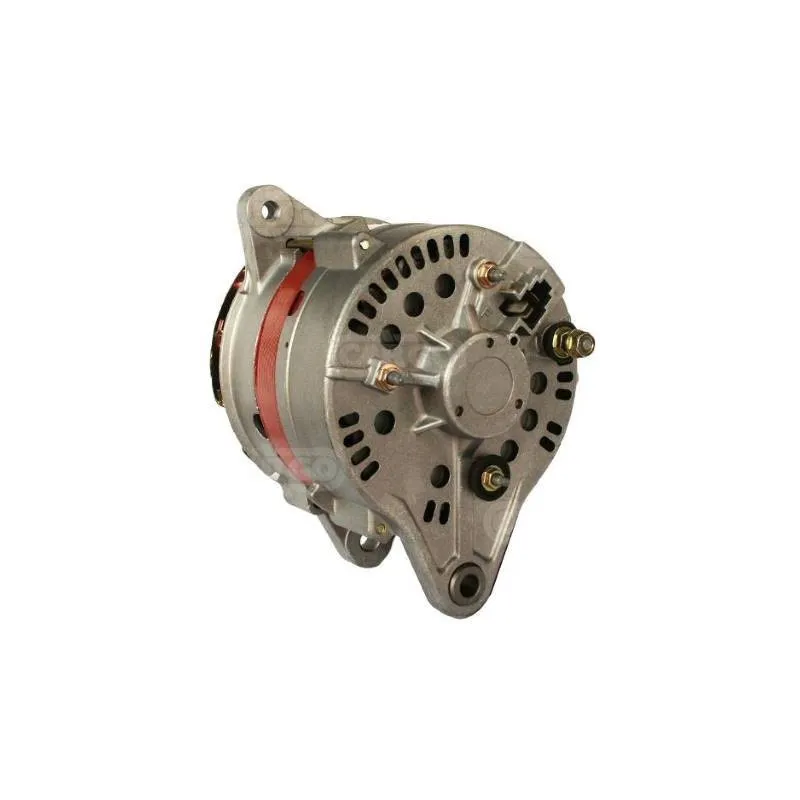

Alternator 14 volts 50 A, Bosch 0986034321, Valeo 436540
  • Alternator 14 volts 50 A, Bosch 0986034321, Valeo 436540
  • Alternator 14 volts 50 A, Bosch 0986034321, Valeo 436540
  • Alternator 14 volts 50 A, Bosch 0986034321, Valeo 436540
  • Alternator 14 volts 50 A, Bosch 0986034321, Valeo 436540

Alternator 14 volts 50 A, Bosch 0986034321, Valeo 436540

110250
€122.28
VAT included
€101.90 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)





  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

SPECIFICATIONS:

Electrical Specifications

Voltage     14
Amp     50

Physical Specifications

D     Hole Diameter     10.30
G     Lug Hole Diameter     M8
B     Arm Width     12.00
E     Tensioner Angle     6
C     Bracket Distance     66.50
H     Pulley Dia.     55.00
A     Dist. pulley     41.00
i     Pulley grooves     5
j     Radius     88.00
j     Radius 2     88.00
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL15
R     Total length mm     165.50

More information

Fan     Ef
Pulley     Serpentine pulley

Notes     Regulator: HC- 130627.

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0986034321.
Denso: 021000-6771, 021000-6772, 121000-0451, 121000-1010, 121000-1011, 121000-1012.
Waiglobal: 1-2839-01ND.
Wps: 20687, 20687N.
Messmer: 210277, 210277R.
Toyota: 27020-16030, 27020-16040, 27020-34021, 27020-63010, 27060-16030.
Valeo: 436540, VA242.
Magneti marelli: 943356922010.
Delco: DRA4321.
HC-Parts: JA140.
Lucas: LRA00687.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

TOYOTA CARINA II (_T15_) 1.6 (AT151) (1983-1987)
TOYOTA CARINA II (_T15_) 1.6 (AT151) (1986-1987)
TOYOTA CARINA II (_T15_) 1.6 (AT151) (1983-1987)
TOYOTA CELICA (RA4_, TA4_) 1.6 ST (TA4C, TA60) (1977-1981)
TOYOTA COROLLA (_E8_) 1.3 (AE80) (1983-1984)
TOYOTA COROLLA (_E8_) 1.6 (AE82) (1983-1987)
TOYOTA COROLLA (_E8_) 1.3 (AE80/EE80) (1984-1987)
TOYOTA COROLLA (_E8_) 1.6 (AE82) (1985-1987)
TOYOTA COROLLA (_E8_) 1.6 (1985-1988)
TOYOTA COROLLA (_E9_) 1.6 (AE92) (1987-1989)
TOYOTA COROLLA Compact (_E9_) 1.6 (AE92) (1987-1992)
TOYOTA COROLLA FX Compact (E8B) 1.3 (1985-1987)
TOYOTA COROLLA FX Compact (E8B) 1.6 (1987-1987)
TOYOTA COROLLA (_E8_) 1.3 (AE80) (1983-1984)
TOYOTA COROLLA (_E8_) 1.6 (AE82) (1983-1987)
TOYOTA COROLLA (_E8_) 1.3 (EE80) (1985-1987)
TOYOTA COROLLA (_E8_) 1.6 (AE82) (1985-1987)
TOYOTA COROLLA (_E8_) 1.6 (1985-1988)
TOYOTA COROLLA (_E9_) 1.6 (AE92) (1987-1992)
TOYOTA COROLLA (_E9_) 1.6 (1987-1992)
TOYOTA LAND CRUISER (PZJ7_, KZJ7_, HZJ7_, BJ7_, LJ7_, RJ7_) 2.4 (RJ70_V, RJ73_V) (1988-1996)

Product Details
110250
New

Data sheet

Tension
14 Volts
Ampérage
50A

Specific References

UPC
400000041605
EAN13
4000000041542
