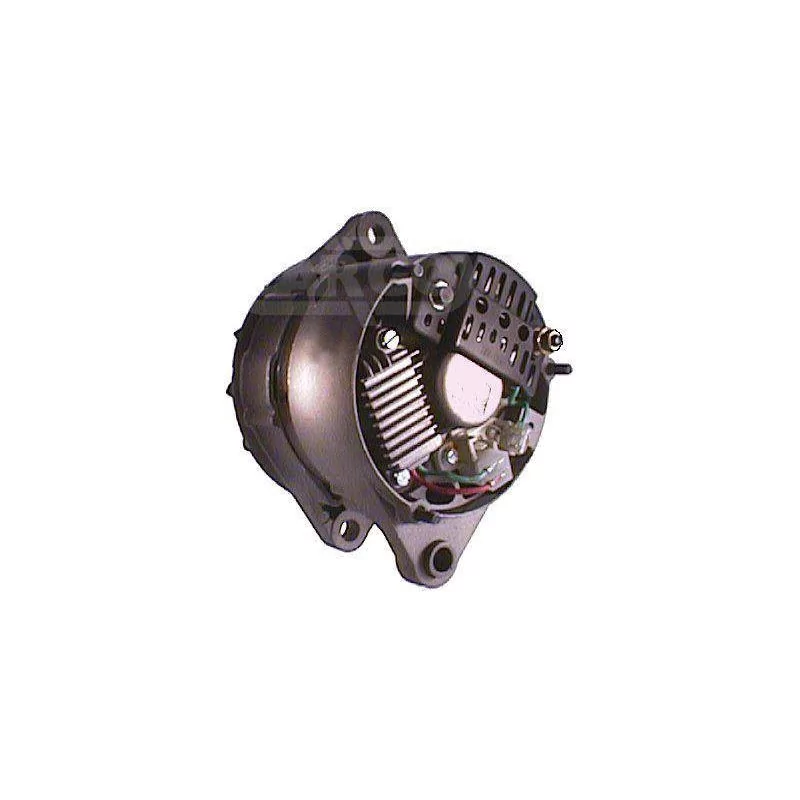

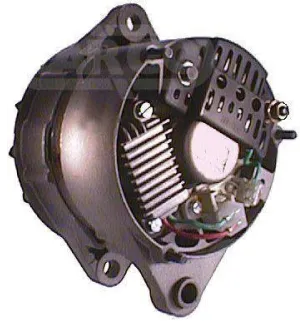

Alternator 14 Volts 45 A, Bosch 0120489132, Delco 19025045, Fiat 4382200
  • Alternator 14 Volts 45 A, Bosch 0120489132, Delco 19025045, Fiat 4382200
  • Alternator 14 Volts 45 A, Bosch 0120489132, Delco 19025045, Fiat 4382200
  • Alternator 14 Volts 45 A, Bosch 0120489132, Delco 19025045, Fiat 4382200
  • Alternator 14 Volts 45 A, Bosch 0120489132, Delco 19025045, Fiat 4382200

Alternator 14 Volts 45 A, Bosch 0120489132, Delco 19025045, Fiat 4382200

111138

14 Volts - 45 Amp - FIAT - LANCIA - SEAT IBIZA

€187.38
VAT included
€156.15 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     45

Physical Specifications
D     Hole Diameter     12.60
G     Lug Hole Diameter     11.20
B     Arm Width     17.00
E     Tensioner Angle     60
C     Bracket Distance     63.00
H     Pulley Dia. 73.40
A     Dist. pulley     46.35
i     Pulley grooves     1
j     Radius     84.00
j     Radius 2     81.00
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL_NA
R     Total length mm     167.00

More information
Fan     Ef
Pulley     Pulley
Regulator type     Ir

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0120489132, 0120489133, 0120489672, 0120489673, 0120489740, 0120489741, 0120489920, 0120489921, 0986031410, 0986031411, 9120144208, 9120144209.
Delco: 19025045, DRA1410.
Fiat: 4382200, 4386883, 4392831, 4470411, 46231725, 77211411, 77510410, 77510411.
Ducellier: 514014.
Magneti marelli: 63303780, 63305000, 63305100, 63305130, 63307100, 63307120, 943321071.
Femsa: ALS12N-24, ALS12N-55, ALS12N-56.
HC-Parts: CA119IR.
Lucas: LRA00193, LRA00269, LRA00307.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

FIAT 131 1.3 Super Mirafiori (1978-1980)
FIAT 131 1.3 Mirafiori (1974-1981)
FIAT 131 1.6 (S) (1974-1981)
FIAT 131 2.0 Racing (1978-1981)
FIAT 131 1.6 Super Mirafiori (A) (1979-1982)
FIAT 131 1.4 Super Mirafiori (1981-1983)
FIAT 131 1.6 (1976-1984)
FIAT 131 1.6 Super (1978-1984)
FIAT 131 1.4 Mirafiori (1980-1984)
FIAT 131 2.0 Super (1981-1984)
FIAT 131 Familiare/Panorama 1.6 CL (AF1) (1975-1978)
FIAT 131 Familiare/Panorama 1.3 Mirafiori (AF) (1975-1978)
FIAT 131 Familiare/Panorama 1.6 Super (1979-1981)
FIAT 131 Familiar/Panorama 1.3 Mirafiori (AF) (1975-1982)
FIAT 131 Familiare/Panorama 1.6 (1980-1984)
FIAT 131 Familiare/Panorama 1.4 Mirafiori (1981-1984)
FIAT 132 1.7 Special (A1) (1972-1974)
FIAT 132 1.7 GLS (A1) (1974-1975)
FIAT 132 1.7 GLS (A1) (1975-1977)
FIAT 132 2.0 (1977-1981)
FIAT 132 1.6 (1977-1981)
FIAT 132 1.6 (1976-1982)
FIAT 132 1.6 (1977-1982)
FIAT 132 2.0 i.e. (1980-1982)
FIAT ARGENTA (132A) 2000 (1978-1985)
FIAT ARGENTA (132A) 1600 (1981-1985)
FIAT ARGENTA (132A) 1600 i.e (1981-1985)
FIAT ARGENTA (132A) 2000 Volumex (1984-1985)
FIAT ARGENTA ( 132A) 2000 i.e. (1981-1986)
LANCIA BETA (828_B_) 1800 (828AB1) (1973-1976)
LANCIA BETA (828_B_) 2000 (828CB1) (1976-1978)
LANCIA BETA (828_B_) 1300 (828CB3) (1976-1982)
LANCIA BETA Spider (828BS) 1600 (828BS0) (1976-1982)
SEAT 132 1.8 (1973-1980)
SEAT IBIZA I (021A) 1.7 D (1984) -1993)
SEAT IBIZA I (021A) 1.7 D (1990-1993)
SEAT MALAGA (023A) 1.7 D (1985-1993)
SEAT MALAGA (023A) 1.5 i KAT (1986-1993)
SEAT MALAGA ( 023A) 1.2 i (1989-1993)
SEAT MALAGA (023A) 1.7 D (1990-1993)
SEAT MARBELLA (28) 0.9 KAT (1996-1998)
SEAT RONDA (022A) 1.2 (1983-1985)
SEAT RONDA (022A) 1.7 Diesel (1982-1986)
SEAT RONDA (022A) 1.4 (1982-1988)

Product Details
111138
New

Data sheet

Tension
14 Volts
Ampérage
45A

Specific References

UPC
400000044149
EAN13
4000000044086
