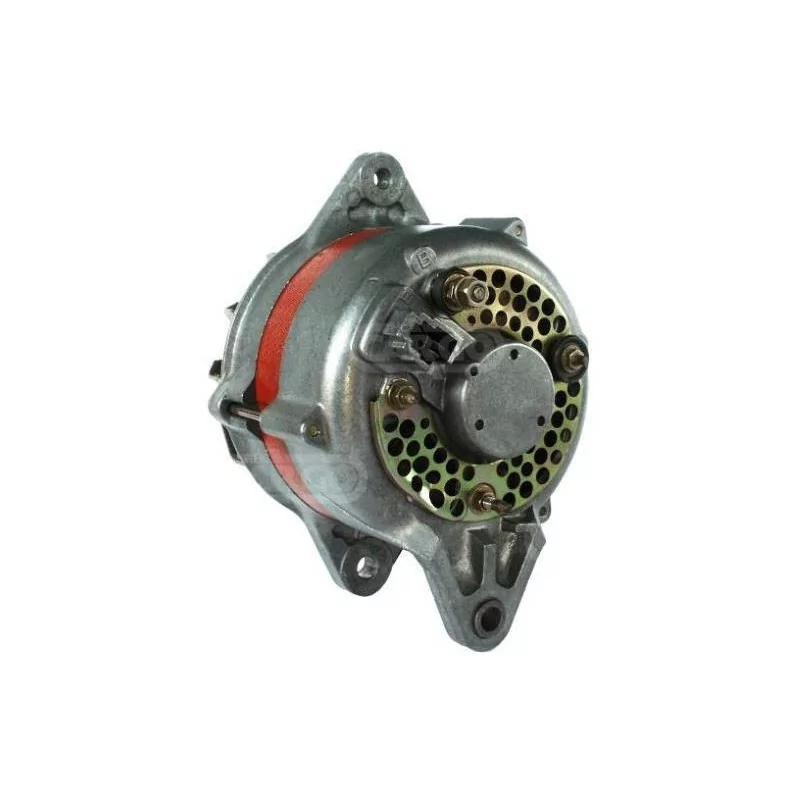

Alternator 14 Volts 40 A, Denso 021000-0140, Bosch 0986035511

SPECIFICATIONS:

Electrical Specifications

Voltage     14
Amp     40

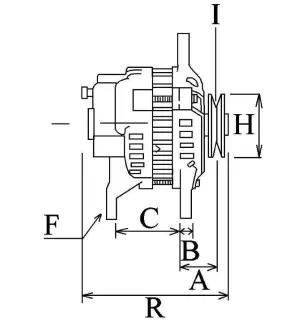

Physical Specifications

D     Hole Diameter     10.25
G     Lug Hole Diameter     M8-1.25
B     Arm Width     12.30
E     Tensioner Angle     60
C     Bracket Distance     76.00
H     Pulley Dia.     62.00
A     Dist. pulley     44.50
i     Pulley grooves     4

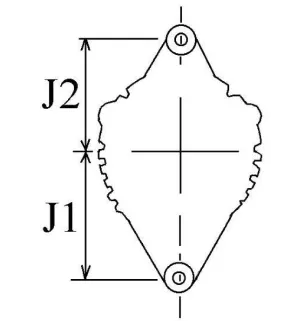

j     Radius     90.50
j     Radius 2     87.00
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL15
R     Total length mm     160.00

More information

Fan     Ef
Pulley     Serpentine pulley

Notes     Regulator: HC-130627.

REPLACES THE FOLLOWING PART NUMBERS:

Denso: 021000-0140, 021000-0441, 021000-5190, 021000-8270, 021000-8271, 021000-8310, 021000-8311, 0210000140, 0210000431, 0210000441, 0210005190, 0210008111, 0210008270, 0210008271, 021000831, 0210008310, 0210008311, 121000-0430, 121000-0431, 121000-0441, 121000-2970, 121000-7050, 121000-7500, 121000043, 1210000430, 1210000431, 1210000440, 1210000441, 1210002970, 1210007050.
Bosch: 0986035511, 0986035521.
Waiglobal: 1-1056-01ND.
Toyota: 27020-45031, 27020-72010, 27020-72030, 27020-72050, 27020-72060, 27020-72200, 27020-72230, 27020-72240, 2702045021, 2702045022, 2702045023, 2702045030, 2702045031, 2702045032, 2702045033, 2702072010, 2702072011, 2702072030, 2702072050, 2702072060, 2702072200.
Daihatsu: 27020-72030-000, 2702072030000.
Honda: 38760-657-812, CKZ27, CKZ29.
Valeo: 436533, VA244.
General motors: 94211350.
Magneti marelli: 943356923010.
Krauf: ALN0144, ALN5190.
Delco: DRA5521.
HC-Parts: JA144.
Lucas: LRA00691, LRA02579, LRA691.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

DAIHATSU FOURTRAK (F7, F8) 2.0 (1985-1993)
DAIHATSU FOURTRAK (F7, F8) 2.0 4x4 (1985-1993)
DAIHATSU FOURTRAK (F7, F8) 2.2 4x4 (1991-1993)
DAIHATSU ROCKY Hard Top (F7, F8) 2.0 (1985-1993)
DAIHATSU ROCKY Soft Top (F7, F8) 2.0 (1985-1993)
TOYOTA DYNA 2.0 (1984-1987)
TOYOTA HIACE II (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) 1.8 (H5G) (1983-1989)
TOYOTA HIACE II (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) 2.0 (H5G) (1985-1989)
TOYOTA HIACE II (LH5_, YH7_, LH7_, LH6_, YH6_,YH5_) 1.8 (1983-1989)
TOYOTA HIACE II (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) 2.0 (1984-1989)
TOYOTA HILUX II (RN6_, RN5_, LN6_, YN6_, YN5_, LN5_) 2.0 (1984-1986)
TOYOTA HILUX II (RN6_, RN5_, LN6_, YN6_, YN5_, LN5_) 2.2 4WD (YN106_, YN110_) (1987-1989)
TOYOTA HILUX II ( RN6_, RN5_, LN6_, YN6_, YN5_, LN5_) 1.8 (YN85_, YN90_) (1988-1994)
TOYOTA LITEACE (YM2_, CM2_, KM2_) 1.8 D (1982-1985)
TOYOTA MODELL F (_R2_, 31) 1.8 De Luxe (YR20 ) (1982-1984)
TOYOTA MODELL F (_R2_, 31) 2.0 Super (YR21) (1984-1988)
VW TARO 1.8 (1989-1994)
VW TARO 2.2 (1989- 1994)
