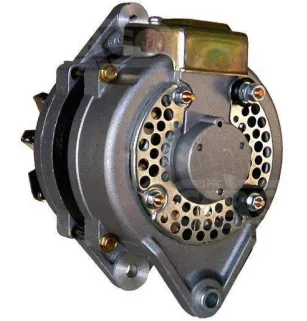

Alternator 14 Volts 40 A, Bosch 0986032601, Caterpillar 0R9996, Hyundai 104846A, Mitsubishi A002T02671

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     40

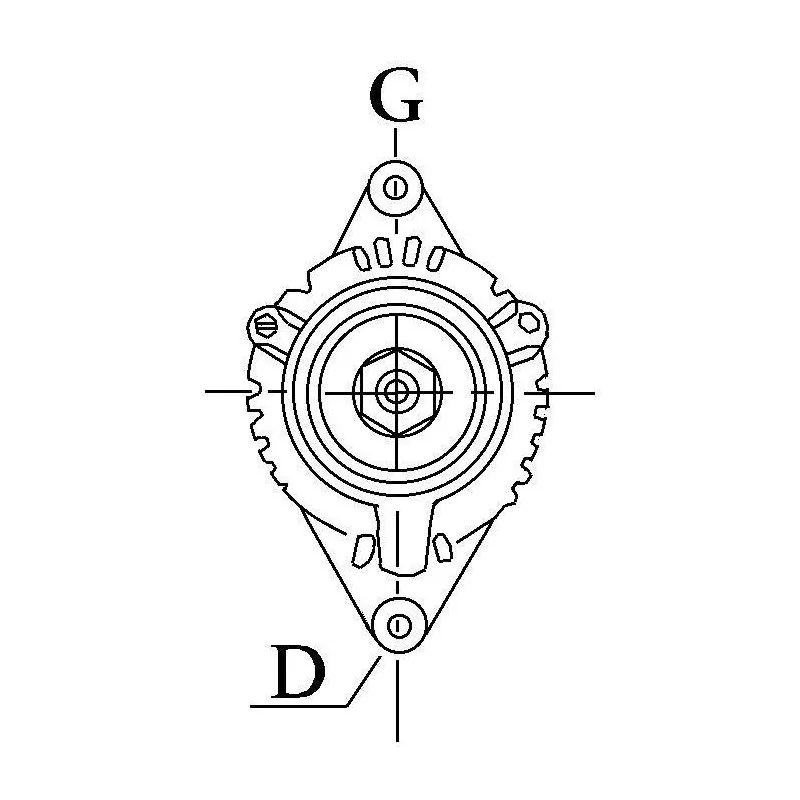

Physical Specifications
D     Hole Diameter     9.50
G     Lug Hole Diameter     5/16" UNC
B     Arm Width     13.50
E     Tensioner Angle     60
C     Bracket Distance     73.40
H     Pulley Dia.     89.00
A   Pulley distance 45.50
i Pulley grooves 1
j Radius 84.00
j Radius 2 84.00
k Position B + M6 n Rotation Cr
o Regulator connector PL_NA R Total length mm 170.00

More information Fan Ef
Pulley Pulley
Regulator type Ir
Vacuum pump Without

REPLACES THE FOLLOWING PART NUMBERS:

Denso: 021000-8420, 0210007360, 0210008420, 100211-0010, 100211-0014, 100211-0230, 1002110010, 1002110014, 100211012, 1002110140, 1002110142, 1002110230.
Bosch: 0986032601, 0986035241.
Caterpillar: 0R9996, 7N4784, 7N4787, 7N6118.
Waiglobal: 1-2287-01ND.
Hyundai: 104846A.
Cargo: 110140.
Wps: 12001N.
Valeo: 432767, 436499, 436747, A13N26, A13N93.
Mitsubishi: A002T02671, A2T12371, A2T12671, A2T16371, A2T16371A, A2T16387, A2T16871, A2T22771, A2T22991, A2T23171, A3T30271, A5T10271, A5T15171, A5T15177, A5T16871, A5T20571, A5T20577, A5T30271, AG2045K, AQ2240K1, AQ2245K, AQ2245K1, AQ2250K, AQ2250K1, AQ2250L1, MD003518, MD006182, MD006187, MD006197, MD007100, MD007509, MD009052, MD009053, MD009054, MD009071, MD015040, MD015041, MD034130, MD034131, MD034132.
Krauf: ALM0349, ALN5215.
Delco: DRA0259.
HC-Parts: JA150IR.
Lucas: LRA263, LRA486, LRA556.
