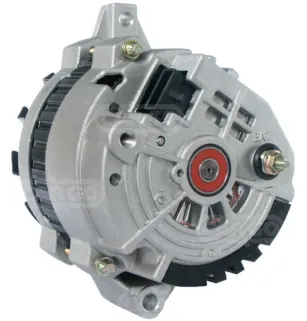

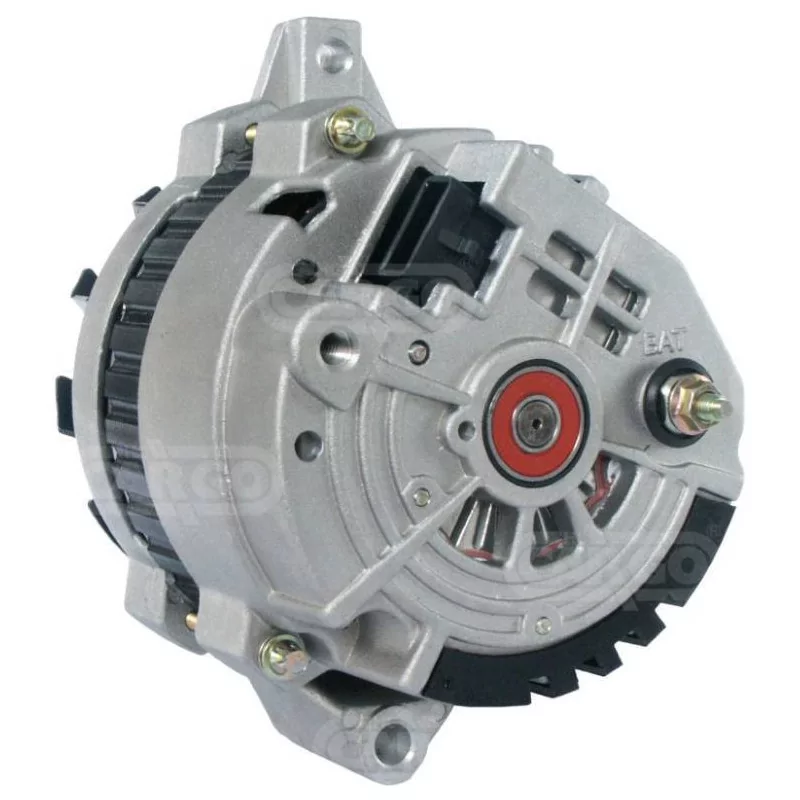

Alternator 14 Volts 105 A, Delco 10463007, Krauf ALD0958, Lucas LRA01652

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     105

Physical Specifications
D     Hole Diameter     10.20
G     Lug Hole Diameter     8.00
B     Arm Width     51.00
E     Tensioner Angle     60
j     Radius     84.00
j     Radius 2     83.15
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL24
R     Total length mm     170.30

More information
Fan     Ef
Pulley     Without
Regulator type     Ir
Remarks     Replaces: CS130.

REPLACES THE FOLLOWING REFERENCES:

Waiglobal: 1-1638-32DR, 1-1638-33DR, 20-151-11-1, 20-151-22-1, 20-151-30, 20-151-31, 20-151-31-1, 20-151-32.
Delco: 10463007, 10480088, 1101127, 1101146, 1101179, 1101181, 1101186, 1101229, 1101264, 1101272, 1101273, 1101275, 1101292, 1101601, 1101843, DRZ0177.
Cargo: 112449.
Wps: 7888-11N, 7888-3N, 7888-7N.
Krauf: ALD0958.
Lucas: LRA01652.
HC-Parts: UA958IR.
