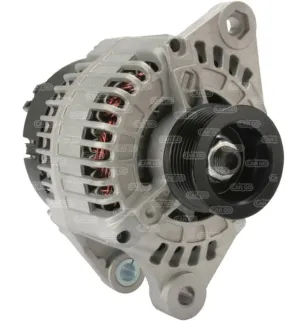

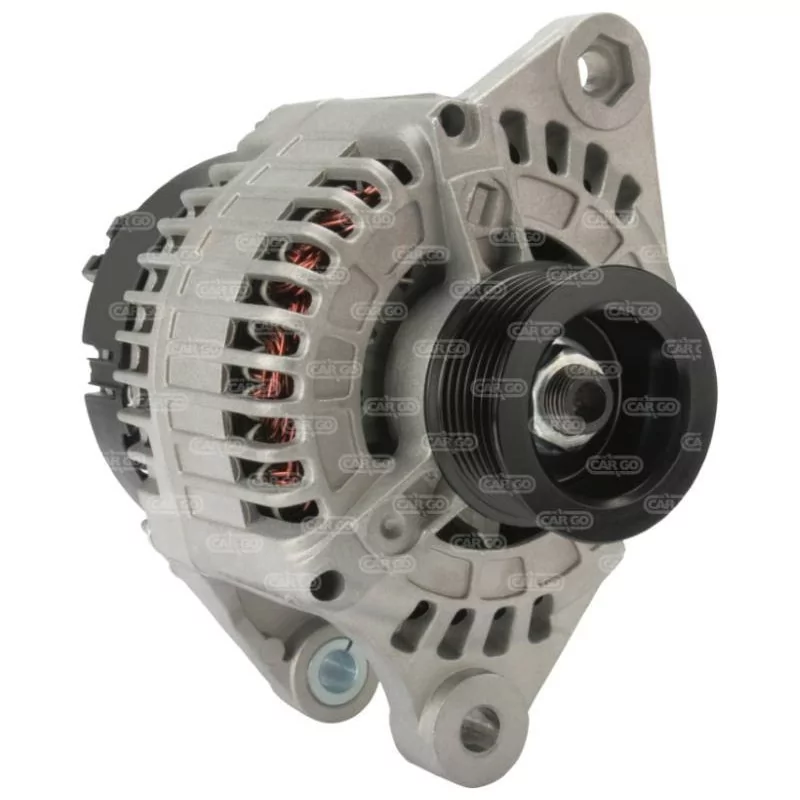

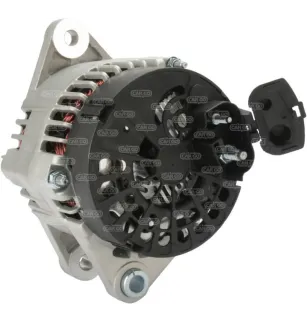

Alternator 14 Volts 100 A, Denso 101210-1860, Fiat 46765835, Alfa Romeo 60812583, Delco DRA4037, Lucas LRA02088

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     100

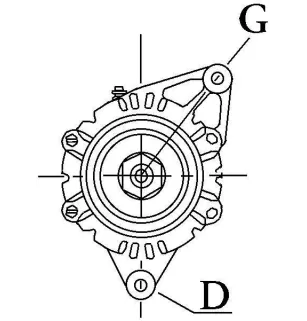

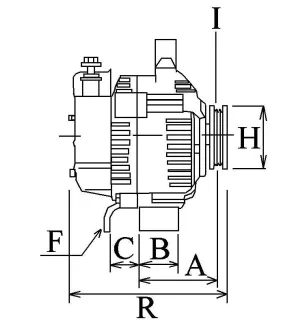

Physical Specifications
D     Hole Diameter     12.25
G     Lug Hole Diameter     10.80
B     Arm Width     22.00
E     Tensioner Angle     3
C     Bracket Distance     54.35
H     Pulley Dia.     61.90
A     Dist. pulley     41.00
i     Pulley grooves     7
j     Radius     90.00
j     Radius 2     90.00
k     Position B +     M8
n     Rotation     Cr
o     Regulator connector     PL_NA
R     Total length mm     207.00

More information
Fan     If
Pulley     Serpentine pulley
Regulator type     Ir
Vacuum pump   Without

REPLACES THE FOLLOWING PART NUMBERS:

Magneti marelli: 063321800, 063321800010, 63320226, 63320256, 63320292, 63321241, 63321246, 63321349, 63321800, 944390902010, MAN1104.
Denso: 101210-1860, 63321800, DAN632.
Cargo: 111533.
Messmer: 210631, 210631B.
Fiat: 46765835, 60812583, 71739603, 71773260, 7781075.
Alfa romeo: 60812583.
Elmot: A127IR14V100A.
Krauf: ALE1208.
Motorherz: ALE1208WA.
HC-Parts: CA1208IR.
Delco: DRA4037.
Lucas: LRA02088, LRB00423.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

ALFA ROMEO 145 (930) 1.6 i.e. (1994-1996)
ALFA ROMEO 145 (930) 1.8 i.e. 16V (1996-1998)
ALFA ROMEO 145 (930) 2.0 16V T.S. (1995-2001)
ALFA ROMEO 145 (930) 1.4 i.e. 16V T.S. (1996-2001)
ALFA ROMEO 145 (930) 1.6 i.e. 16V T.S. (1996-2001)
ALFA ROMEO 145 (930) 1.8 i.e. 16V (1998-2001)
ALFA ROMEO 145 (930) 2.0 16V Quadrifoglio (1998-2001) (1995-2001) ALFA ROMEO 146 (930) 1.4 i.e. 16V T.S. (1996-2001) (1996-2001) ALFA ROMEO 146 (930) 1.8 i.e. 16V T.S. (1996-2001) 1.8 i.e. 16V T.S. (1998-2001)
ALFA ROMEO 146 (930) 2.0 16V Quadrifoglio (1998-2001)
ALFA ROMEO 147 (937) 2.0 16V T.SPARK (937AXC1_) (2001-2010)
ALFA ROMEO 147 (937) 1.6 16V T.SPARK (937AXB1A) (2001-2010)
ALFA ROMEO 147 (937) 1.6 16V T.SPARK ECO (937AXA1A) (2001-2010)
ALFA ROMEO 155 (167) 1.8 T.S. (1992-1997)
ALFA ROMEO 155 (167) 2.0 T.S. 16V (167.A2G) (1995-1997)
ALFA ROMEO 155 (167) 1.7 T.S. 16V (1996-1997)
ALFA ROMEO 155 (167) 1.6 16V T.S. (1996-1997)
ALFA ROMEO 156 (932) 1.8 16V T.SPARK (932A3) (1997-2000)
ALFA ROMEO 156 (932) 2.0 16V T.SPARK (932A2) (1997-2000)
ALFA ROMEO 156 (932) 1.9 JTD (932B2) (1997-2000)
/>ALFA ROMEO 156 (932) 2.0 16V T.SPARK (932A21__) (2000-2002)
ALFA ROMEO 156 (932) 2.4 JTD (932B1) (1997-2003)
ALFA ROMEO 156 (932) 1.6 16V T.SPARK (932A4) (1997-2005)
ALFA ROMEO 156 (932) 1.8 16V T.SPARK (932A31__) (2000-2005)
ALFA ROMEO 156 (932) 2.4 JTD (932A1B__) (2000-2005)
ALFA ROMEO 156 Sportwagon (932) 1.8 16V T.SPARK (932A3) (2000-2000)
ALFA ROMEO 156 Sportwagon (932) 1.9 JTD (932B2) (2000-2000)
ALFA ROMEO 156 Sportwagon (932) 2.0 16V T.SPARK (932A2) ) (2000-2002)
ALFA ROMEO 156 Sportwagon (932) 2.0 16V T.SPARK (932B21__) (2000-2002)
ALFA ROMEO 156 Sportwagon (932) 2.4 JTD (932B1) (2000-2003)
ALFA ROMEO 156 Sportwagon (932) 1.6 16V T.SPARK. (932A4) (2000-2006)
ALFA ROMEO 156 Sportwagon (932) 1.8 16V T.SPARK (932B31__) (2000-2006)
ALFA ROMEO 166 (936) 2.0 T.Spark (936A3A__) ( 1998-2000)
ALFA ROMEO 166 (936) 2.4 JTD (936A2A__) (1998-2000)
ALFA ROMEO 166 (936) 2.0 T.Spark (936A3B__) (2000-2007)
ALFA ROMEO 166 (936) 2.4 JTD (936A2B__) (2000-2007)
ALFA ROMEO GTV (916C_) 2.0 T.SPARK 16V (916C2C) (1998-2000)
ALFA ROMEO GTV (916C_) 2.0 T.SPARK 16V (916.C2__, 916C2C00) (1995-2005)
ALFA ROMEO GTV (916C_) 1.8 16V (916C3) (1998-2005)
ALFA ROMEO SPIDER (916S_) 2.0 T.SPARK 16V (916S2B) (1998-2000)
ALFA ROMEO SPIDER (916S_) 2.0 T.SPARK 16V (916S2C00) (1995-2005)
ALFA ROMEO SPIDER (916S_) 1.8 16V (916S3) (1998-2005)
FIAT BARCHETTA (183) 1.8 16V (1995-2005)
FIAT BRAVA (182) 1.8 GT 16V (182.BC) (1995-2001)
FIAT BRAVA (182) 1.9 JTD 105 (1998-2001)
FIAT BRAVO I (182) 1.9 JTD 105 (1998-2001)
FIAT COUPE (FA/175) 1.8 16V (1996-2000)
FIAT MAREA (185) 2.4 TD 125 (1996-1999)
FIAT MAREA (185) 1.9 JTD 105 (1999-2001)
FIAT MAREA (185) 1.9 JTD 110 (2001-2002)
FIAT MAREA Weekend (185) 2.4 TD 125 (1996-1999)
FIAT MAREA Weekend (185) 1.9 JTD 105 (1999-2002)
FIAT MAREA Weekend (185) 1.9 JTD 110 (2001-2002)
FIAT MULTIPLA (186) 1.9 JTD 110 (2001-2002)
FIAT MULTIPLA (186) 1.9 JTD 105 (186AXB1A) (1999-2010)
FIAT PUNTO (188) 1.8 130 HGT (188.738, .718) (1999-...)
FIAT PUNTO (188) 1.9 JTD 80 (188.237, .257, .337, .357) (1999-...)
LANCIA DEDRA (835) 1.8 16V LE (835FG) (1996-1999)
LANCIA DELTA II (836) 1.8 i.e. 16V (836AQ) (1996-1999)
LANCIA KAPPA (838A) 2.0 20V (838AA1AA) (1994-2001)
LANCIA KAPPA (838A) 2.4 20V (838AC1AA, 838AC11A) (1994-2001)
LANCIA KAPPA (838A) 2.4 T.DS (838AE1AA, 838AH1AA) (1994-2001)
LANCIA KAPPA (838A) 2.0 20V (838AG1AA, 838AG11A) (1996-2001)
LANCIA KAPPA SW (838B) 2.0 16V Turbo (838BB1AA) (1996-2001)
LANCIA KAPPA SW (838B) 2.4 T.DS (838BH1AA) (1996-2001)
LANCIA LYBRA (839AX) 1.8 16V (839AXB1A, 839AXG1A) (1999-2005)
LANCIA LYBRA SW (839BX) 1.9 JTD (839BXD1A) (1999-2000)
LANCIA LYBRA SW (839BX) 1.8 16V (839BXB1A, 839BXG1A) (1999-2005)
