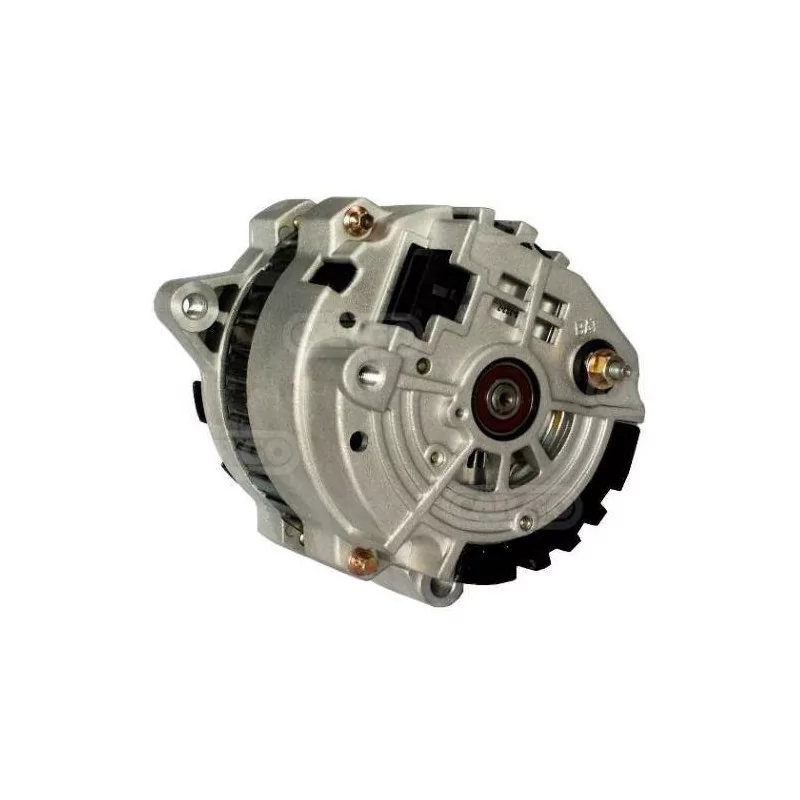

Alternator 14 Volts 100/105 A, Krauf ALD0942, Lucas LRA01678

FEATURES:

Electrical Specifications

Voltage     14
Amp     100/105

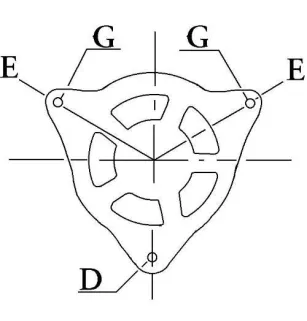

Physical Specifications

D     Hole Diameter     10.00
G     Leg Hole Diameter     8.00
B     Arm Width     51.00
E     Tensioner Angle     10
E     Adjustable Support Belt/Pos. 2     50
H     Pulley dia.     62.00
A     Dist. pulley     72.50
i     Pulley grooves     5
j     Radius     77.50
j     Radius 2     77.50
j     Radius 3     77.50
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL24
G     Holes for Adjustable support belt 2     M8
R     Total length mm     167.00

More information

Fan     Ef
Pulley     Serpentine Pulley
Notes     Replaces: CS130.

REPLACES THE FOLLOWING PART NUMBERS:

Waiglobal: 1-1635-31DR, 1-1636-31DR, 1-1636-32DR, 1-1665-31DR, 1-1666-31DR, 20-136-31, 20-150-30, 20-150-31, 20-150-31-1, 20-150-32.
Delco: 10463043, 10463114, 10463175, 10463264, 10479815, 10479963, 1101165, 1101191, 1101311, 1101461, 1101605, 1105697, 1105701, DRZ0128, DRZ0156.
Wps: 7933N.
Krauf: ALD0942.
Motorherz: ALD0942WA.
Lucas: LRA01678.
HC-Parts: UA942IR.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

CHEVROLET BERETTA купе (1_37) 2.2 (1991-1996)
CHEVROLET CORSICA (1_69) 2.2 (1991-1996)
