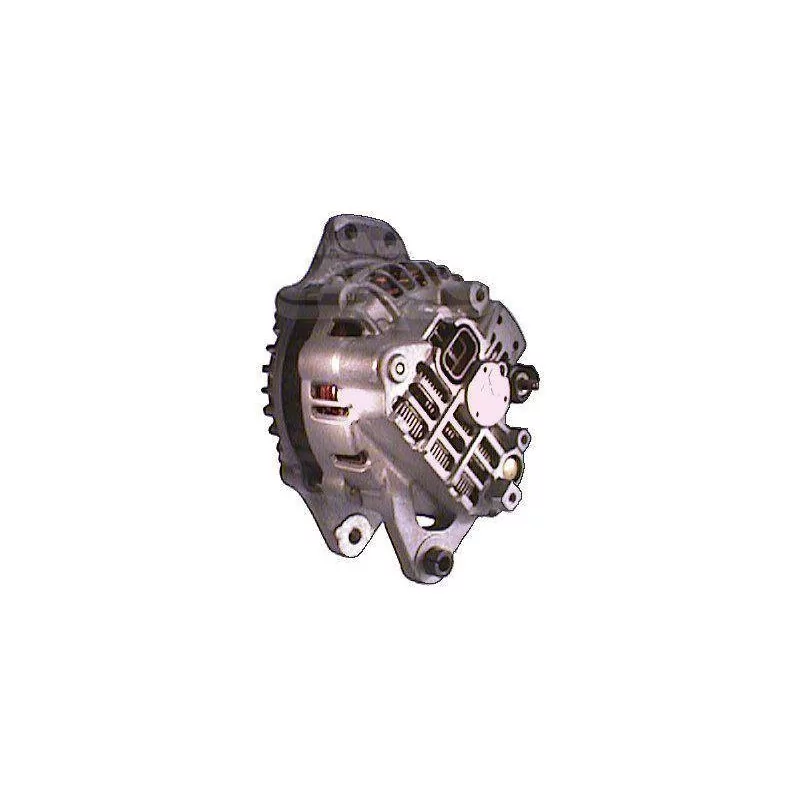

Alternator 14 Volt 90 A, Bosch 0986080690, Valeo 210648, Hyundai 37300-36015, Kia 37300-36030, Mitsubishi A003T08293

FEATURES:

Electrical Specifications
Voltage     14
Amp     90

Physical Specifications
D     Hole Diameter     8.60
G     Leg Hole Diameter     M8
B     Arm Width     13.15
E     Tensioner Dough Angle     60
E     Adjustable Support Belt/Pos. 2     3
C     Dist. between support     55.15
H     Pulley dia.     62.00
A     Dist. pulley     37.90
i     Pulley grooves     5
j     Radius     88.80
j     Radius 2     87.25
j     Radius 3     87.70
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL07
G     Holes for Adjustable support belt 2     M8
R     Total length mm     158.90

More information
Fan    If
Pulley     Serpentine pulley
Regulator type     Ir
Vacuum pump     Without

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0986080690.
Prestolite: 20130190.
Valeo: 210648, 440401, 600043, 600047, AB190097, AB190205, AB190386, TA0002655982.
Messmer: 210648.
Hyundai: 37300-36015, 37300-36030, 37300-43850, 37300-43860, 3730036015, 3730036030.
Kia: 37300-36030, 37300-43850, 37300-43860.
Magneti marelli: 944390605020.
Mitsubishi: A003T08293, A3T08293, A3T08376, A3T45794, A3TA1391, A3TA1391A, AB190205, MD149751, MD168988, MD168989, MD189014, MD354793.
Krauf: ALM0870, ALM8870, ALM9869.
Mando: BN3730036030, TA0002655982, TA000A50201.
Delco: DRA0685, DRA3188.
HC-Parts: JA870IR.
Lucas: LRA01387, LRA01772, LRA03267.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

HYUNDAI GALLOPER II (JK-01) 3.0 V6 (1998-2003)
HYUNDAI GRACE (P) 2.4 (1993-2000)
HYUNDAI GRACE (P) 2.4 (1997-2000)
HYUNDAI H 200 2.4 (1997-2004)
HYUNDAI H 200 2.4 4WD (1998-2004)
HYUNDAI H 200 2.4 4WD (2001-2004)
HYUNDAI H 200 2.4 (2000-2004)
HYUNDAI H-1 / STAREX 2.4 (1997-2004)
HYUNDAI H-1 / STAREX 2.4 4WD (1998-2004)
HYUNDAI H-1 / STAREX 2.4 4WD (2001-2004)
HYUNDAI H-1 2.4 (2000-2004)
HYUNDAI H100 (P) 2.4 (1993-2000)
HYUNDAI H100 (P) 2.4 (1997-2000)
MITSUBISHI DELICA (P0_W, P1_W, P2_W) 2.4 4WD (P24W, P24V) (1986-1990)
MITSUBISHI GALLOPER (JK-01) 3.0 V6 (1998-2003)
MITSUBISHI L 300 (P0_W, P1_W, P2_W) 2.4 4WD (P24W, P24V) (1986-1990)
MITSUBISHI MONTERO II (V3_W, V2_W, V4_W) 3.0 V6 4WD (V23W, V43W, V23C) (1990-1995)
MITSUBISHI MONTERO   (V2_W, V4_W) 3.0 V6 (V23W, v43W, V23C) (1990-1995)
MITSUBISHI PAJERO II (V3_W, V2_W, V4_W) 3.0 V6 4WD (V23W, V43W, V23C) (1990-1995)
MITSUBISHI PAJERO II Canvas Top (V2_W, V4_W) 3.0 V6 (V23W, v43W, V23C) (1990-1995)
