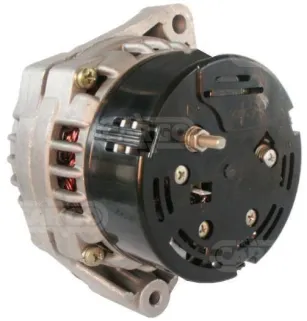

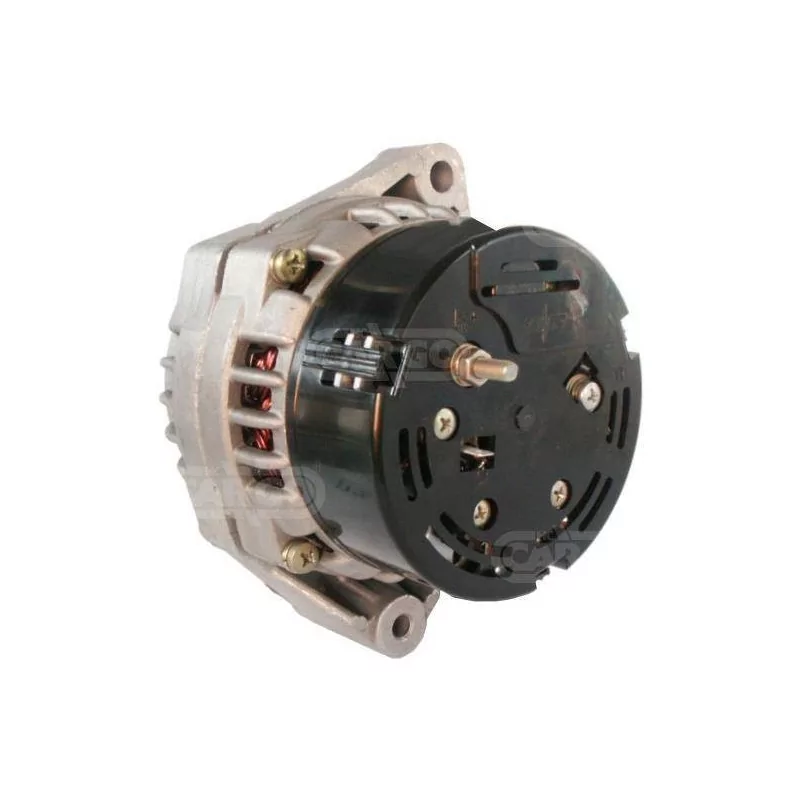

Alternator 14 Volt 80 A, Iskra 11.201.440, Lada 1118-3701000, Krauf ALI1347, Delco DRA3855

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     80

Physical Specifications
D     Hole Diameter     8.20
G     Lug Hole Diameter     8.20
B     Arm Width     56.00
E     Tensioner Angle     55
H     Pulley Dia.     54.80
A     Dist. pulley     92.00
i     Pulley grooves     6
j     Radius     86.00
j     Radius 2     86.00
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL_NA
R     Total length mm     187.00
Manufactured     Mahle Letrika

More information
Fan     If
Pulley     Serpentine pulley
Regulator type   Ir
Vacuum pump     Without

REPLACES THE FOLLOWING PART NUMBERS:

Iskra: 11.201.440, A0440, AAK5102, IA0440.
Lada: 1118-3701000, 2110-3701010, 21103701010, 2112-37001010, 2112-3701010, 2112-3701010-08, 2112-70101008, 21120-3701010-09, 21120370101009, 21123701010, 4302.3771, 5102.3771, 51023771, 9402-3701000, 9402.3701-14, 9402.3702, 9402.3703, 9402.3704, 9402.3705, 9402.3706, LadaSamara.
Elmot: 456.020.0, 9773701.
Krauf: ALI1347, ALR1347.
Motorherz: ALR1347RB, ALR1347WA, CA1347IRCN.
HC-Parts: CA1347IR.
Delco: DRA3855.
Lucas: LRA01505.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

LADA 110 1.5 (1995-...)
LADA 110 1.5 16V (1995-...)
LADA 111 1.5 16V (1995-...)
LADA 111 1.5 (1996-...)
LADA 111 1.6 (2005-...)
LADA 111 1.6 (2006-...)
LADA 112 1.5 (1995-...)
LADA 112 1.5 16V (1995-...)
LADA 112 1.6 (2005-...)
LADA 112 1.6 (2006-...)
LADA CARLOTA (2108, 2109, 2115) 1500 (1995-...)
LADA CARLOTA (2108, 2109, 2115) 1.5 (1996-...)
LADA DIVA (21099) 1500 (1994-...)
LADA SAMARA (2108, 2109) 1500 (1995-...)
LADA SAMARA (2108, 2109, 2115) 1500 (1995-...)
LADA SAMARA (2108, 2109, 2115) 1.5 (1996-...)
LADA SAMARA FORMA (21099) 1500 (1994-...)
