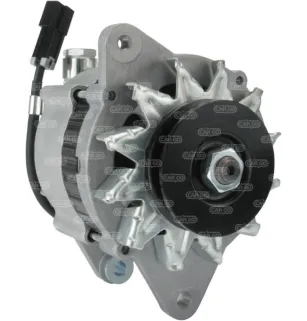

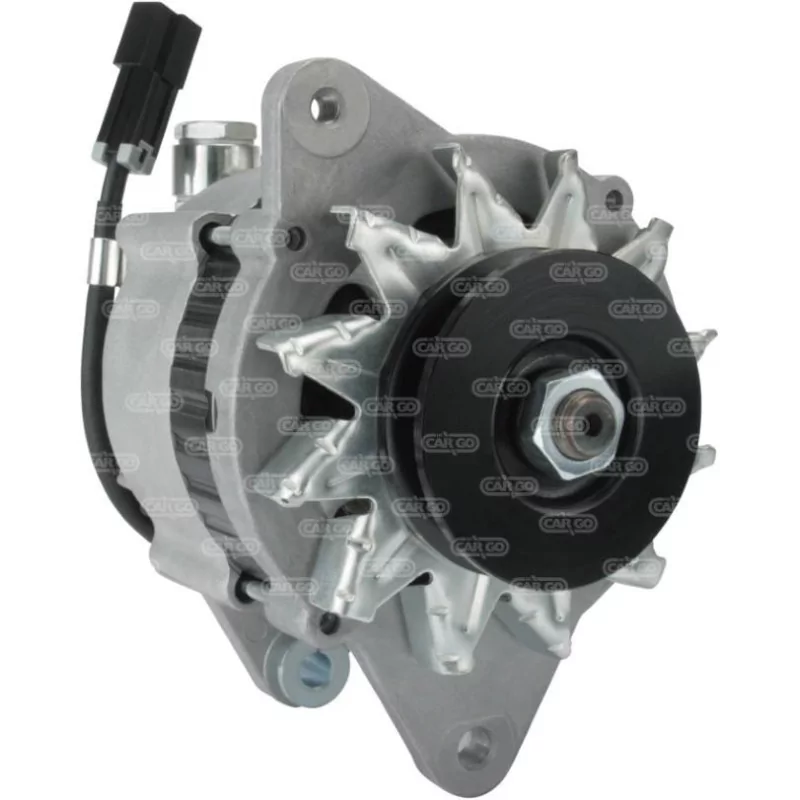

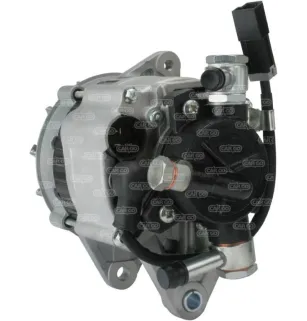

Alternator 14 Volt 70 A, Bosch 0986037811, Opel 1204062, Valeo 436724, Isuzu 894471-9964

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     70

Physical Specifications
D     Hole Diameter     10.50
G     Lug Hole Diameter     M8
B     Arm Width     13.15
E     Tensioner Angle     55
C     Dist. Between Brackets     82.00
H     Pulley Dia.     82.00
A     Dist. pulley     41.50
i     Pulley grooves     1
j     Radius     90.00
j     Radius 2     85.00
k     Position B +     Plug
n     Rotation     Cr
o     Regulator connector     PL32
R     Total length mm     219.00

More information
Fan     If
Pulley     Pulley
Regulator type     Ir
Vacuum pump     VP

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0986037811.
Opel: 1204062, 1204132, 6204058, 94471996.
Messmer: 210288, 210288R.
Valeo: 436724, TA000A62901, VA378.
Isuzu: 894471-9964, 8944719961, 8944719962, 8944719963, 8944719964, 8970447790.
General motors: 90542406, 97044779, R1030073.
Krauf: ALH0673.
Motorherz: ALH0673WA.
Delco: DRA3275, DRA3275N.
Iskra: IA9016.
HC-Parts: JA673IR.
Hitachi: LR17-0411, LR170411E, LR170-411, LR170-411A, LR170-411B, LR170-411C, LR170-411D, LR170-411E, LR170-411F, LR170-411P, LR170411, LR170411B, LR170411C, LR170411D, LR170411F.
Lucas: LRA00939, LRA939.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

OPEL CORSA A TR (91_, 92_, 96_, 97_) 1.5 D (1987-1992)
OPEL CORSA A TR (91_, 92_, 92_, 96_, 97_) 1.5 TD (1987-1993)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.5 D (1987-1993)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.5 TD (1988-1993)
OPEL CORSA A 1.5 D (1987-1989)
VAUXHALL NOVA 1.5 TD (1990-1993)
VAUXHALL NOVA 1.5 D (1987-1993)
VAUXHALL NOVA 1.5 TD (1990-1993)
VAUXHALL NOVAVAN 1.5 D (1991-1994)
