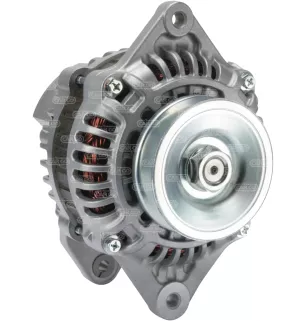

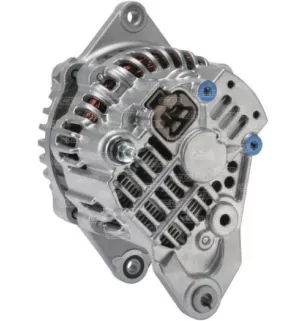

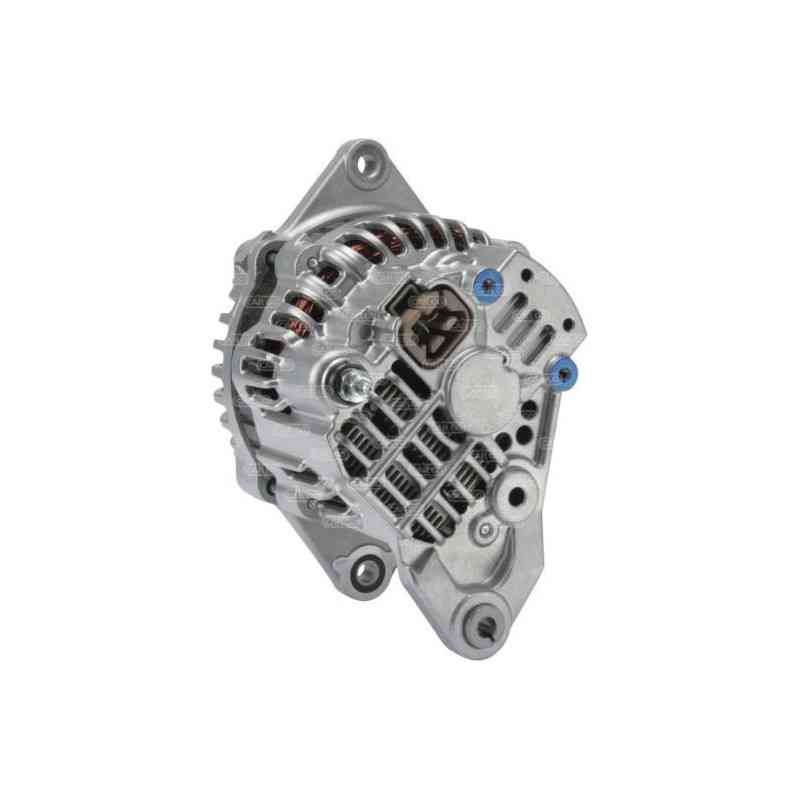

Altering 28V 30amp isuzu 8971822892, mitsubishi a002ta8383, a2ta8383

altering 28V 30amp isuzu 8971822892, Mitsubishi A002TA8383, A2TA8383

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 28
amp.     30

physical information
a dist. Pulley 44.50
B Arm width 12.80
C Dist. Between support 81.00
D Diameter of the hole 8.50
e Angle paste tensioner 60
g Diameter hole of the paw 8.50
h Poulie dia.     85.00
i Rainures of the pulley 1
J Radius 90.00
J Radius 2 85.00
K B + M5
k Position B + in min.     45

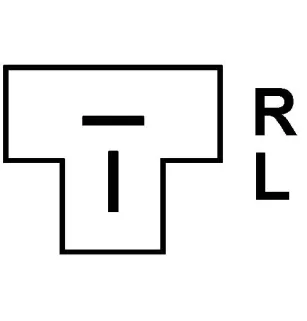

L D+ Plug size
n Rotation CW
o STAGE NO PL09
R Total length mm 161.00

Information Catalogs
Poulie P
type Ir
info Product BN

} replaces the following references:
8971822892 Isuzu
Mitsubishi
A2TA8383 Mitsubishi

Compatible with the following vehicles:
Kobelco, industry
