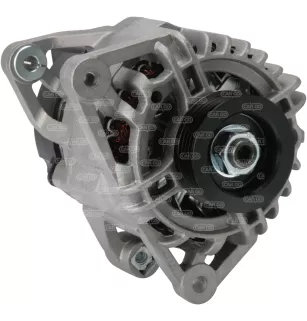

Altering 14V 80AMP DENSO 102211-8030, 102211-8031, Ford 1070804, 1097304, 1126052
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Characteristics:
Electric information
voltage 14
amp. 80
physical information
a dist. Pulley 34.00
B Arm width 13.80
C Dist. Between support 62.40
D Diameter of the hole 8.10
e angle paste tensioner 50
g Diameter hole of the paw 8.10
h Poulie dia. 48.50
I GRAINURES DE LA POULUL 6
J Radius 81.00
J Radius 2 85.00
K B + M6
k Position B + in min. 60
L D+ Plug size
n Rotation CW
o NO PL57 socket
R Total length mm 166.00
Information Catalogs
Pulley Serpentine Pulley
Type REGULATOR IR
Vacuum pump No
Info Product BN
for Ford, list
Replace the following references: {006 102211-8030 DENSO
102211-8031 DENSO
1070804 Ford
1097304 Ford
1126052 Ford
1215770 Ford
1301496 Ford} 1406099 Ford
63321678 Magneti Marelli
63341678 Magneti Marelli
63377409 Magneti Marelli
98AB10300DB Ford
98AB10300DC FORD
98AB10300D FORD
98AB10300DE FORD
98AB10300DF FORD
98AB10300DG FORD
98AB10300DH FORD
98AB10300DJ FORD
CA1483IR HC-PARTS} EGL1304 MOTORCRAFT
R98AB10300DE1 FORD
Compatible with the following vehicles:
Ford, light vehicle EU
lister, Marine
}
