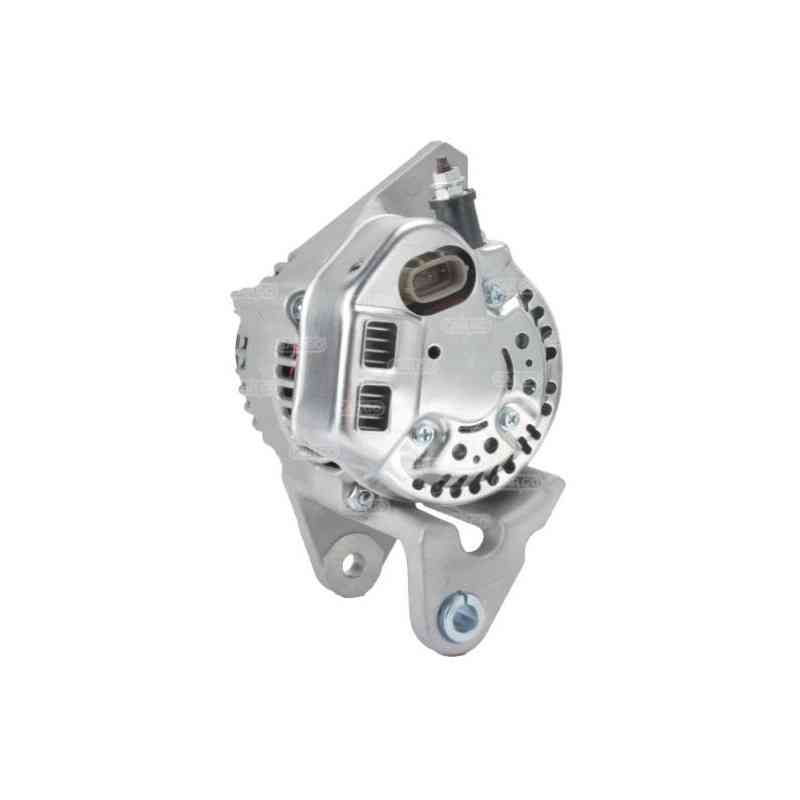

Altering 14V 55amp Caterpillar 0R9700, 144-9954, Denso 101211-2770, 101211-2771

Alterner 14V 55AMP Caterpillar 0R9700, 144-9954, DENSO 101211-2770, 101211-2771

• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     55

physical information
a dist. Pulley 43.00
B Arm width 12.00
C Dist. Between support 72.00
D Diameter of the hole 10.50
e Angle paste tensioner 53
g Diameter Trou de la Patte M8
H POULLIA DIA.     70.00
I GRAINURES DE LA POULUL 1
J Radius 88.00
J Radius 2 88.00
K B + M6
k Position B + in min.     5

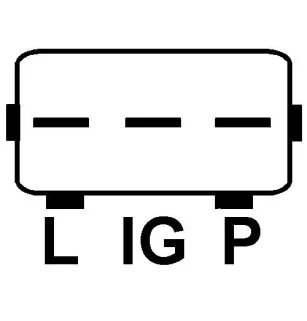

L D+ Plug size
n Rotation CW
o STAGE NO PL128
Q TAPE W PLUG
R Total length mm 152.00

Information Catalogs
Pulley P
Type REGULATOR IR

replaces the following references:
0R9700 Caterpillar
101211-2770 Denso} 101211-2771 DENSO
144-9954 Caterpillar

Compatible with the following vehicles:
Caterpillar, Miscellaneous
}
