Alternator 28V 55Amp lucas NAB903

110577

Alternator 28 V 55Amp lucas NAB903

€227.31
VAT included
€189.43 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

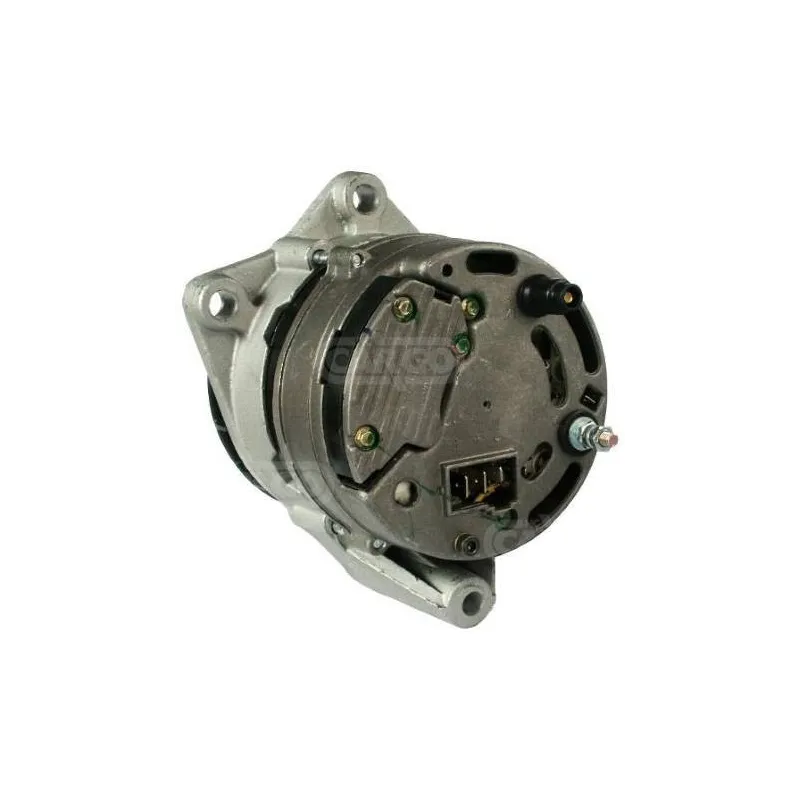

Alternator 28 V 55Amp lucas NAB903

  • BRAND: BOSCH
  • New Alternator
  • warranty: 2 years
  • Without Instructions
  • Quality Origin


FEATURES:

Electrical Information
Voltage 28
Amp. 55
Terminal W

Physical Information
At Dist. pulley 115.00
B Arm width 80.00
D Hole diameter 10.20
E Tensioner paste angle 50
E Tensioner paste angle 3 10
E Adjustable support belt/ pos . 2 60
G Leg hole diameter 10.30
G Holes for Adjustable Support Belt 2 10.30
G Leg hole diameter 3 10.30
H Pulley dia. 74.00
I Pulley Grooves 2
J Radius 84.00
J Radius 2 84.50
J Radius 3 85.00
J Radius 4 84.50
K B + M6
K Position B+ in min. 20
L D+ Size Socket
N Rotation CW
O Socket not PL22
Q Socket type W 6.30
R Total length mm 183.00

Information Catalogues
Pulley Double pulley
Regulator type Ir
Vacuum pump No
Product info Bn
Remarks With mounting bearing cover to the left and upper side of the motor .


REPLACES THE FOLLOWING REFERENCES:
NAB903 lucas

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Various, Marine

Product Details
110577
New

Data sheet

Tension
28 Volts
Ampérage
55A

Specific References

UPC
400000042114
EAN13
4000000042051
