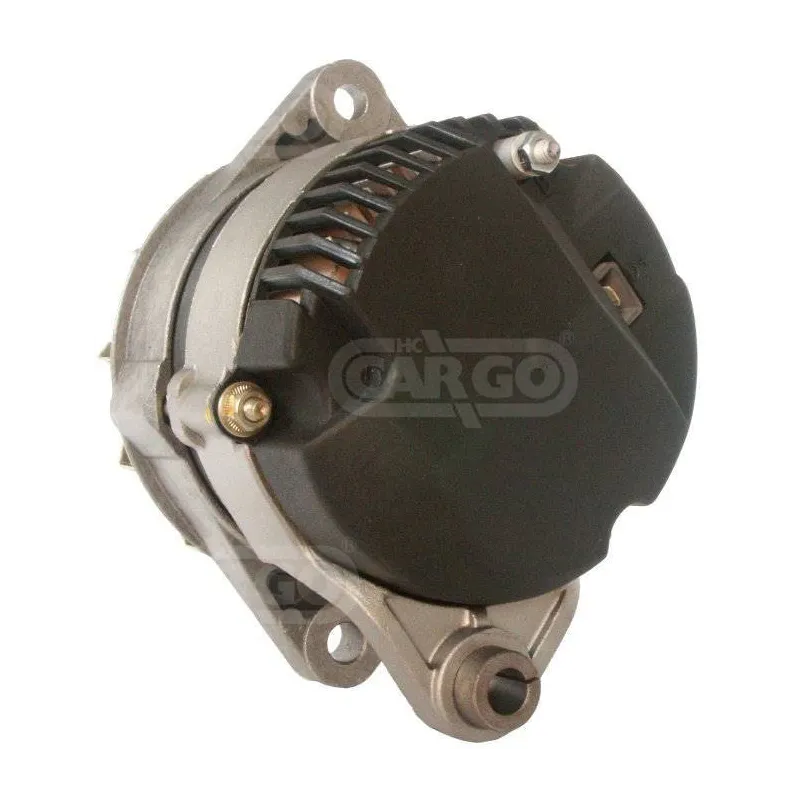

Alternator 14V 65Amp MAGIRUS-DEUTZ 0108447, Bosch 0120488250, 0120488251, 0120489018, 0120489136
  • Alternator 14V 65Amp MAGIRUS-DEUTZ 0108447, Bosch 0120488250, 0120488251, 0120489018, 0120489136
  • Alternator 14V 65Amp MAGIRUS-DEUTZ 0108447, Bosch 0120488250, 0120488251, 0120489018, 0120489136
  • Alternator 14V 65Amp MAGIRUS-DEUTZ 0108447, Bosch 0120488250, 0120488251, 0120489018, 0120489136
  • Alternator 14V 65Amp MAGIRUS-DEUTZ 0108447, Bosch 0120488250, 0120488251, 0120489018, 0120489136

Alternator 14V 65Amp MAGIRUS-DEUTZ 0108447, Bosch 0120488250, 0120488251, 0120489018, 0120489136

111686

Alternator 14V 65Amp MAGIRUS-DEUTZ 0108447, Bosch 0120488250, 0120488251, 0120489018, 0120489136

€164.09
VAT included
€136.74 VAT excluded
LIVRAISON 24/48H
Quantity
EN STOCK - LIVRAISON 24/48H

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Alternator 14V 65Amp MAGIRUS-DEUTZ 0108447, Bosch 0120488250, 0120488251, 0120489018, 0120489136

  • BRAND: BOSCH
  • New Alternator
  • Warranty: 2 years
  • Without Deposit
  • Original Quality


CHARACTERISTICS:
Electrical Information
    Voltage     14
    Amp.      65

Physical Information
A     Pulley Dist.     49.50
B     Arm Width     17.00
C     Pulley Dist. between bracket     64.50
D     Hole diameter     12.50
E     Tensioner paste angle     60
G     Lug hole diameter     11.00
H     Pulley dia.     75.00
I     Pulley grooves     1
J     Radius     85.00
J     Radius 2     81.00
K     B +     M6
K     B+ position in min.     55
L     D+ Size     6.30
N     Rotation     CW
R     Total length mm     166.50

Information Catalogues
    Pulley     Pulley
    Fan     Ef
    Regulator type     Ir
    Vacuum pump     No
    Product info     Bn
    For     Alfa Romeo, Fiat, Lancia

REPLACES THE FOLLOWING REFERENCES:
0108447     MAGIRUS-DEUTZ
0120488250     Bosch
0120488251     Bosch
0120489018     Bosch
0120489136     Bosch
0120489152     Bosch
0120489153     Bosch
0120489212     Bosch
0120489219     Bosch
0120489338     Bosch
038522068A     Chrysler
063320049000     Mako
11.201.327     Iskra
11.201.328     Iskra
Iskra
111674     HC-Cargo
13830     Efel
1516569R     DAF
19025060     Remy (delco)
2.9439.290.0     Deutz-fahr
2.9439.480.0     Deutz-fahr
2.9439.490.0     Deutz-fahr
2565994     Valeo
2565995     Valeo
2929510     Valeo
2943925     Fiat


COMPATIBLE WITH THE FOLLOWING VEHICLES:
Alfa Romeo, EU Light Vehicle
Fiat, EU Light Vehicle
Fiat, Agricultural Machinery
Iveco, Marine
Iveco, Industrial Engine
Lamborghini, Agricultural Machinery
Lancia,EU light vehicle
Laverda, Agricultural machinery

Product Details
111686
New

Data sheet

Tension
14 Volts
Ampérage
65A

Specific References

UPC
400000052151
EAN13
4000000052098
