Altering 28V 35amp Caterpillar 0R3653, 6T1395, Motorola USA 110-285, Motorola 110-313

altering 28V 35amp Caterpillar 0R3653, 6T1395, Motorola USA 110-285, Motorola 110-313

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 28
amp.     35
isolated mass yes

Physical information

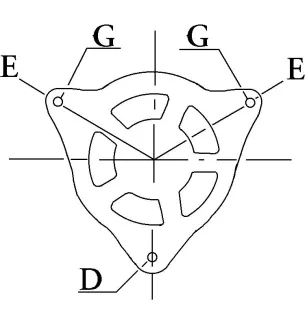

B Warm width 27.20
D Diameter of the hole 13.00
e Angle Pasteur Tensioner 55
e Angle Paste tensioner 3 5
e Adjustable support belt/ POS. 2 60
g Diameter Trou de la Patte 5/16 "UNC
G TROS for adjustable support belt 2 5/16" UNC
g Diameter Trou de la Patte 3 5/16 "UNC
J Radius 90.00
J Radius 2 83.00

J Radius 4 83.00
K B + 1/4 "UNC
k position B + in min.     40
n Rotation CW
q Type taken W 3/16 "UNF
R Total length mm 186.00
A connection wire: (self-excitation) Yes

Information Catalogs
Pulley without
type Ir
Vacuum pump no
info Product Bn
for Caterpillar

replaces the following references: }} 0R3653 CATERPILLAR
110-285 Motorola USA
110-313 Motorola
6T1395 Caterpillar
7T2095 Caterpillar
8HC302F MOTOROLOS
8HC3025F Motorola USA

Compatible with the following vehicles:
Caterpillar, Marine
Caterpillar, Industrial engine
Caterpillar, Miscellaneous}
