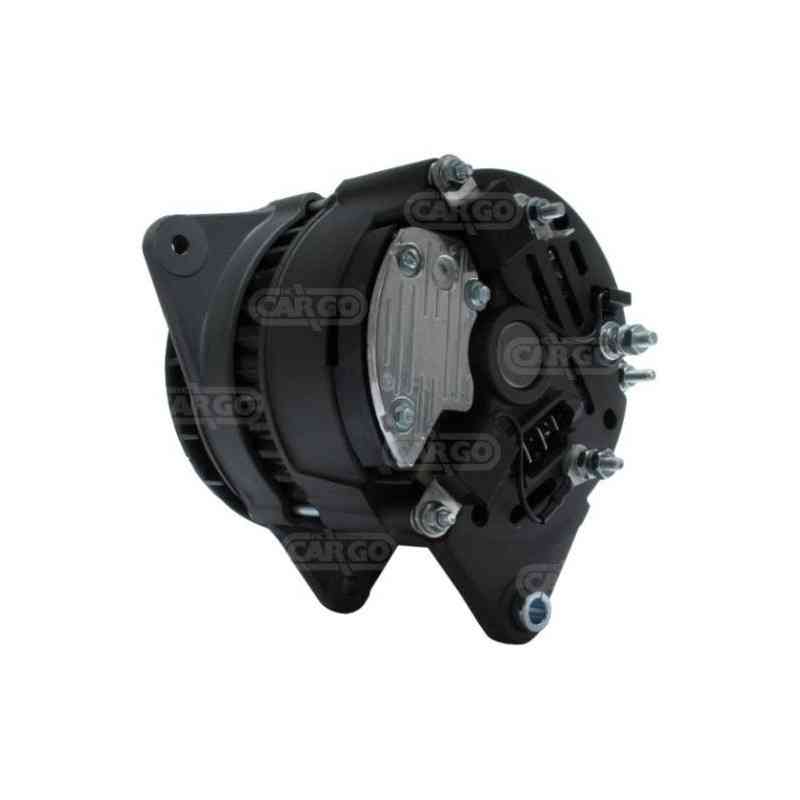

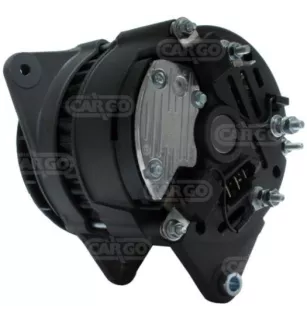

Altering 14V 80amp List 362-02349, Lucas 47020054, 47020056, 47020058

Altering 14v 80amp List 362-02349, Lucas 47020054, 47020056, 47020058

• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     80
isolated mass yes
terminal W

physical information
a dist. Pulley 45.50
B Arm width 11.20
C Dist. Between support 83.00
D Diameter of the hole 8.20
e Angle paste tensioner 10
g Diameter hole of the paw M8
h Poulie dia.     82.20
i Rainures of the pulley 1
J Radius 86.00
J Radius 2 86.00

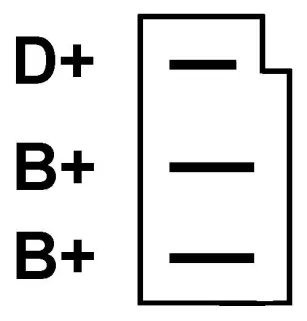

K B + M6
k position B + in min.     14
L D+ Plug size
n Rotation CW
o STAGE NO PL22
Q Type taken W M5-6.30
R Total length mm 169.00

Information Catalogs
Poulie P
type Ir
Vacuum pump no
info Product Bn
for sailor

replaces the following references: }} 362-02349 List
47020054 Lucas
47020056 Lucas
47020058 Lucas
47020062 Lucas
47020063 Lucas
47020069 Lucas
510-823 Motorola

Compatible with the following vehicles:
lister, Marine
lister, industrial engine

}
