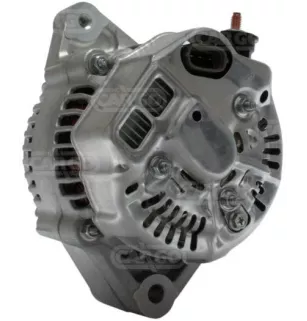

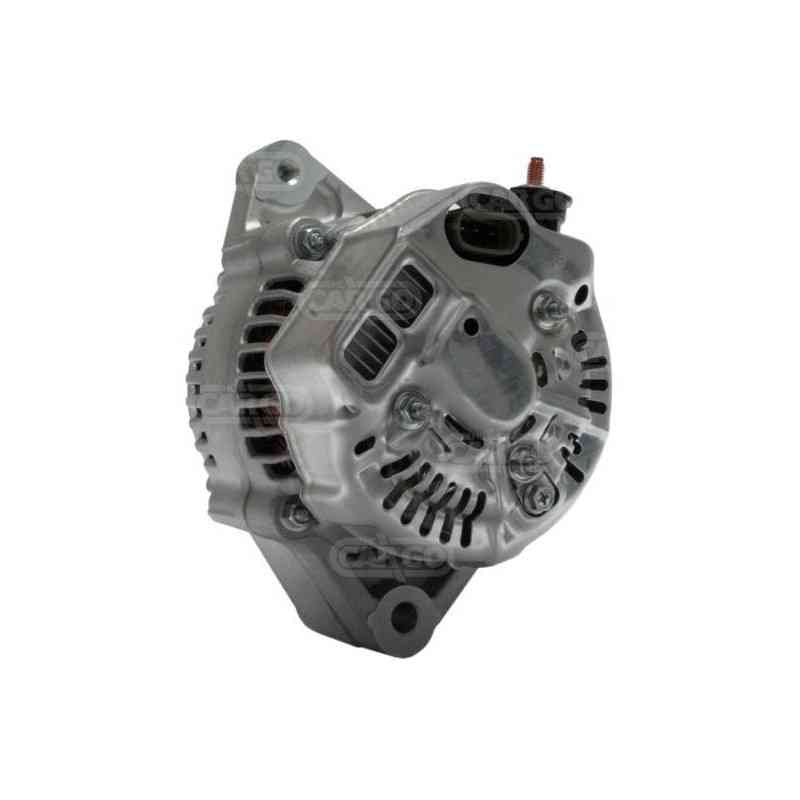

Altering 14V 80Amp Denso 100211-9940, 100211-9941, 101211-9940, Yanmar 119773-77200, Toyota 27060-73020

Altering 14V 80AMP DENSO 100211-9940, 100211-9941, 101211-9940, Yanmar 119773-77200, Toyota 27060-73020

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     80

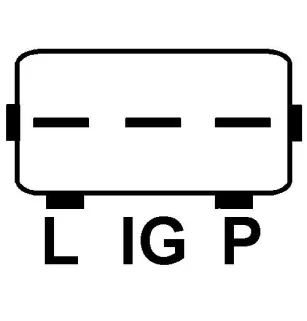

terminal W

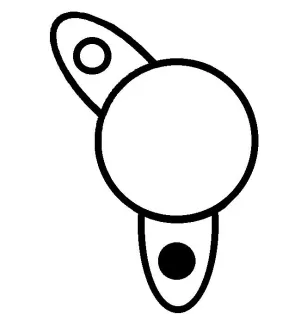

physical information
a dist. Pulley 92.00
B Arm width 57.50
D Diameter of the hole 10.10
e Angle paste tensioner 4
g Diameter Trou de la Patte M8
H POULULI DIA.     79.10
i Rainures of the pulley 2
J Radius 80.00
J Radius 2 84.00
K B + M6
k Position B + in min.     3
L D+ Plug size
n Rotation CW
o Set no pl128
R Total length mm 167.00

Information Catalogs
Pulley DP
Type REGULATOR IR
Vacuum pump no
info Product BN
for Yanmar Marin

replaces the following references: } 100211-9940 DENSO
100211-9941 DENSO
101211-9940 DENSO
119773-77200 Yanmar
27060-73020 TOYOTA
{005
compatible with the following vehicles :
Yanmar, Marine
