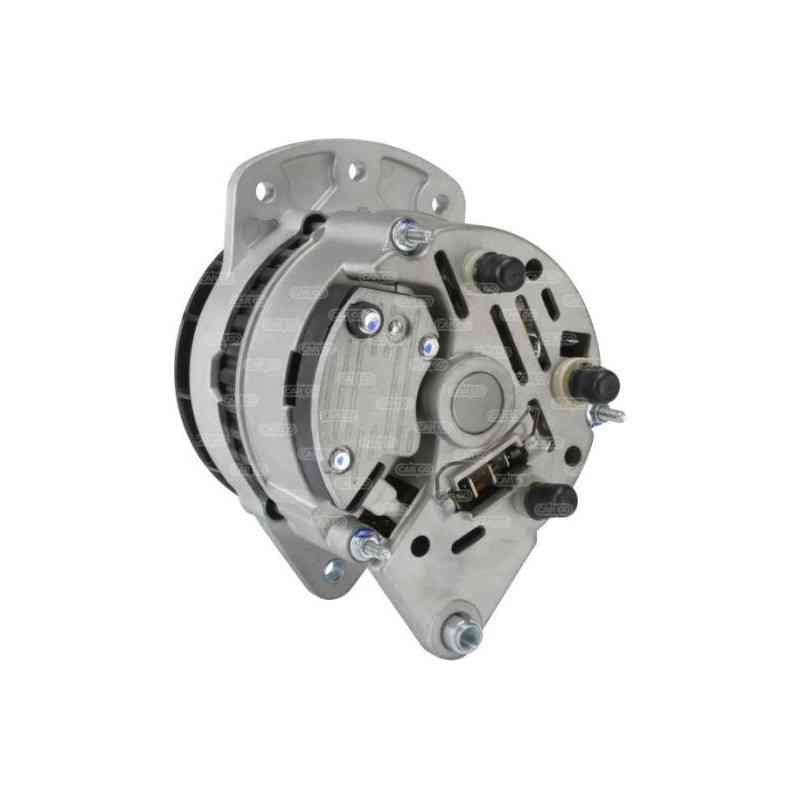

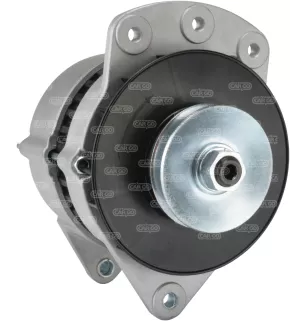

Altering 14V 70AMP HC-Parts CA1550ir, Lucas NAB900M

Altering 14v 70amp HC-Parts Ca1550ir, Lucas Nab900m

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     70
isolated mass yes
terminal W

physical information

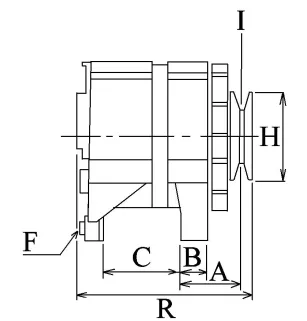

a dist. Pulley 34.00
B Arm width 10.90
C Dist. Between support 84.00

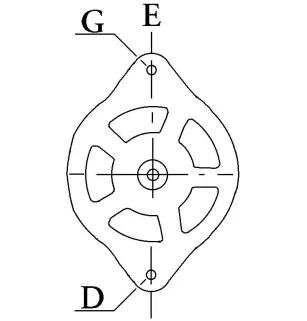

D Diameter of the hole 8.10

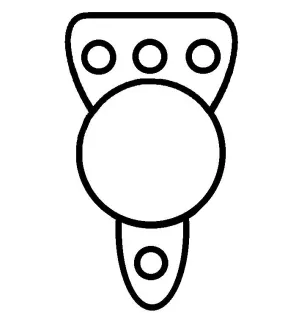

e Angle paste tensioner 55
e Angle paste tensioner 3 5
e Adjustable support belt/ pos. 2 60
g Diameter Trou de la Patte 8.00
H Pulley Dia.     68.00
I GRAINURES OF THE PULL 1

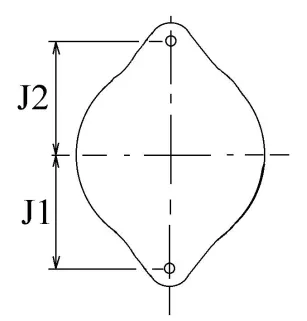

J Radius 87.00
J Radius 2 82.00

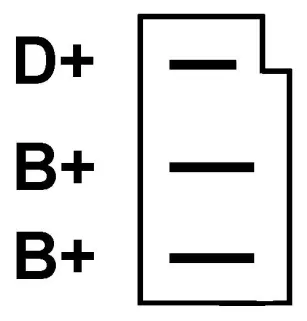

K B + M6
k Position B + in min.     14
L D+ Plug size
n Rotation CW/CCW
o Set no pl22
Q Type taken W M5
R Total length mm 175.00

Information Catalogs
Pulley Pulley
Type REGULATOR IR
Vacuum pump no
Info Product BN
for sailor
NOTEMENTS DISTURAL OF THE PULUL is OK from 34.00 to 43.00 mm.

replaces the following references:
ca1550ir hc-parts
nab900m Lucas

Compatible with the following vehicles:
}
