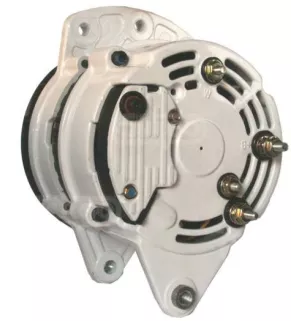

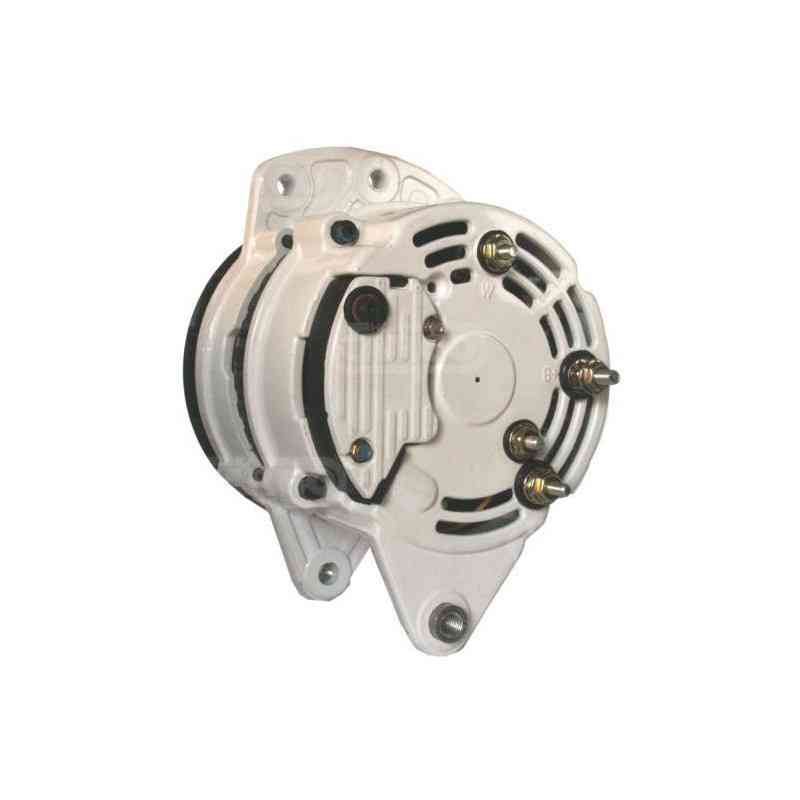

12V 90Aamp Lucas Nab9000m altering

altering 12v 90amp Lucas Nab9000m

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     90
isolated mass yes
terminal W

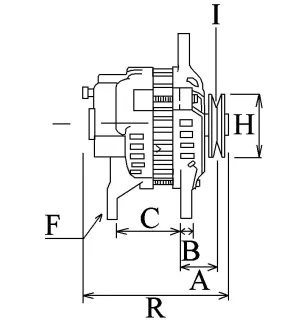

physical information
a dist. Pulley 44.50
B Arm width 13.50
C Dist. Between support 82.20

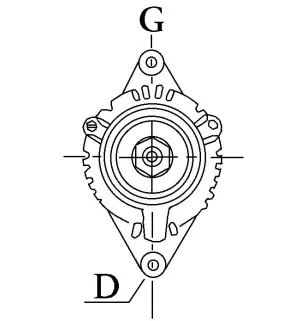

D Diameter of the hole 8.10
e Angle paste tensioner 55
e Angle paste tensioner 3 5
e Adjustable support belt/ pos. 2 60
g Diameter Trou de la Patte 8.20
E Trice for adjustable support belt 2 8.20
g Diameter Trou de la Patte 3 8.20
H POULUL DIA.     71.50
i Rainures of the pulley 1

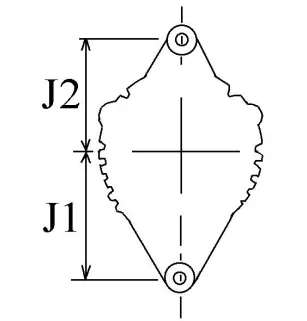

j Radius 90.00
J Radius 2 86.00
J Radius 3 86.00
J Radius 4 86.00
K B + M6
k position B + min.     15
L D+ Size M5-6.30
n Rotation CW/CCW
Q Type taken W M5-6.30
R Total length mm 181.00

Information Catalogs
Pulley P
Type REGULATOR IR
Vacuum pump no
for sailor
remarks for the right and on the left of assembly.

replaces the following references:
nab9000m Lucas

Compatible with the following vehicles:
Various, Marine
