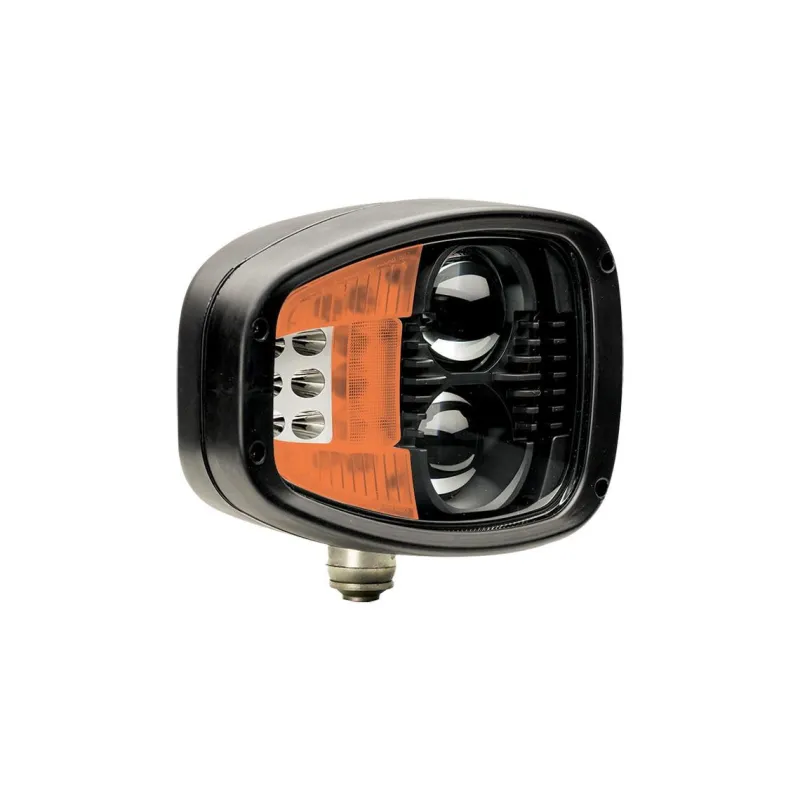

3800 LED - SAE LED driving light 12/24V VIGNAL D14324

• BRAND VIGNAL ORIGIN
• 2-year warranty

3800 LED - SAE LED driving light 12/24V VIGNAL D14324

CHARACTERISTICS:

Brand ABL
Sector of activity Trucks and heavy goods vehicles, Trailers and semi-trailers, Utility vehicles, Priority vehicles, Handling and forklifts, Construction and construction machinery, Forestry
Voltage 12 - 24V
LED source
Amperage 2.0 AMP (low beam)/ 2.1 AMP (high beam) at 24V/ 0.2 AMP (indicator)/ 0.05 AMP (position) at 24V
6-way DT connector, PG11 compression joint
Lens material Tempered glass
Length 240 mm
Depth 127 mm
Height 164 mm
EMC ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 CLASS 3
SAE SAE
IP protection IP68 - IP69K
Operating temperatures -40°C to +85°C
Consumption 48 W (low beam)/ 50W (high beam) @24V/ 3.8W (turn signal)/1.2W (position)@24V
Mounting Pedestal, Suspended, Rear Pivot
Color Temperature 6000°K
Load Dump 36V CONTINUOUS/ 58V 300ms/ 1800V 50µs
Polarity Protected against voltage reversals
Electronic Thermal Management Protected against overheating
Salt Spray Test ISO 9227
Vibration Resistance 15 Grms, from 24Hz to 2000Hz
Shock Resistance 60G
Warranty 30,000 operating hours or 5 years
