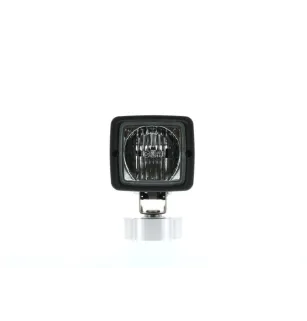

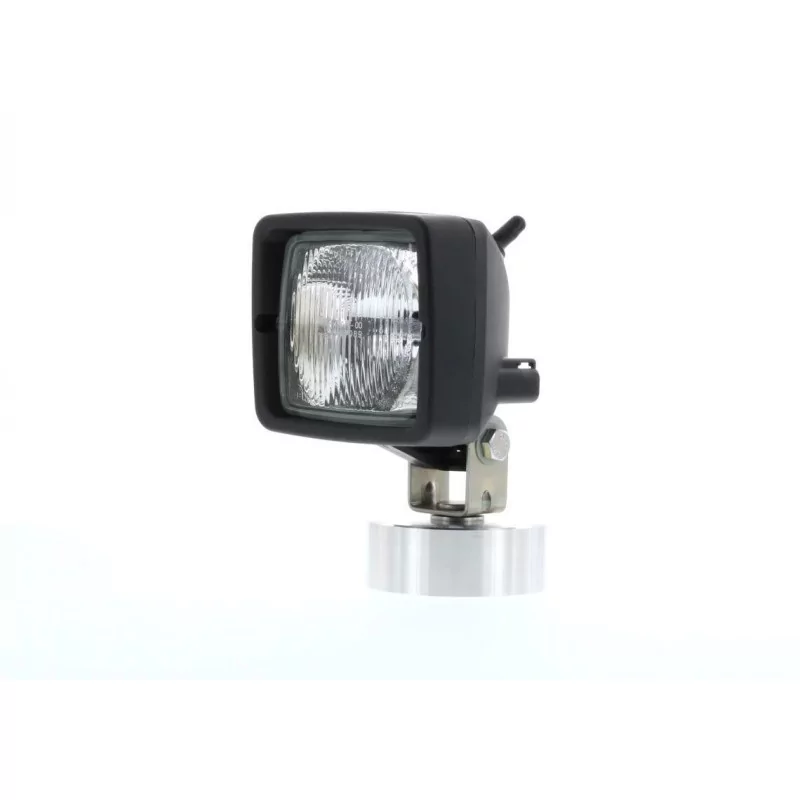

S H3 REVERSE - Service light Halogen 12V, 24V, 36V, 48V, 80V Approved ADR vignal D12390

• BRAND VIGNAL ORIGIN
• 2-year warranty

S H3 REVERSE - Service light Halogen 12V, 24V, 36V, 48V, 80V Approved ADR vignal D12390

CHARACTERISTICS:

Brand ABL
Sector of activity Trucks and Heavy Goods Vehicles, Trailers and Semi-trailers, Utility Vehicles, Priority Vehicles, Handling and Forklifts, Construction and Construction machinery, Forestry
R23 approved reversing light beam
Product Type Halogen service headlight
Voltage 12V, 24V, 36V, 48V, 80V
HALOGEN source
H3/70W max lamp
Amperage 2.92 AMP at 24V (for 24V 70W bulb)
AMP, DT connector
Cabochon material Tempered glass
Housing material Fiber reinforced plastic
Shape Square

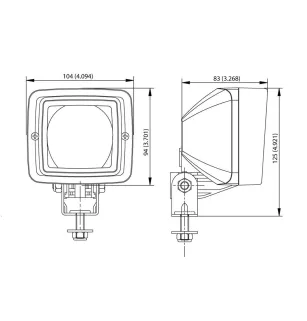

Length 104 mm
Depth 83 mm
Height 125 mm
ADR ADR
ECE ECE R23
Operating temperatures -40°C to +85°C
Pedestal Mount, Suspended
Salt Spray Test ISO 9227
Detail reference D12390 (crystal, tempered glass, DT 2 ways, switch, R23)
