SHD BLUE/RED LED - Safety lighting Blue / Red Signal LED 12/100V
  • SHD BLUE/RED LED - Safety lighting Blue / Red Signal LED 12/100V
  • SHD BLUE/RED LED - Safety lighting Blue / Red Signal LED 12/100V
  • SHD BLUE/RED LED - Safety lighting Blue / Red Signal LED 12/100V

SHD BLUE/RED LED - Safety lighting Blue / Red Signal LED 12/100V

D14249
Vignal

SHD BLUE/RED LED - Safety lighting Blue / Red Signal LED 12/100V

€176.71
VAT included
€147.26 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)





  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • BRAND VIGNAL ORIGIN
  • 2-year warranty

SHD BLUE/RED LED - Blue / Red safety lighting LED signal 12/100V

CHARACTERISTICS:


Brand ABL
Sector of activity Handling and forklifts
Light beam Spot
Product type Work light Signal
Voltage 12/100V
Source LED
Amperage 0.2 AMP at 24V
Connector AMP 2 ways, DT 2 ways
Material Cabochon Polycarbonate
Shape Square

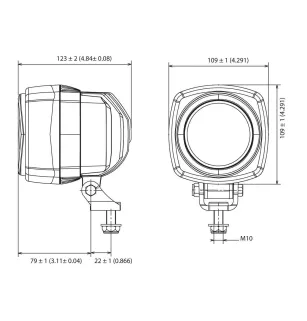

Length 109 mm
Depth 123 mm
Height 109 mm
EMC ISO 12985 - CISPR25
IP protection IP68 - IP69K
Operating temperatures -40°C to +85°C
Consumption 5W
Weight 1 Kg
Mounting Pedestal, Suspended, Side mounting
Load Dump 130V CONTINUOUS/ 200V 100ms/ 1800V 50µs
Polarity No polarity
Salt Spray Test ISO 9227
Vibration Resistance 10 Grms, from 24Hz to 2000Hz
Warranty 30,000 operating hours or 5 years
Detail reference D14249 (blue spot, DT 2 ways); D14250 (blue spot, AMP); D14653 (red spot, DT 2 ways)

Product Details
D14249
New

Specific References

UPC
400000050256
EAN13
4000000050193
