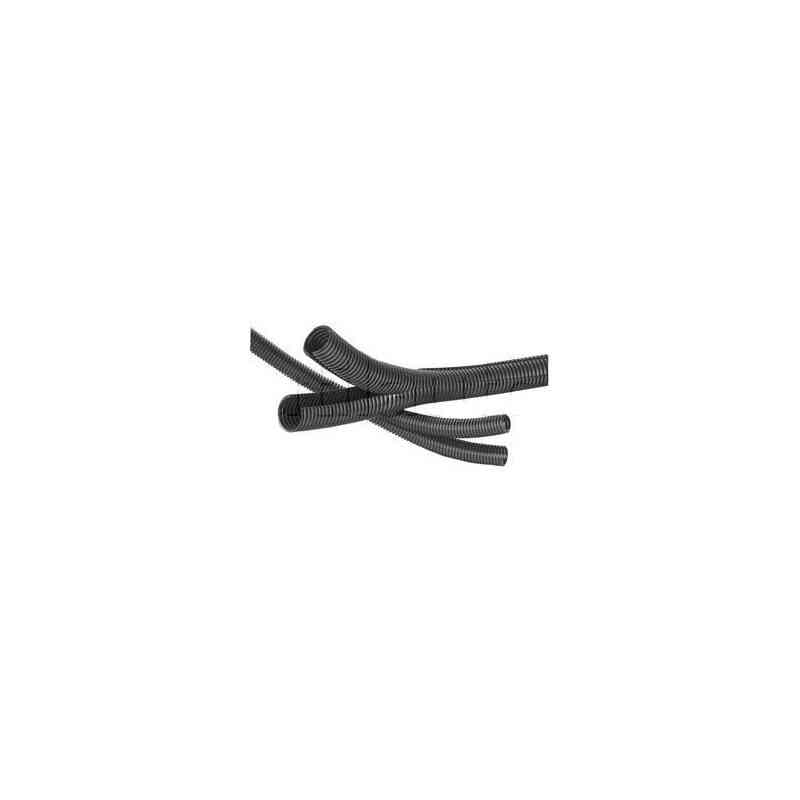

Double hull split sheath - Polyamide 6 - CO -Flex - (PACOF) Diam.20x50

ringed sheath split half-cord with closing, very flexible. IP 50 waterproofing. Easy insertion of wires without risk of aggression (wide slit).
high mechanical protection of wires. Filling rate 100%. The wires can no longer get out of the sheath even when it is bent to the maximum. These ducts open and close at will in the direction of the length and are therefore ideal for subsequent interventions or repairs in the construction and maintenance of all types of vehicles, machines or industrial installations.

Applications: heavy goods vehicles, public works, machine constructions.

Characteristics: Polyamide material 6. Fuels resistance, mineral oils, fats, alkalis and usual solvents.

Use temperature: -40 ° C to + 105 ° C continuous ( + 160 ° C in point).

without halogen

Characteristics: Section (NW): 20
Inner diameter in mm: 19.1
Roll length (meter): 50
Catalog page: 6.7
