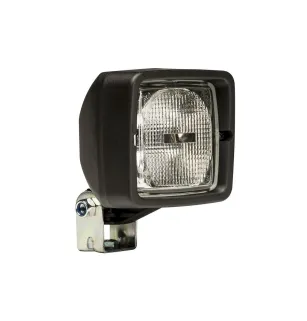

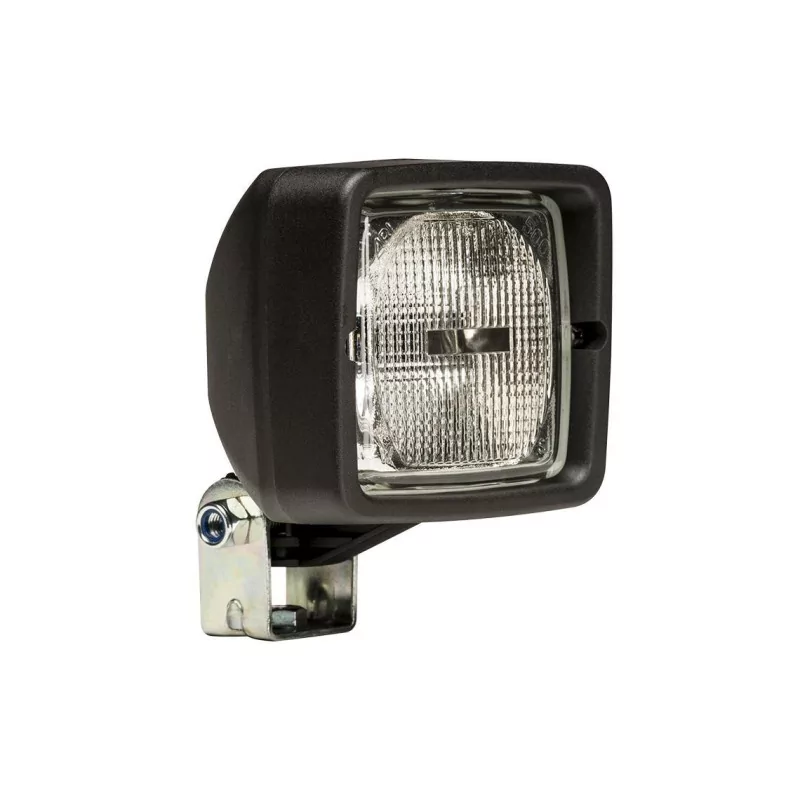

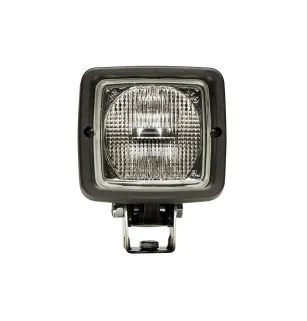

S H3 - Halogen work light 12V, 24V, 36V, 48V, 80V VIGNAL SH3RANGE_FL

• BRAND VIGNAL ORIGIN
• 2-year warranty

S H3 - Halogen work light 12V, 24V, 36V, 48V, 80V VIGNAL SH3RANGE_FL

CHARACTERISTICS:

Brand ABL
Sector of activity Trucks and heavy goods vehicles, Trailers and semi-trailers, Utility vehicles, Priority vehicles, Handling and forklifts, Construction and Construction machinery, Forestry
Flood light beam
Product type Halogen work light
Voltage 12V, 24V, 36V, 48V, 80V
Source HALOGEN
Lamp H3/70W max
Color Amber, red, blue, crystal
Amperage 2.92 AMP at 24V
Connector AMP, DT, grommet, Compression seal, cable compression seal PG7/PG9
Material Cabochon Tempered glass
Housing material Fiber reinforced plastic
Shape Square

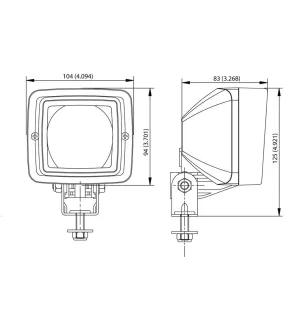

Length 104 mm
Depth 83 mm
Height 94 mm
IP protection IP54 (grommet) - IP66 - IP69K (connectors)
Operating Temperatures -40°C to +85°C
Mounting Pedestal, Pendant, Side Mount, Flush Mount
Salt Spray Test ISO 9227
