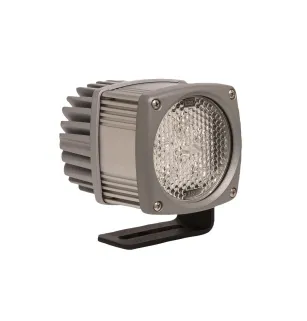

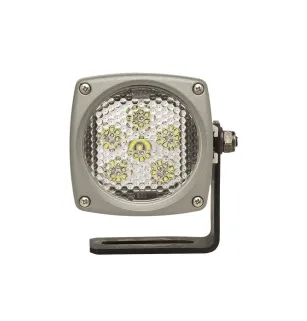

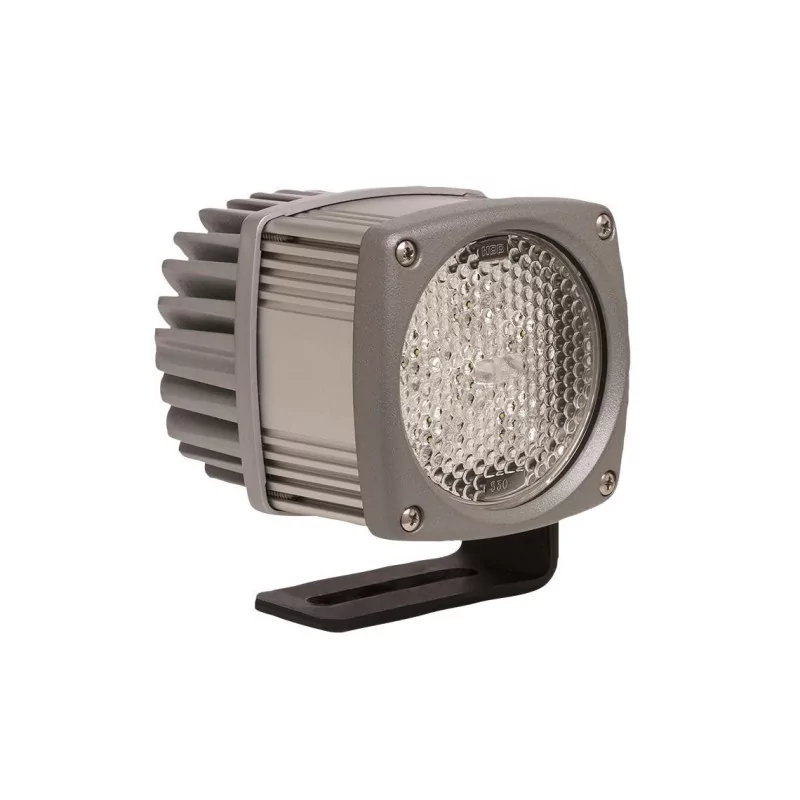

MY LED 2700 - My LED work light 12/24V VIGNAL D14163

• BRAND VIGNAL ORIGIN
• 2-year warranty

MY LED 2700 - My LED work light 12/24V VIGNAL D14163

CHARACTERISTICS:

Brand ABL
Sector of activity Trailers and Semi-trailers, Utility vehicles, Priority vehicles, Mining, Construction and construction machinery, Forestry
Flood light beam
Product type My work light
Voltage 12 - 24V
Source LED
Amperage 1.5 AMP at 24V
Connector AMP 2 ways, DT 2 ways
Number of Poles 6
Material Cabochon Tempered glass
Shape Square

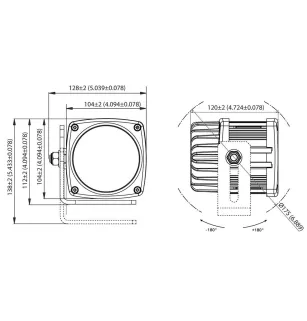

Length 104 mm
Depth 120 mm
Height 112 mm
EMC ISO 14982 - CISPR25
IP protection IP68 - IP69K
Operating temperatures -40°C to +60°C
Consumption 36W
Weight 1 Kg
Effective Lumen 2700 Lumen
Mounting Pedestal, Pendant, Side Mount
Color Temperature 6000°K
Load Dump 36V CONTINUOUS/ 72V 100ms/ 1800V 50µs
Polarity Reverse Voltage Protected
Electronic Thermal Management Built-in thermal protection
Salt Spray Test ISO 9227
Vibration Resistance 10 Grms, from 24Hz to 2000Hz
Warranty 30,000 operating hours or 5 years
