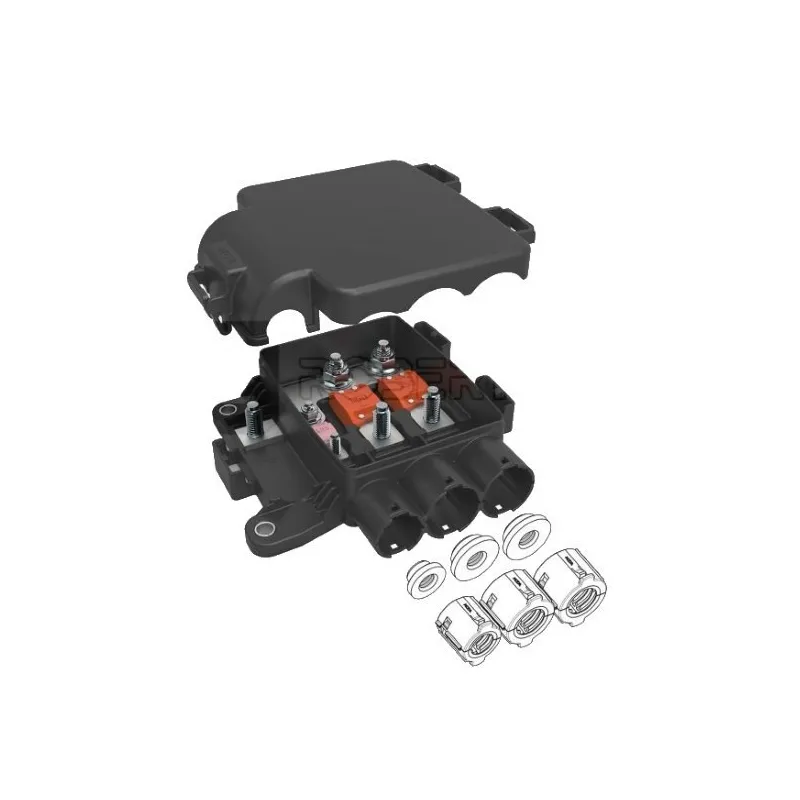

Electrical protection box + distribution for 1 MIDI fuse + 2 MEGA fuses
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
With outlets for corrugated conduit
Supplied without fuses
L 133 x W 142.5 x H 37 mm
Connection: M8 rod
Fixing: 3 holes ø 7 mm
Closed corrugated conduit to be ordered separately:
- For connecting MIDI fuses
116604 : nominal ø 4.5 mm - external ø 7.1 mm - ø internal 5.0 mm
116608 : nominal ø 7.5 mm - external ø 9.9mm - internal ø 6.9 mm
116609 : nominal ø 10 mm - external ø 12.7mm - internal ø 10.1 mm
- For connecting MEGA fuses
116611 : nominal ø 12 mm - external ø 15.6 mm - internal ø 12 mm
116613 : nominal ø 13 mm - external ø 15.8 mm - internal ø 12.9 mm
Catalog Page: S17-120
Reference: 116609
Reference: 185514
Electrical protection box + distribution for 1 MIDI fuse + 2 MEGA fuses
