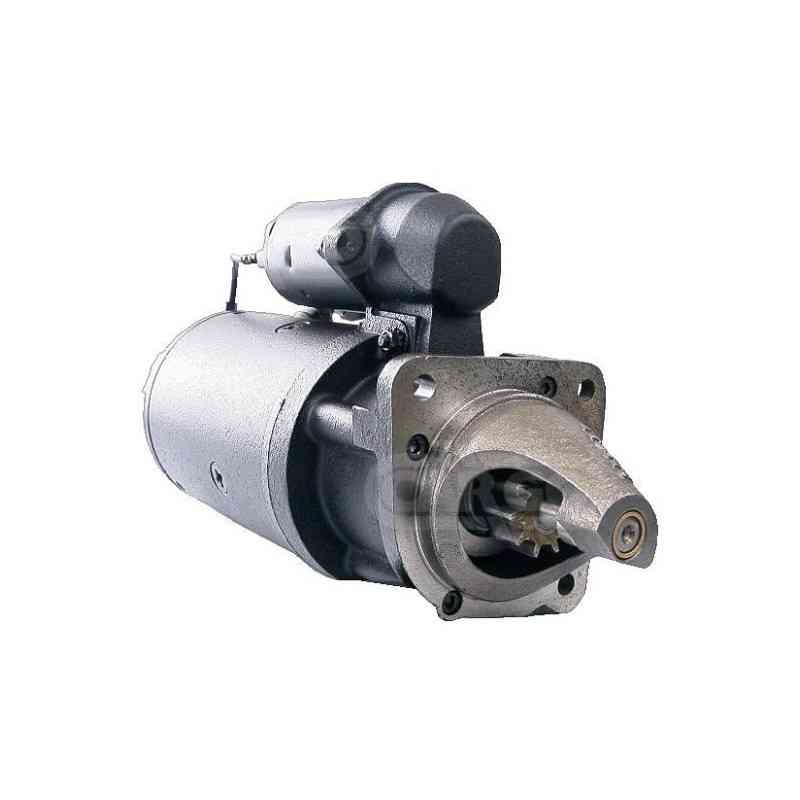

Starter 24V 5.5kw / 10 CAV teeth 1321916, 1321F916, 1321G916, 1327470, 1327471

starter 24v 5.5kw / 10 Dent CAV 1321916, 1321F916, 1321G916, 1327470, 1327471

• Brand: Bosch
• new starter
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
Voltage 24
KW 5.5
isolated mass Ou os

Dette 10
P Rotation CW
n Type Crown DD

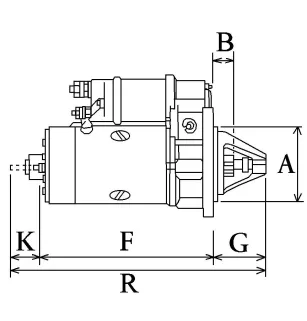

a flask assembly 89.00
I B+ M10
No. Fixing holes 3 (0)
b Banom launcher 30.50

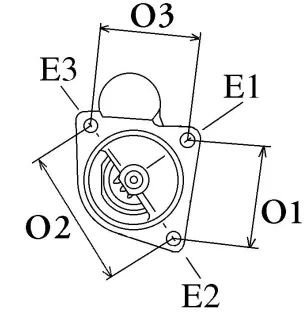

e mounting hole 1 mm 10.70
e mounting hole 2 mm 10.70
e assembly hole 3 10.70
F Distance/rear 298.00
g DISTRIBUTION/GISTER 76.50
J BORNE 15A M5
M Mounting support non
o distance mm 127.00
o Distance 2 90.00
o distance 3 90.00
R Total length mm 374.50
Source Prestolite

Information Catalogs
Type steel launcher
info Product Bn/Oe} Waterproof to water no
sealed oil yes

replaces the following references:
1321916 CAV
1321F916 CAV
1321G916 CAV} 1327470 CAV
1327471 CAV
1327480 CAV
1327590 CAV
1327591 CAV
1327620 CAV
1327621 CAV
13270A470 CAV
1327A471 CAV
1327A481 CAV
1327A591 CAV
1327A620 CAV
1327A621 CAV
1327a680 CAV
132781 CAV
132F916 CAV
859422 BUTEC
859432 BUTEC
870655 BUTEC
870663 BUTEC
CA4524-112 CAV} CA45F24-112 CAV
CA45G24-112 CAV
CS808 HC-PARTS
lNS4524/4 BUTEC
LNS4524/7 BUTEC
MS4/406 BUTEC
MS4-406 BUTEC
S11524-20 CAV
S11524-20X CAV
S11524-23 CAV
S11524-23X CAV
S11524-7 CAV
S11524-
S11524-8 CAV
S115A24-20 CAV
S115A24-23 CAV
S115A24-29 CAV
S115A24-7 CAV
S115A24-

Compatible with the following vehicles:
}} komatsu, elevator cart
perkins, industrial engine
