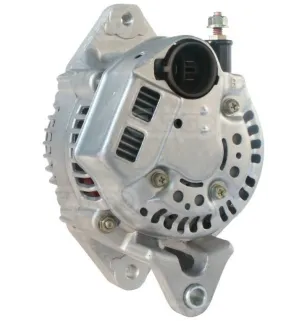

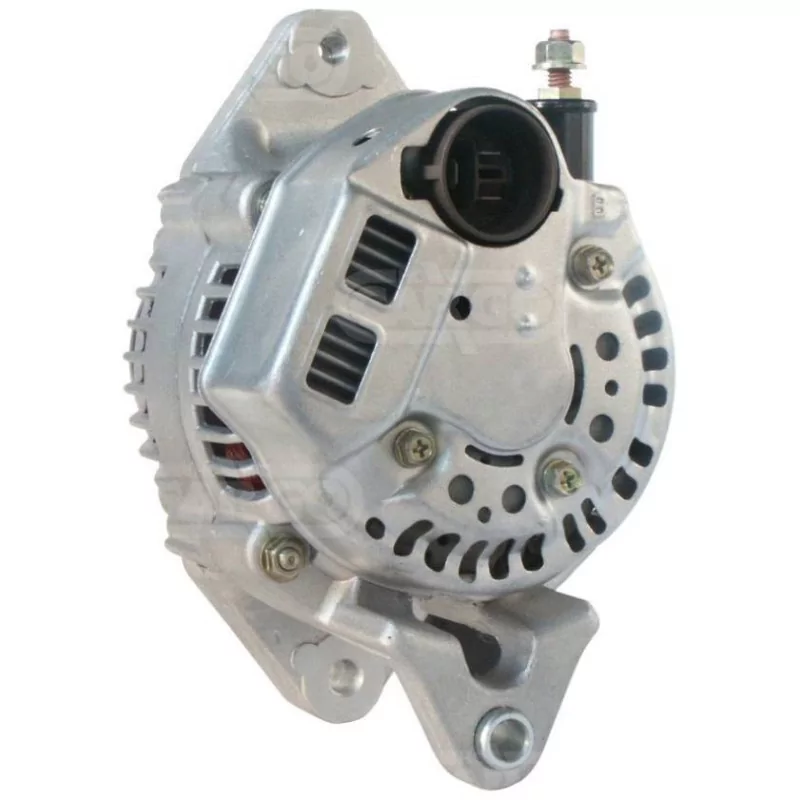

Alternator 14 Volts 50 A, Denso 100211-6930, Toyota 27060-23061-71, Krauf ALN1170
  • Alternator 14 Volts 50 A, Denso 100211-6930, Toyota 27060-23061-71, Krauf ALN1170
  • Alternator 14 Volts 50 A, Denso 100211-6930, Toyota 27060-23061-71, Krauf ALN1170
  • Alternator 14 Volts 50 A, Denso 100211-6930, Toyota 27060-23061-71, Krauf ALN1170
  • Alternator 14 Volts 50 A, Denso 100211-6930, Toyota 27060-23061-71, Krauf ALN1170

Alternator 14V 50Amp Denso 100211-6930, 100211-6931, 100211-6960, 100211-6961

111018

Alternator 14V 50Amp Denso 100211-6930, 100211-6931, 100211-6960, 100211-6961

€190.88
VAT included
€159.06 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Alternator 14V 50Amp Denso 100211-6930, 100211-6931, 100211-6960, 100211-6961

  • BRAND: BOSCH
  • New Alternator
  • warranty: 2 years
  • Without Deposit
  • Original Quality


CHARACTERISTICS:
Electrical Information
    Voltage     14
    Amp.      50

Physical Information
A     Pulley Dist.     44.00
B     Arm Width     20.00
C     Pulley Dist. between bracket     67.00
D     Hole diameter     8.50
E     Tensioner paste angle     60
G     Lug hole diameter     M8
H     Pulley dia.     74.25
I     Pulley grooves     1
J     Radius     78.00
J     Radius 2     78.00
K     B +     M6
K     B+ position in min.     3
L     D+ Size     Plug
N     Rotation     CW
O     Plug no     PL12
R     Total length mm     156.50

Information Catalogues
    Pulley     Pulley
    Fan     If
    Regulator type     Ir
    Vacuum pump     No
    Product info     Bn
    For     Toyota

REPLACES THE FOLLOWING PART NO.
100211-6961     Denso
100211-6970     Denso
100211-6971     Denso
27060-76305     Toyota
27060-78305     Toyota
27060-78305-71     Toyota
27070-23001-71     Toyota
JA1170IR     HC-PARTS

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Toyota, Forklift

Product Details
111018
New

Data sheet

Tension
14 Volts
Ampérage
50A

Specific References

UPC
400000043999
EAN13
4000000043935
