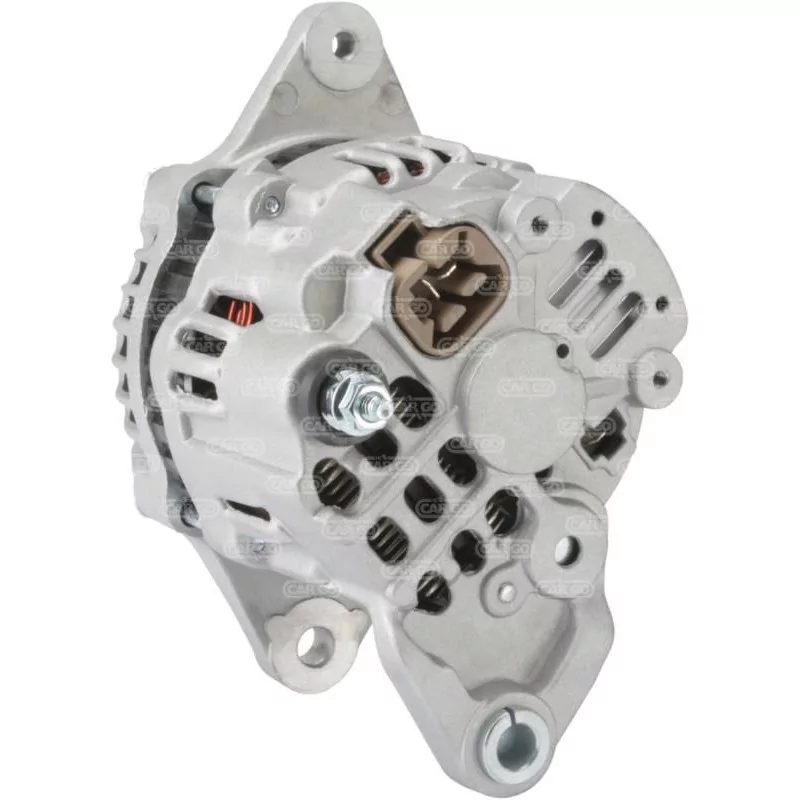

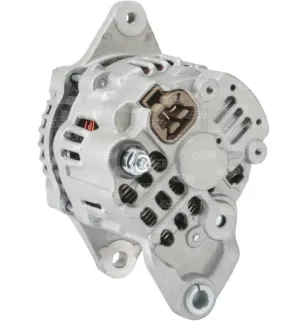

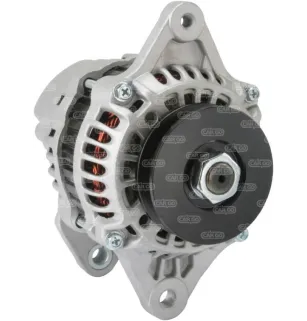

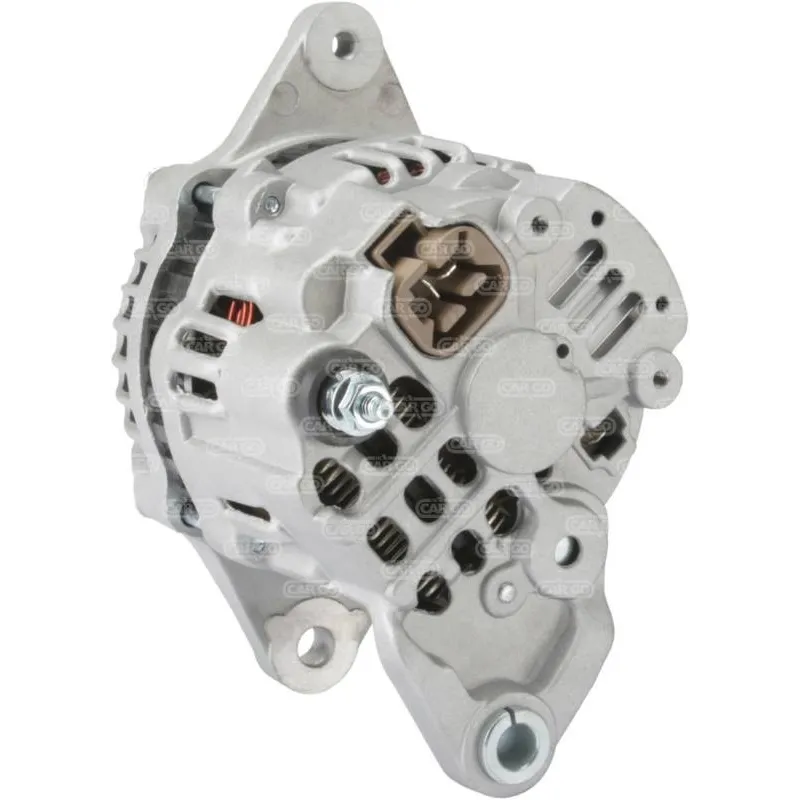

Alternator 14V 40Amp Toyota 00591-33580-81, 00591-55973-81, Yale 1500145-04, 2690027-70
  • Alternator 14V 40Amp Toyota 00591-33580-81, 00591-55973-81, Yale 1500145-04, 2690027-70
  • Alternator 14V 40Amp Toyota 00591-33580-81, 00591-55973-81, Yale 1500145-04, 2690027-70
  • Alternator 14V 40Amp Toyota 00591-33580-81, 00591-55973-81, Yale 1500145-04, 2690027-70
  • Alternator 14V 40Amp Toyota 00591-33580-81, 00591-55973-81, Yale 1500145-04, 2690027-70

Alternator 14V 40Amp Toyota 00591-33580-81, 00591-55973-81, Yale 1500145-04, 2690027-70

111495

Alternator 14V 40Amp Toyota 00591-33580-81, 00591-55973-81, Yale 1500145-04, 2690027-70

€176.88
VAT included
€147.40 VAT excluded
LIVRAISON 24/48H
Quantity
EN STOCK - LIVRAISON 24/48H

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Alternator 14V 40Amp Toyota 00591-33580-81, 00591-55973-81, Yale 1500145-04, 2690027-70

  • BRAND: BOSCH
  • New Alternator
  • Warranty: 2 years
  • No Deposit
  • Original Quality


CHARACTERISTICS:
Electrical Information
    Voltage     14
    Amp.     40
    Terminal     W

Physical Information
A     Pulley Dist.     42.00
B     Arm Width     13.00
C     Pulley Dist. between bracket 81.50
D Hole diameter 10.00
E Tensioner bracket angle 60
G Hole diameter of bracket M8
H Pulley dia. 74.00
I Pulley grooves 1
J Radius 77.00
J Radius 2 77.00
K B + M6 K B+ position in min. 45
N     Rotation     CW
O     Plug no     PL09
R     Total length mm     161.00

Information Catalogues
    Pulley     Pulley
    Regulator type     Ir
    Vacuum pump     No
    Product info     Bn
    For     Hyster, Sumitomo, Yale

REPLACES THE FOLLOWING PART NUMBERS:
00591-33580-81    Toyota
00591-55973-81    Toyota
1500145-04    Yale
2690027-70    Yale    5059605-60    Yale
5059765-79    Yale
5800009-90    Yale
8000456-00    Yale
9019488-01    Yale
A007T03277     Mitsubishi
A007T03277A     Mitsubishi
A7T03277     Mitsubishi
A7T03277A     Mitsubishi
LRA002043     lucas
S5SN-18-300     Mazda
S5SN-18-300A     Mazda

FITS THE FOLLOWING VEHICLES:
Hyster, Forklift
Mitsubishi, Forklift
Sumitomo, Forklift
Yale, Forklift

Product Details
111495
New

Data sheet

Tension
14 Volts
Ampérage
40A

Specific References

UPC
400000051833
EAN13
4000000051770
