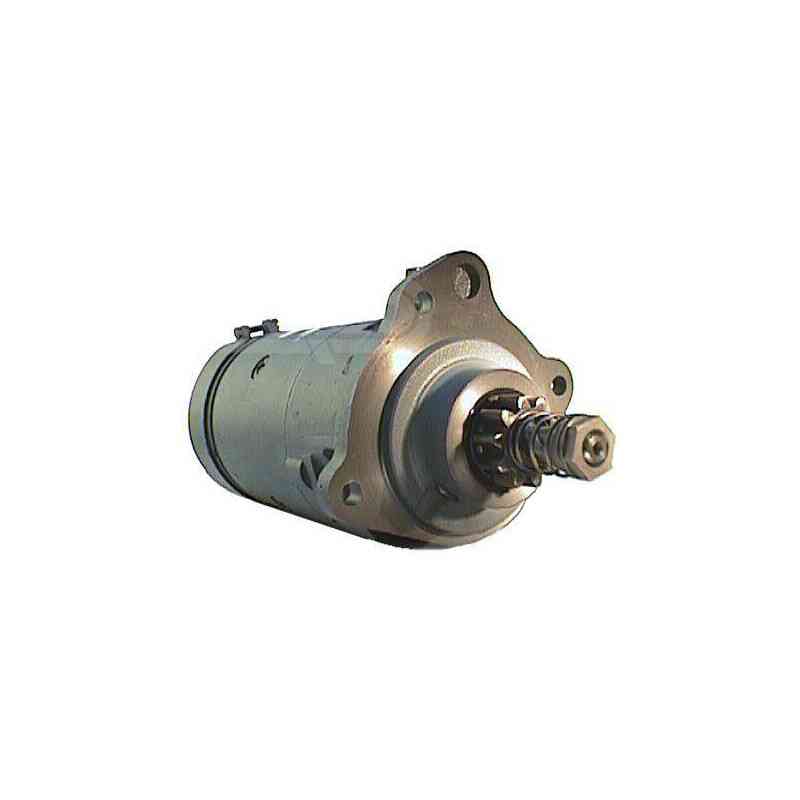

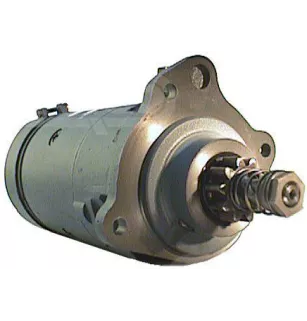

Starter 12 VOLTS 3.6KW ISKRA 11.130.320, HC-Cargo 111794, CAV 1320015, PERKINS 2873109, BUTEC 870644

starter 12Volts 3.6kw iskra 11.130.320, HC-Cargo 111794, CAV 1320015, PERKINS 2873109, BUTEC 870644

• new starter
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
Voltage 12
Kw 3.6

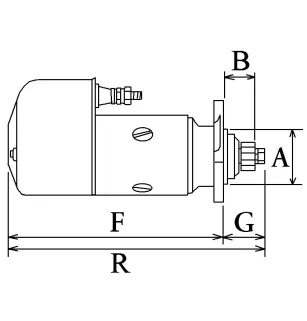

Physical information

}

P rotation CW

n Crown type DD

a flask mounting 89.00

i b+ m8

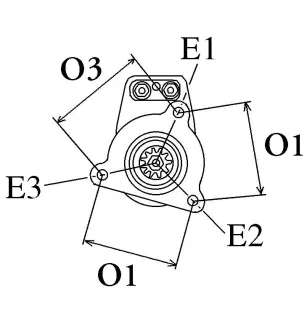

No. Fixing holes 3 (0)

B Distance launcher 48.50

e assembly hole 1 mm 10.00

e assembly hole 2 mm 10.00

e assembly hole 3 10.00

F Distance/rear 282.00

g Distance/before 90.00

M mounting support not

o distance mm 126.50

o distance 2 87.50

o distance 3 87.50

r total length mm 370.00

Source Prestolite

Information Catalog
Type steel launcher
info Product BN/OE {} Waterproof to the water NO
NO SCELLÉ OIL

replaces the following references:
11.320 ISKRA

11.139.038 ISKRA

111794 HC-Cargo

1320015 CAV

1320023 CAV

1320024 CAV

1320027 CAV

1320029 CAV

1320510 CAV

1320513 CAV

1320515 CAV

1320F022 CAV

1320F027 CAV

1320F028 CAV

1320F513 CAV

1320F515 CAV

1320F810 CAV

1320g027 CAV

1320g028 CAV

1320g515 CAV

1320:027 CAV

1327010 CAV

1327011 CAV

1327a010 CAV

1327A011 CAV

2873109 perkins

2873147 perkins

870644 Butec

azk5133 iskra

CA4512-2 CAV

CA4512-51 CAV

CA4512-51A CAV

CA45D12-2 CAV

CA45D12-2M CAV

CA45D12-51 CAV

CA45D12-Y51 CAV

CA45F12-2 CAV

CA45F12-51 CAV

CA45F12-51A CAV

CA45F12-Y2 CAV

CA45F12-Y51 CAV

CA45F12-Y81 CAV

CA45G12-2 CAV

CA45G12-2M CAV

CA45G12-51 CAV

CA45G12-51A CAV

CA45H12-2 CAV

CS694 HC-Parts

S115A12-1 CAV

Compatible with the following vehicles:
Caterpillar, Miscellaneous
Caterpillar, Agricultural machines
Dronningborg, Agricultural machines
hyster, Terk elevator
